Brain Bee Omni 800 Lite Emission Analyser

Brain Bee Emission Analysers - Everything Under Control

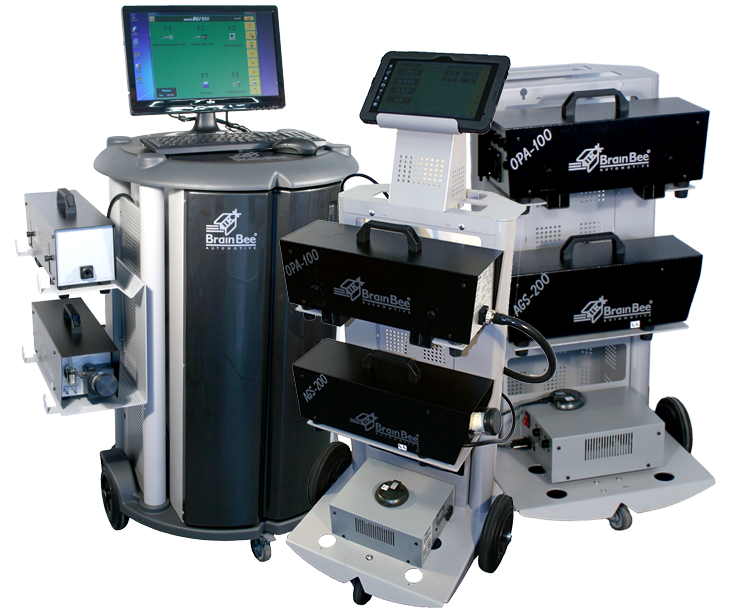

Brain Bee Omni 800

The Brain Bee Omni 800 range of emission analysers brings premium quality products together with cutting edge technology and user friendly features, to create a high quality emission package with a proven track record.

The Omni 800 range offers combined petrol and diesel emission testing to the highest standard and surpasses all UK MOT requirements, plus adds many features that ensures the Omni 800 leads the market in technology and user friendliness.

The Omni 800 is offered in four different configurations

  • The Omni 800 Lite
  • The Omni 800
  • The Omni 800 Blue
  • The Omni 800 Modular

All four versions offer outstanding features and performance but enable customers to choose the best match to their requirements. The Omni 800 range can also be further expanded with some useful optional accessories.

2 Years Warranty on the Full Omni 800 Range of Emission Analysers

The success and reliability of the Omni 800 range is built on three essential components, the AGS200 Gas bench, The OPA100 smoke chamber and the MGT300EVO Bluetooth/RF RPM module. These market leading components are used by many emission analyser manufacturers in the UK and renowned as the leading products in their field. As a result Brain Bee confidently offer 2 years warranty on all emission stations.

Petrol Monitoring

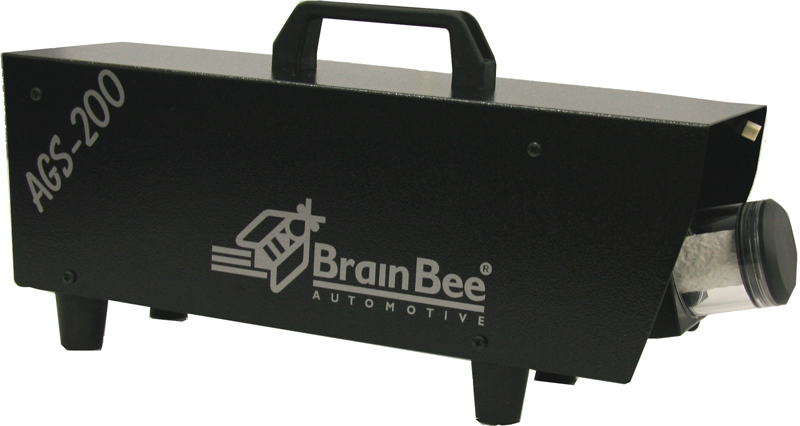

AGS-200 Gas Analyser

The AGS-200 Gas bench is an integral and important part of the Brain Bee Omni 800 emission analyser. The speed and accuracy of the analyser sets it head and shoulders above the competition offering robust, reliable and proven measurements.

  • DVSA approved for MOT testing
  • OIML Class O approved
  • Accurately measures CO, CO2, HC, O2, Lambda
  • Protective internal filters for gas/water
  • Automatic flow control & zeroing system
  • Rapid heating times for quick testing
  • Wireless comms of RPM & temp from MGT-300EVO

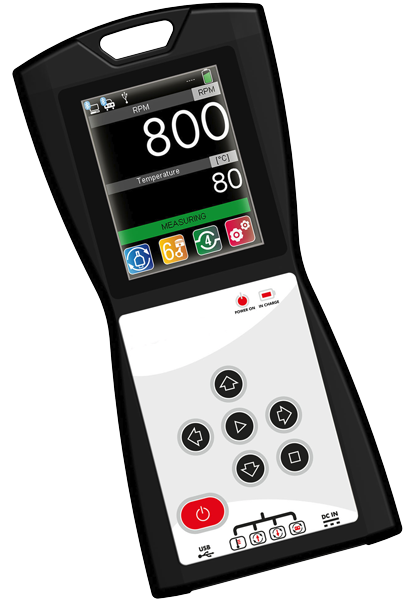

MGT-300EVO

MGT-300EVO

The MGT-300EVO universal RPM counter and temperature systems typifies the technological level of the Brain Bee Omni 800 emission analyser. This market leading tool connects to the vehicle and communicates the results via RF or Bluetooth to the AGS200 & OPA100, completely cable free. Furthermore the MGT-300EVO can identify and isolate background noises in the workshop, optimising the accuracy of the values recorded.

  • Cable free communication from vehicle
  • Bluetooth or RF communication options
  • Identifies and isolates background noise
  • Oil temperature via dipstick probe
  • RPM via engine acceleration sensor
  • RPM via battery

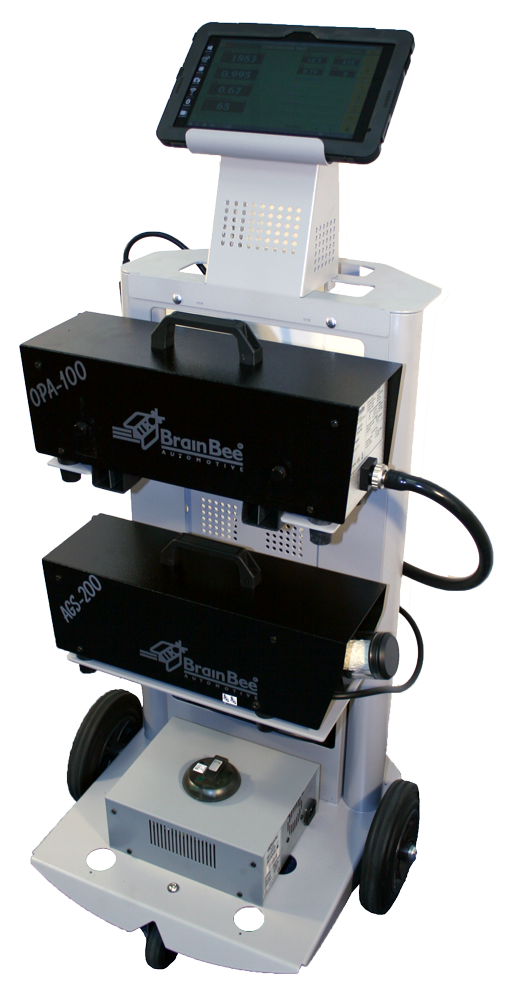

Brain Bee Omni 800 Lite

Brain Bee Omni 800 Lite - Petrol Only

The new and exciting Brain Bee Omni Lite Petrol delivers all the outstanding features and quality of the Brain Bee range of emission analysers, but at an amazing low price. The Omni 800 Lite has been designed using the latest technology and modern designs to take emission testing to a new level.

Removing the conventional PC for a modern tablet, using cable-free communication and using a smaller trolley has enabled us to reduce the price significantly. However, no compromise has been taken on the market leading AGS200 gas module or the MGT300 RPM and oil temp module, making this a truly reliable machine with a proven track record.

The Omni 800 Lite uses cable-free technology throughout its design, enabling it to be moved freely around the workshop. This cutting edge design means the gas head and the engine RPM and temperature module, together with the Windows tablet, are all communicated cable-free, leaving the workshops clear of cables and trip hazards.

The Omni 800 Lite uses a high spec Windows 8.1, Bluetooth, touch-screen tablet with rugged case to record the vehicle details and control the emission tester's operation. This can be easily used anywhere in and around the vehicle completely cable-free from the emission tester modules, and the results sent to an optional WiFi printer.

  • Petrol emission analyser
  • DVSA approved to latest specification
  • Cable-free technology throughout
  • Windows 8.1 10" touch screen tablet
  • Cable-free RPM and oil temp module
  • Bluetooth communication system
  • Well proven AGS200 petrol module
  • Optional WiFi printer
  • 2 year warranty
  • Optional 3 year and 5 year extended care plan
Brain Bee Omni 800 Lite - Wireless Connections
Only £3795.00 + VAT
P/No. : bbeeomni800litepet
QTY :
Lease From £20.58 Per Week
Click Here for Details

Optional Printer

Only £150.00 + VAT
P/No. : bbeeomni800printer
QTY :

Optional Accessories

A range of optional accessories are available for the Omni800 range of emission analysers which are developed to enhance the total package to an ultimate level.

Brain Bee Omni 800 Modular

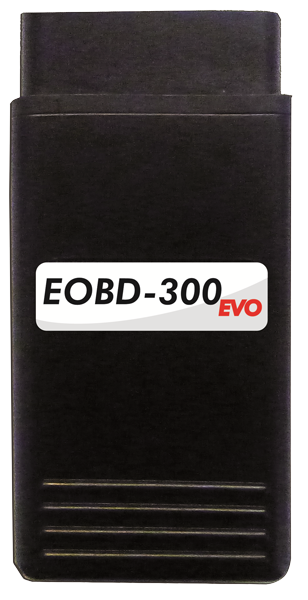

EOBD Module

With this EOBD module it is possible to collect the engine RPM and oil temperature from the OBD diagnostic socket on many vehicles, this is an advantage on modern vehicles where engine RPM can be more difficult to locate an accurate signal. The module communicates via Bluetooth and therefore the only vehicle connections required to carry out a full test is the tailpipe nozzle, oil temperature probe and this EOBD module.

Only £249.00 + VAT
P/No. : bbeeobd
QTY :

3 Year Plan

3 years calibrations, software updates and warranty. Excludes all consumable items (hoses, leads, paper etc). Excludes accidental damage or damage from outside source (ie water ingress).

Only £2100.00 + VAT
P/No. : bbee3yearplan
QTY :
Lease From £11.39 Per Week
Click Here for Details

5 Year Plan

5 years calibrations, software updates and warranty. Excludes all consumable items (hoses, leads, paper etc). Excludes accidental damage or damage from outside source (ie water ingress).

Only £3200.00 + VAT
P/No. : bbee5yearplan
QTY :
Lease From £17.35 Per Week
Click Here for Details

Calibration Charges

Combined Emissions Analysers

Includes

  • 1 x Petrol Calibration Visit per annum
  • 1 x Petrol & Diesel Visit per annum
Only £500.00 + VAT

Petrol Only Analysers

2 visits are required per annum. Price below is for 2 visits.

Only £380.00 + VAT

Diesel Only Analysers

1 visit required per annum. Price below is for 1 visit.

Only £190.00 + VAT
