Brain Bee Omni 800 Lite Emission Analyser
Brain Bee Emission Analysers - Everything Under Control
The Brain Bee Omni 800 range of emission analysers brings premium quality products together with cutting edge technology and user friendly features, to create a high quality emission package with a proven track record.
The Omni 800 range offers combined petrol and diesel emission testing to the highest standard and surpasses all UK MOT requirements, plus adds many features that ensures the Omni 800 leads the market in technology and user friendliness.

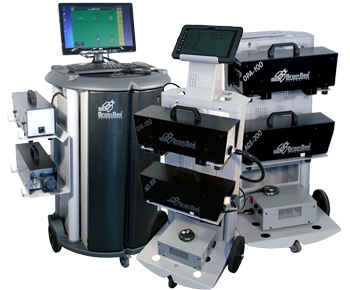

The Omni 800 is offered in four different configurations
- The Omni 800 Lite
- The Omni 800
- The Omni 800 Blue
- The Omni 800 Modular
All four versions offer outstanding features and performance but enable customers to choose the best match to their requirements. The Omni 800 range can also be further expanded with some useful optional accessories.
2 Years Warranty on the Full Omni 800 Range of Emission Analysers
The success and reliability of the Omni 800 range is built on three essential components, the AGS200 Gas bench, The OPA100 smoke chamber and the MGT300EVO Bluetooth/RF RPM module. These market leading components are used by many emission analyser manufacturers in the UK and renowned as the leading products in their field. As a result Brain Bee confidently offer 2 years warranty on all emission stations.
AGS-200 Gas Analyser
The AGS-200 Gas bench is an integral and important part of the Brain Bee Omni 800 emission analyser. The speed and accuracy of the analyser sets it head and shoulders above the competition offering robust, reliable and proven measurements.
- DVSA approved for MOT testing
- OIML Class O approved
- Accurately measures CO, CO2, HC, O2, Lambda
- Protective internal filters for gas/water
- Automatic flow control & zeroing system
- Rapid heating times for quick testing
- Wireless comms of RPM & temp from MGT-300EVO
OPA-100 Diesel Smoke Meter
The OPA-100 diesel smoke metering unit adds to the total quality of the Omni 800 emission analyser. This high spec market leading module gives fast and accurate measurement of the smoke opacity by rapid chamber heating and fast pass technology.
- DVSA approved for MOT testing
- Type approved to latest specifications
- Accurately measures opacity of smoke
- Automatic glass cleaning system
- Wireless comms of RPM & temp from MGT-300EVO
- Fast pass system for rapid testing
MGT-300EVO
The MGT-300EVO universal RPM counter and temperature systems typifies the technological level of the Brain Bee Omni 800 emission analyser. This market leading tool connects to the vehicle and communicates the results via RF or Bluetooth to the AGS200 & OPA100, completely cable free. Furthermore the MGT-300EVO can identify and isolate background noises in the workshop, optimising the accuracy of the values recorded.
- Cable free communication from vehicle
- Bluetooth or RF communication options
- Identifies and isolates background noise
- Oil temperature via dipstick probe
- RPM via engine acceleration sensor
- RPM via battery

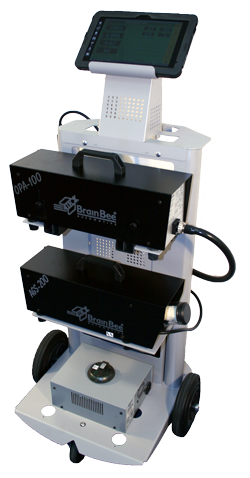

Brain Bee Omni 800 Lite
The new and exciting Brain Bee Omni Lite delivers all the outstanding features and quality of the Brain Bee range of emission analysers, but at an amazing low price. The Omni 800 Lite has been designed using the latest technology and modern designs to take emission testing to a new level.
Removing the conventional PC for a modern tablet, using cable-free communication and using a smaller trolley has enabled us to reduce the price significantly. However, no compromise has been taken on the market leading AGS200 gas module, OPA100 smoke module or the MGT300 RPM and oil temp module, making this a truly reliable machine with a proven track record.

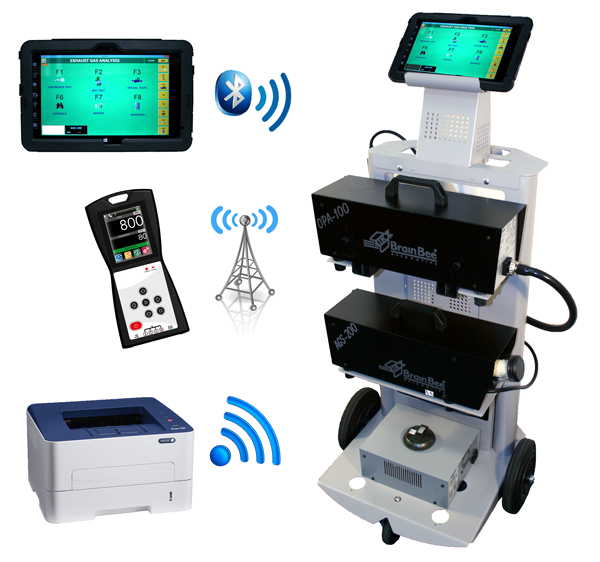

The Omni 800 Lite uses cable-free technology throughout its design, enabling it to be moved freely around the workshop. This cutting edge design means the gas and smoke heads and the engine RPM and temperature module, together with the Windows tablet, are all communicated cable-free, leaving the workshops clear of cables and trip hazards.
The Omni 800 Lite uses a high spec Windows 8.1, Bluetooth, touch-screen tablet with rugged case to record the vehicle details and control the emission tester's operation. This can be easily used anywhere in and around the vehicle completely cable-free from the emission tester modules, and the results sent to an optional WiFi printer.
- Petrol and diesel combined emission analyser
- DVSA approved to latest specification
- Cable-free technology throughout
- Windows 8.1 10" touch screen tablet
- Cable-free RPM and oil temp module
- Bluetooth communication system
- Well proven AGS200 petrol and OPA100 diesel modules
- Optional WiFi printer
- 2 year warranty
- Optional 3 year and 5 year extended care plan
Optional Printer
Downloads
Optional Accessories
A range of optional accessories are available for the Omni800 range of emission analysers which are developed to enhance the total package to an ultimate level.
EOBD Module
With this EOBD module it is possible to collect the engine RPM and oil temperature from the OBD diagnostic socket on many vehicles, this is an advantage on modern vehicles where engine RPM can be more difficult to locate an accurate signal. The module communicates via Bluetooth and therefore the only vehicle connections required to carry out a full test is the tailpipe nozzle, oil temperature probe and this EOBD module.
Battery Backup
(available for the Omni800 Blue and Modular)
With the battery back up power supply it is possible to operate the mobile trolley completely cable free of the mains power supply. This means the mobile trolley requires no connections at all and can be used in any part of the workshop or outside space. The internal battery can be charged overnight and the back up supply will power the trolley throughout the day.
Technical Specification
- DVSA approved for MOT testing
- OIML Class 0 approved
- Gas measurement CO, CO2, HC, O2, NOX, Opacity
- Measuring fields Lambda, revs, oil temp
- Power supply 240 VAC / 12 VDC
- Operating temperature 0 - 40 'C
- Windows 7 Computer (Not Lite or Modular)
- 19" LCD LED flat screen monitor (Not Lite or Modular)
- Brother A4 Laser colour printer (Not Lite or Modular)
3 Year Plan
3 years calibrations, software updates and warranty. Excludes all consumable items (hoses, leads, paper etc). Excludes accidental damage or damage from outside source (ie water ingress).
5 Year Plan
5 years calibrations, software updates and warranty. Excludes all consumable items (hoses, leads, paper etc). Excludes accidental damage or damage from outside source (ie water ingress).
Calibration Charges
Combined Emissions Analysers
Includes
- 1 x Petrol Calibration Visit per annum
- 1 x Petrol & Diesel Visit per annum
Petrol Only Analysers
2 visits are required per annum. Price below is for 2 visits.
Diesel Only Analysers
1 visit required per annum. Price below is for 1 visit.
