Brain Bee Omni 800 Modular Emission Analyser

Brain Bee Emission Analysers - Everything Under Control

Brain Bee Omni 800

The Brain Bee Omni 800 range of emission analysers brings premium quality products together with cutting edge technology and user friendly features, to create a high quality emission package with a proven track record.

The Omni 800 range offers combined petrol and diesel emission testing to the highest standard and surpasses all UK MOT requirements, plus adds many features that ensures the Omni 800 leads the market in technology and user friendliness.

The Omni 800 is offered in four different configurations

  • The Omni 800 Lite
  • The Omni 800
  • The Omni 800 Blue
  • The Omni 800 Modular

All four versions offer outstanding features and performance but enable customers to choose the best match to their requirements. The Omni 800 range can also be further expanded with some useful optional accessories.

2 Years Warranty on the Full Omni 800 Range of Emission Analysers

The success and reliability of the Omni 800 range is built on three essential components, the AGS200 Gas bench, The OPA100 smoke chamber and the MGT300EVO Bluetooth/RF RPM module. These market leading components are used by many emission analyser manufacturers in the UK and renowned as the leading products in their field. As a result Brain Bee confidently offer 2 years warranty on all emission stations.

Petrol Monitoring

AGS-200 Gas Analyser

The AGS-200 Gas bench is an integral and important part of the Brain Bee Omni 800 emission analyser. The speed and accuracy of the analyser sets it head and shoulders above the competition offering robust, reliable and proven measurements.

  • DVSA approved for MOT testing
  • OIML Class O approved
  • Accurately measures CO, CO2, HC, O2, Lambda
  • Protective internal filters for gas/water
  • Automatic flow control & zeroing system
  • Rapid heating times for quick testing
  • Wireless comms of RPM & temp from MGT-300EVO
Diesel Monitoring

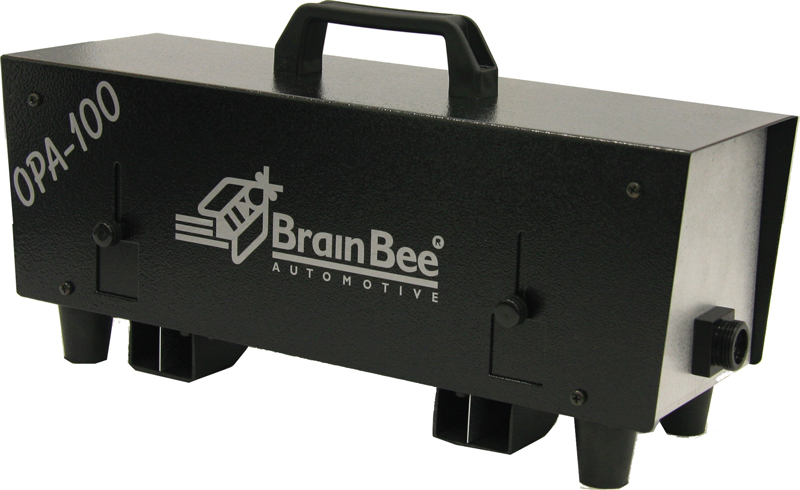

OPA-100 Diesel Smoke Meter

The OPA-100 diesel smoke metering unit adds to the total quality of the Omni 800 emission analyser. This high spec market leading module gives fast and accurate measurement of the smoke opacity by rapid chamber heating and fast pass technology.

  • DVSA approved for MOT testing
  • Type approved to latest specifications
  • Accurately measures opacity of smoke
  • Automatic glass cleaning system
  • Wireless comms of RPM & temp from MGT-300EVO
  • Fast pass system for rapid testing
MGT-300EVO

MGT-300EVO

The MGT-300EVO universal RPM counter and temperature systems typifies the technological level of the Brain Bee Omni 800 emission analyser. This market leading tool connects to the vehicle and communicates the results via RF or Bluetooth to the AGS200 & OPA100, completely cable free. Furthermore the MGT-300EVO can identify and isolate background noises in the workshop, optimising the accuracy of the values recorded.

  • Cable free communication from vehicle
  • Bluetooth or RF communication options
  • Identifies and isolates background noise
  • Oil temperature via dipstick probe
  • RPM via engine acceleration sensor
  • RPM via battery

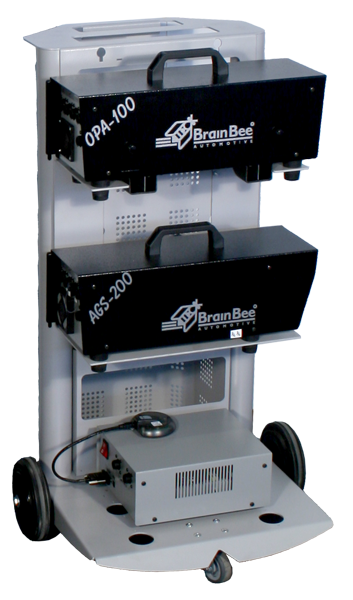

Brain Bee Omni 800 Modular

Brain Bee Omni 800 Modular

The Omni 800 Modular brings a new and modern integrated emission analyser concept to your MOT bay. With the increased computerisation of the MOT bay we can now integrate the emission analyser into the computerisation of the roller brake tester and combine the display of information onto a single point. This cost effective method enables multiple computer packages to be avoided and a modern integrated appearance made possible.

All you require is the mobile trolley with the Gas & Smoke monitoring heads, which will communicate via Bluetooth with the emission software incorporated in the Roller bake tester computer, therefore alleviating the need for a large trolley and emission PC.

  • Modern integrated MOT bay design
  • Single information display centre
  • Mobile trolley with gas & smoke heads
  • Software via Roller brake tester computer
  • Bluetooth communication to trolley
  • Space saving configuration
Only £3995.00 + VAT
P/No. : bbeeomni800mod
QTY :
Lease From £21.67 Per Week
Click Here for Details

Optional Accessories

A range of optional accessories are available for the Omni800 range of emission analysers which are developed to enhance the total package to an ultimate level.

Brain Bee Omni 800 Modular

EOBD Module

With this EOBD module it is possible to collect the engine RPM and oil temperature from the OBD diagnostic socket on many vehicles, this is an advantage on modern vehicles where engine RPM can be more difficult to locate an accurate signal. The module communicates via Bluetooth and therefore the only vehicle connections required to carry out a full test is the tailpipe nozzle, oil temperature probe and this EOBD module.

Only £249.00 + VAT
P/No. : bbeeobd
QTY :

Battery Backup
(available for the Omni800 Blue and Modular)

With the battery back up power supply it is possible to operate the mobile trolley completely cable free of the mains power supply. This means the mobile trolley requires no connections at all and can be used in any part of the workshop or outside space. The internal battery can be charged overnight and the back up supply will power the trolley throughout the day.

Only £200.00 + VAT
P/No. : bbeebackup
QTY :

Technical Specification

  • DVSA approved for MOT testing
  • OIML Class 0 approved
  • Gas measurement CO, CO2, HC, O2, NOX, Opacity
  • Measuring fields Lambda, revs, oil temp
  • Power supply 240 VAC / 12 VDC
  • Operating temperature 0 - 40 'C
  • Windows 7 Computer (Not Lite or Modular)
  • 19" LCD LED flat screen monitor (Not Lite or Modular)
  • Brother A4 Laser colour printer (Not Lite or Modular)

3 Year Plan

3 years calibrations, software updates and warranty. Excludes all consumable items (hoses, leads, paper etc). Excludes accidental damage or damage from outside source (ie water ingress).

Only £2100.00 + VAT
P/No. : bbee3yearplan
QTY :
Lease From £11.39 Per Week
Click Here for Details

5 Year Plan

5 years calibrations, software updates and warranty. Excludes all consumable items (hoses, leads, paper etc). Excludes accidental damage or damage from outside source (ie water ingress).

Only £3200.00 + VAT
P/No. : bbee5yearplan
QTY :
Lease From £17.35 Per Week
Click Here for Details

Calibration Charges

Combined Emissions Analysers

Includes

  • 1 x Petrol Calibration Visit per annum
  • 1 x Petrol & Diesel Visit per annum
Only £500.00 + VAT

Petrol Only Analysers

2 visits are required per annum. Price below is for 2 visits.

Only £380.00 + VAT

Diesel Only Analysers

1 visit required per annum. Price below is for 1 visit.

Only £190.00 + VAT
