75000 Auto Wave

7500 Auto Wave Automotive Voltage / Signal Waveform Viewer
Only £210.00 + VAT
QTY :
P/No. : autowave

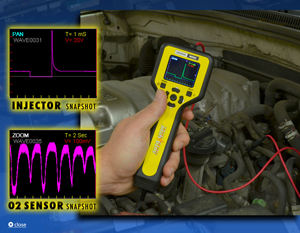

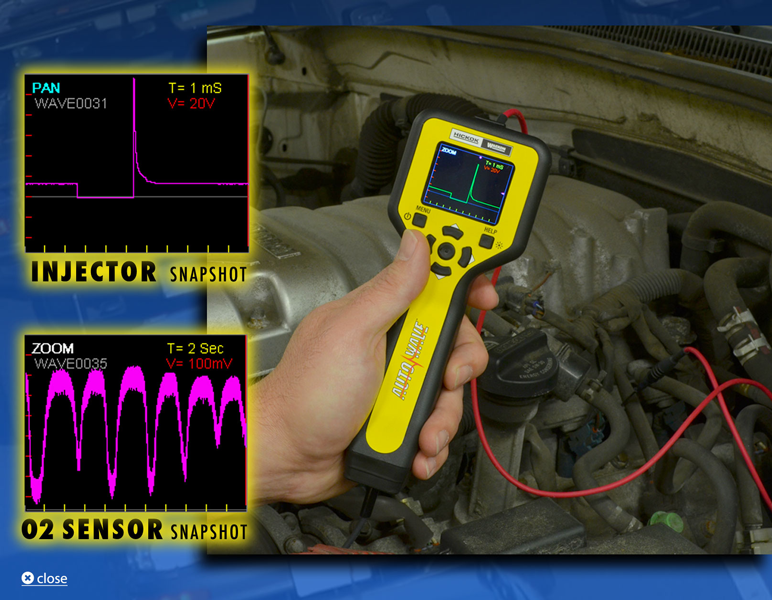

75000 Auto Wave Automotive Voltage / Signal Waveform Viewer

Use Auto Wave to quickly and easily verify that signals and voltages are present in waveform format, using a voltage/time scale, without the need for a scope and with more detail than a DVOM.

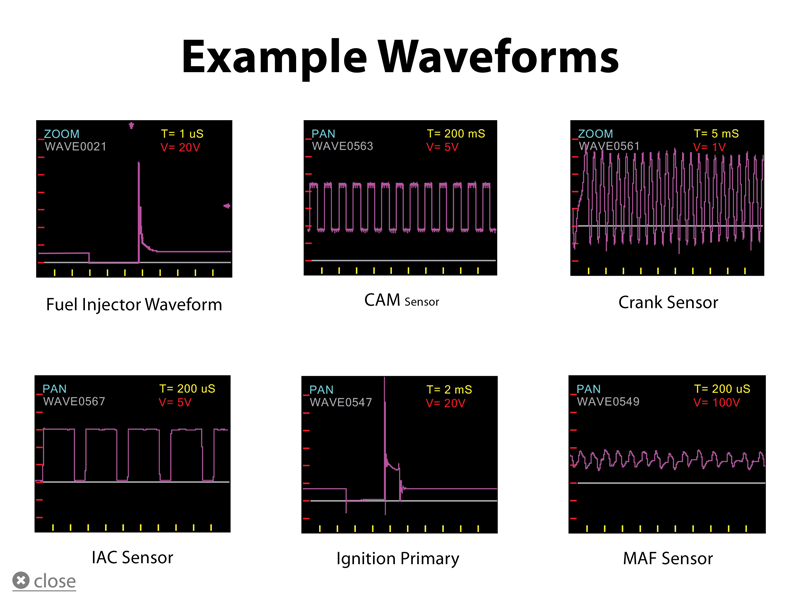

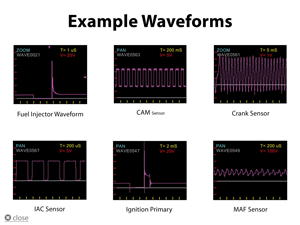

View signals on ignition primary, fuel injectors, MAF, O2, TPS, crank and cam, PWM components and much more.

Features & Benefits

  • Auto Set Feature — Automatically sets time and voltage scale adjustment for the viewed signal or voltage
  • Zoom and Pan — Adjust the view of the signal for a more detailed wave form
  • 4 GB Micro SD Card — Save waveform snapshots for later review on the tool or a PC
  • Accurate Readings — Sample rate up to one million samples / second
  • Color LCD Display — Easy viewing of the waveform time and voltage scale.

Specifications

  • Voltage Input Range: +/-150V (approx. 170V P/P viewable on LCD
  • Voltage Ranges: 150V, 100V, 50V, 20V, 10V, 5V, 2V, 1V
  • Sample Rate: 1 Ms/Sec @ 100uS/Division
  • Volt Meter : +/-150V DC
  • Accuracy: +/-2% FS (per range)
  • Storage: up to 9999 waves on SD card
  • Zoom 20x zoom in to 1/20 zoom out (range dependent)
  • *Please refer to the User Guide for a full list of specifications

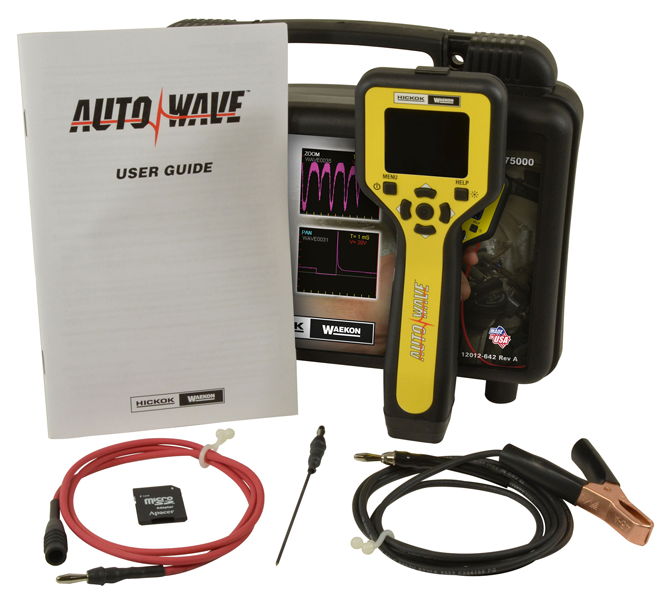

Kit Contents

  • Main Unit
  • 1 x Probe
  • 1 x Ground Cable
  • 1 x Red extender Cable
  • 1 x SD card and adapter
  • 1 x plastic storage case
  • 1 x User Manual
  • 1 x 9v Battery

User Guide

7500 Auto Wave Automotive Voltage / Signal Waveform Viewer7500 Auto Wave Automotive Voltage / Signal Waveform Viewer
