Zed-FULL Plus PLUS

The Zed-FULL Plus Immobiliser Solution

The Zed-FULL Plus from IEA is the first "all in one" programming tool for the diagnostic or auto locksmith professional, with a huge range of specialist software and purchasing options.

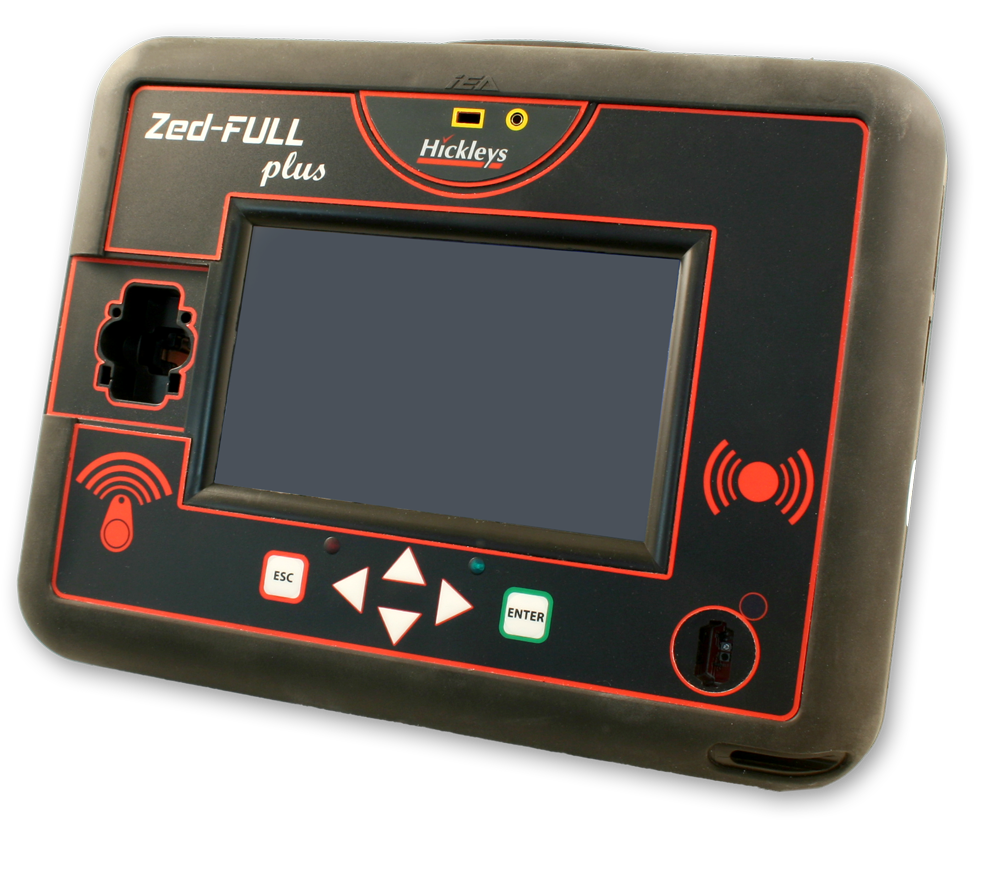

The Zed-FULL Plus is a top quality computerised tablet with a large full colour touch screen, huge memory and easy to use software. It also comes with a range of cables, adapters and accessories together with a strong carry case.

The Zed-FULL Plus combines an exceptional range of software that until now has only been available in separate tools. The Zed-FULL Plus combines Key cloning, transponder management, OBD key & remote programming, EEPROM programming and other features such as a remote tester, key and remote virginising, voltage & continuity tester, WiFi communication and PC software package. So for the first time you can have your cloning machine, key programmer and EEPROM package all in one exceptional tool.

Not only does the Zed-FULL Plus combine all the features of many competitive tools but the level of software takes key programming options to new heights. The Zed-FULL Plus is packed with new features and software such as:

• Cloning to many fixed and crypto transponders including id46 & 8C
• Cloning to the latest carbon CN2 & ZED46 transponders for 4C, 4D and ID46
• Cloning some ID48 for Daewoo, Chevrolet, Hyundai and Kia
• Built in frequency tester for remote keys
• Recycling and unlocking of used remote keys and key cards
• Remote emulating system for Fiat remotes
• OBD key & remote programming including pincode reading on a huge range of vehicles
• Built in component security code reading aerial for easy scanning
• Latest coverage of VAG vehicles including UDS systems
• Pincode reading for Peugeot & Citroen vehicles
• OBD programming on 24v systems including Renault, DAF and Volvo trucks
• Built in EEPROM programmer with no PC software required
• Over 250 individual immobiliser EEPROM files covered

The Zed-FULL Plus is fully loaded with the full range of software to carry out every feature of the tool, now and in the future. All software updates will be loaded "free of charge" so you never have to pay for the latest software to be added to your tester.

With every Zed-FULL Plus standard cloning features and a range of other software, including the majority of eeprom files, are free to use for life in the purchase price of the tester. To use the remaining outstanding features of the Zed-FULL Plus there are 3 different ways to fund its use.

Try Before You Buy for only £200 Per Month

This offer includes:

• Zed-FULL PLUS Programmer
• Unlimited Use
• Unlimited Technical Support
• 20% Discount on Keys and Remotes
• £100 off Zed-FULL PLus Training Course
• 15% Discount on Cables & Accessories

After 15 months of rental, the unit becomes yours to keep at no extra cost.

To take advantage of this offer, call us now on 01823 328531.

Option One. "Pay as You Go" Credits

Each credit is 50p and individual tasks use a different quantity of credits. Using credits means you only pay for the software you use, enabling you to benefit from all the software but only pay for it as and when you use it.

Option Two. "Unlimited Use" Subscriptions (LIFS)

With the unlimited use (LIFS) it is possible to buy a period of time, 3, 6 & 12 months and then use all of the software as much as you like without additional cost. It is now possible to use a certain par of the software (ie Ford OBD or eeprom programming) on unlimited use for periods of 6 or 12 months, whilst using the remainder of Zed-FULL Plus features on credits

Option Three "Outright Software Purchase"

For customers that like to purchase and own their software outright it is possible to purchase any or all of the software you want. In this way if you use a particular piece of software a lot you can purchase this software whilst using credits for the remaining features.

Please see the Zed-FULL Plus Credit Purchase Options page for more details and to purchase credits/software.

The combination of an "all in one" tool , exceptional software levels and flexible purchase options makes the new Zed-FULL Plus the perfect choice whether you are a beginner, an experienced user, a low level or volume user or even someone that just wants to to use a limited amount of the vast features of the Zed-FULL.

Main Features

• Rugged tablet handset with steering wheel hook
• 7" HD TFT colour touch screen
• Excellent graphics and intuitive to use
• Single OBD cable for all applications
• 12V and 24V operation for car and truck
• Built-in transponder reader / holder, key and remote reader
• Built-in infrared and remote frequency tester with frequency display
• Built-in volt meter and continuity tester for vehicle and remote battery testing
• Built-in eeprom reader/writer and programming system
• Quick start guide

Great Features new to Zed-Full Plus

• Simulation mode for OBD and eeprom will alow users to simulate the application without the need of the car
• New tab menu system will help users during programming
• PC based problems during updates - sending logs will no longer be a headache. Updating and sending logs will be done on the device with WiFi connection
• Built-in Merecedes application
• Built-in WiFi module - Sending logs and updates does not require PC software
• Built-in OBD dongle-2-3-4 (Dongle 1 and dongle 5 need to be tested to confirm)
• Built-in ZFH-EA7 adapter
• Built-in ZFH-PCF79XX adapter
• Minimised SW pack system
• Unique, unchangeable serial number
• Customised improved transponder reading antenna
• Extended program memory on microcontrollers for future updates
• Separated Beta version menu on device
• Built-in simulation mode
• One board for transponder, Mercedes Benz and remote functions
• Separated transponder antenna board
• Quick transponder reading feature
• Better SD card read-write protocol
• User friendly tab menu system on applications
• Completely new design for OBD menu which allows user to scroll through the applications such as key program. pin code read, remote program etc easily
• Frequency counter feature removed (showing 315, 433, 868 Mhz on screen)

Free To Use Features

The Zed-FULL Plus standard package includes many features that are completely free to use for the life of the Zed-FULL. These include :

• Transponder identification (all types)
• Transponder cloning for fixed 11, 12, 13, 14, 33, T5 & 4C
• Transponder cloning for Crypto 40(some), 41, 42, 44 (unlocked VAG), 45, 73 & 8C
• Transponder cloning for Crypto 2, ID46 onto carbon TS46 or TK60 (Internet) & CN3
• Transponder cloning for Texas 4D (Internet) to TPX2
• Transponder cloning to a range of VAG & Fiat ID48 vehicles onto a ZED48 using ZFH48 sniffer
• Transponder cloning for ID48 Daewoo, Chevrolet and some Hyundai/Kia onto TS48
• Writing to transponder T5, PCF7930, PCF7931, PCF7935, PCF7936, PCF7946, PCF7947, 4D60, 48, 8C, TPX1, TPX2, EH1, EH2, TK60, Z4C, CN2, TS46, TS48, TK5551, CN3
• Transponder test
• BMW EWS remote battery charging
• Built-in infrared and remote frequency remote tester
• Manual remote programming procedures
• Pincode reading fromkey on peugeot 45, Renault 33, Hyundai/Kia 6pin
• Unlock ID48 & virgin 48 CAN & Honda ID46
• Reading KM, chassis and key info from BMW EWS keys and remotes
• Transponder catalogue
• Customer database
• PC software for cloning, pincodes, updating, loading software, eeprom applications and emulator unlocking
• Transponder production for 33 various, 40, 41, 42, 44, 45, 46 various, 61, 62, 63, 65, 67, 68, 69, 70 & 73 to PCF7930, PCF7931, PCF7935, PCF7936, T5, TPX2 and CN2
• Mercedes E, C & G class up to 1999
• Pincodes for Renault 33, Renault 60-64 and Peugeot 45 from key head
• 159 of the 219 eeprom files are free to use

Features Available via Credit or Unlimited Use Package

Some features on the Zed-FULL Plus are only available once purchased via one of the three different purchase plans (see below for details). Chargeable features include :

Transponder, Key & Remote Management

• Transponder production of 8C and Canbus ID48
• Fiat remote cloning to special remote emulators
• Transponder & remote recycling for ID46 Vectra C, Renault Clio, Renault Master, Vauxhall Molvano, Renault Traffic, Renault Clio3, Renault Modus, Renault Laguna, Renault Megane. Nissan, Honda & Saab

Pincode Solutions without OBD Connection
(See OBD Programming for pincode reading direct from vehicle)

• Fiat Panda ID46 picode calculation from key (with internet)
• Nissan Almera & Primera ID46 pincode calculation from key (with internet)
• Renault Symbol-Dacia Duster continental box ID46 picode calculation from key (with internet)
• Hyundai and Kia pincode calculation from VIN number (up to 2007)
• Hyundai and Kia pincode calculation from key
• Pincode calculation from Nissan ICU-SEC-BCM labels

Eeprom Programming

• Built-in eeprom reader / programmer with external port
• 252 different immobiliser applications for car, truck and motorbike (of which 159 are free to use)
• System applications, information, pictures and circuit diagrams
• Read pincodes, CS codes, generate transponders to start vehicle and create programmable transponders
• Catalogue of Motorola masks
• Software loaded on Zed-FULL Plus and PC software

OBD Programming

• BMW
  Key and remote programming via OBD and CA box
• Chrysler
  K key and remote programming, pincode reading, erase key and add key
• Dacia
  Key and remote programming
• Daewoo
  Key and remote programming
• DAF Trucks
  Key programming
• Fiat
  Key and remote programming, pincode reading and precoding
• Ford
  Key and remote programming, add and clear key, incode/outcode bypass
• GM (American)
  Key and remote programming
• Holden
  Key and remote programming and pincode reading
• Honda
  Key programming
• Hyundai / Kia
  Key and remote programming and pincode reading
• Isuzu
  Key and remote programming, erase and add key
• Iveco
  Key programming, pincode reading, precoding
• Jaguar
  Key and remote programming
• Land Rover
  Key and remote programming
• Mazda
  Key and remote programming, picode bypass
• Mitsubishi
  Key and remote programming, pincode bypass, erase and add key
• Motorbikes
  Key programming solutions
• Nissan
  Key and remote programming, pincode reading, erase and add key
• Opel / Vauxhall
  Key and remote programming and pincode reading
• Proton
  Key programming, erase key and add key
• Peugeot / Citroen
  Key and remote programming and pincode reading
• Renault
  Key and remote programming and pincode reading
• Renault Trucks
  Key programming
• Smart
  Key and remote programming
• Subaru
  Key programming
• Suzuki
  Key and remote programming
• Toyota
  Key and remote programming, immobiliser reset, erase key and add key
• VW / Audi / Seat / Skoda
  Key and remote programming, erase key, add key, pincode reading, precoding, eeprom reading for pin, K line, VAG CAN and UDS systems.
• Volvo Car and Truck
  Key programming

Remote Unlocking Software

This software will unlock OE used remotes so they can be reused on a different vehicle. The software covers:

• Chrysler / Jeep / Dodge
• Opel (Vauxhall)
• Chevrolet
• Cadillac
• Buick
• PSA Peugeot / Citroen
• Kia / Hyundai
• BMW
• Mitsubishi
• Volvo
• Land Rover
• Toyota

You need to purchase the software and the hardware outright to operate this service. It will not work on credits or LIFS. Once purchased, it is free to use for life.

The software and hardware can be purchased individually, or we offer an intermediate and full kit at a discounted price.

Zed-FULL Plus Accessories

To see our available accessories and spares for the Zed-FULL Plus, please see the Zed-FULL Plus Accessories and Spares page.

Applications

For the full and latest applications for the Zed-FULL Plus, please click the following link:

Istanbul Anahtar Website
