Zed-FULL Mercedes Software / Hardware

£1295.00 + VAT

P/No. : zedmbkit

Lease From £7.02 Per Week
Click Here for Details

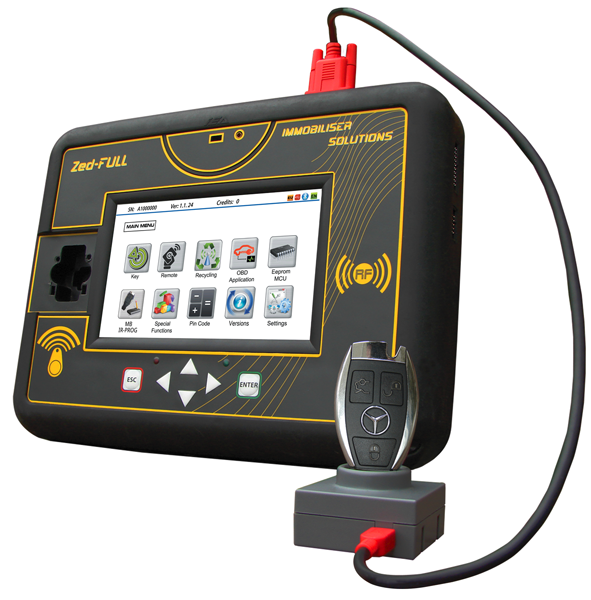

The NEW Zed-FULL Mercedes Hardware Package

Extended application list from 1998 to 2018
Software, Zednet, EZS test kit now included in package
Completely free to use, no credit charge per key
Includes BGA key programming via OBD
Requires only 10 keys programmed for full payback

The NEW Mercedes key programming software for the Zed-FULL offers the opportunity to program new keys to a huge range of cars and vans, whether it's a duplicate key required or it's completely lost keys.

One of the huge advantages of the new Zed-FULL software is that we can now program via the OBD socket and by reading the information from the key slot, therefore on most of the applications the ignition switch module does not need to be removed, making the process quicker and easier.

The kit includes a 'sniff key' that reads the data direct from the ignition switch and transfers the data to the Zed-FULL. Whilst eeprom reading and some soldering skills are required on some of the programming procedures, the process is made as simple as possible; often only needing cables to be soldered onto a board instead of full eeprom removal.

Another advantage of the Zed-FULL Mercedes software is that the system is confined to the Zed-FULL tool, with no extra PC software or computers required.

A full application list will be available soon but does includes A, B, C, CLK, E, CLS, S, CL, SL, SLK, G, R, M, GL, Classes, Lito, Viano, Vaneo, Vito and Sprinter, and covers years 1998 to 2015.

It is possible to use second hand genuine keys, as the Mercedes program has a viginisation process built into the software. In addition, we offer a range of new, high quality aftermarket Mercedes keys for both cars and vans that are low cost but excellent build quality - maximising your profit potential.

The hardware and software comes as a package with all modules, adapters, sniff key, Zednet, EZS test kit and cables. The software is included in the package and is therefore free to use (no credits are taken for programming a key) therefore once purchased is completely free to use.

Please note, a maximum of 3 keys can be programmed per day.

With an income opportunity of approximately £250 per key it takes only 10 keys to achieve full payback.

Downloads

Zed-FULL Mercedes Manual

Kit Contents

IR-Prog

Mercedes Benz IR Reader Programmer Module

Zed-NET

Wi-Fi module for Zed-FULL

ZFH-MB

Special IR Key to sniff info from the ignition.

ZFH-C08

Universal 20 pin cable for eeprom applications

ZFH-C09

Universal OBD2 Dongle cable

ZFH-C15

ZFH-UTE connection cable

ZFH-C16

ZFH-MCA connection cable

ZFH-C17

2 Pin gateway connection cable

ZFH-UTE

Universal Transponder Emulator

ZFH-MCA

Zed-FULL Multi Connection Adapter for Benz applications

ZFH-C10

IR-Prog - Zed-FULL Connection Cable

ZFH-C11

IR-Prog update cabe (to PC)

ZFH-MBNEC

NEC MCU adapter with test socket

ZFH-EA6

05E6-05P3 MCU adapter

ZFH-EA7

912/ 9S12/ 9S12X Security MCU Programmer Adapter

ZFH-EA10

QFP64 08AZ/ AB-908AS/ AZ MCU Programmer PCB Adapter

ZFH-EA11

05B/X MCU PCB adapter

MB Test Kit

QFP64 08AZ/ AB-908AS/ AZ MCU Programmer PCB Adapter

Videos

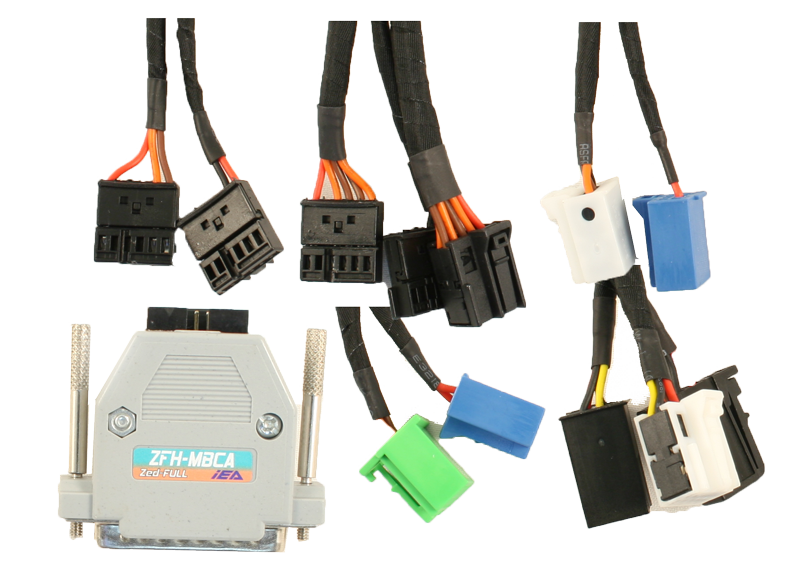

Mercedes EIS Quick Connection Kit

The new quick connection kit for Mercedes key programming allows the programming of keys into the EIS module without disassemble or soldering.

The vast majority of vehicles do not need the EIS module removed but when it does this kit enables the keys to be programmed direct from the Zed-FULL via the quick connection kit.

The kit includes ZFH-MBCA connection dongle and 5 dedicated cables: ZFH-MCB1 /2 /3 /4 & 5.

These cables enable direct connection to the following EIS modules W164, W166, W204, W207, W212, W216, W221, W246, W251.

£280.00 + VAT

P/No. : zedmercmbckit

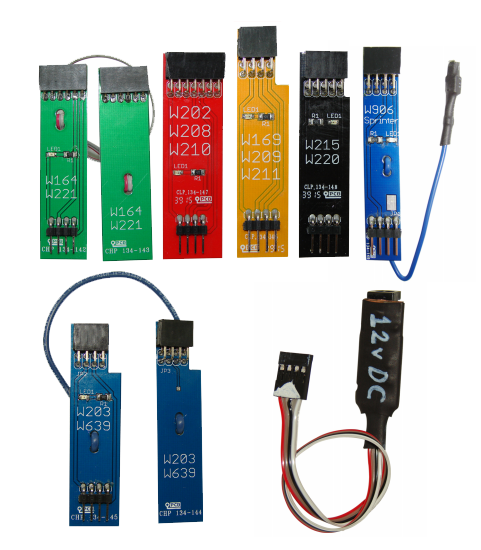

Mercedes Test Kit

The Mercedes Benz test kit allows you to power up the ignition lock (EIS unit) on the bench, in order to test the newly programmed keys without needing the car present.

Includes adapters for all types of processors.

This kit is included in the full Mercedes package.

£180.00 + VAT

P/No. : zedbm-test-kit
