Miracle S10 Key Cutting Machine

£5500.00 + VAT

P/No. : miracles10

Lease From £29.83 Per Week
Click Here for Details

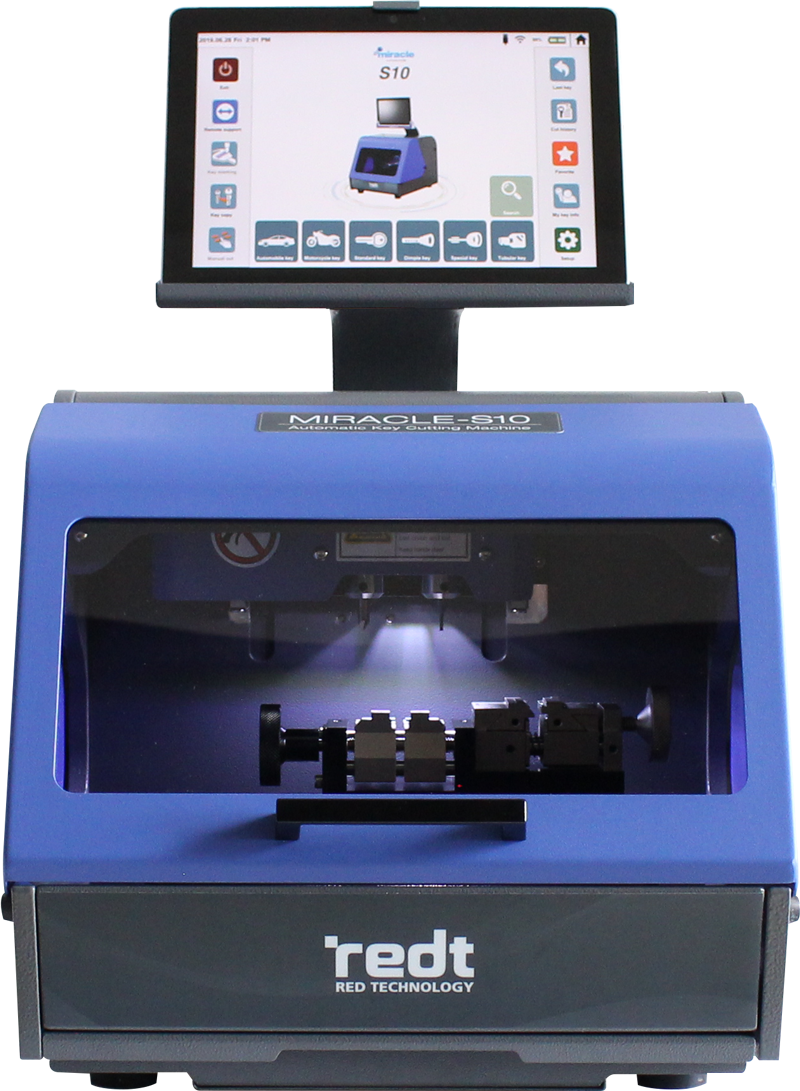

Miracle S10 Key Cutting Machine

Our new all in one key machine. The S10 features a unique retractable decoder system minimising accidental breakages. The Dual clamping system allows for greater flexibility and adaptability when working on multiple projects.

It has 2 end mill cutting heads so you can have two different cutters fitted. Like for example end mill cutter and dimple cutter.

Features

10” Touch screen eases operating the device
Newly developed 4th-generation XY platform equipped
Remarkably high performance thanks to stronger motor and the 4th-generation-platform
Dual built-in cutter system for less cutter exchange
Dual built-in, sliding clamp system for less clamp exchange
New clamp set with interchange-able jaws for easier jaw change
Full-automatic key and clamp measurement
Larger space for clamp manipulation
Built-in bluetooth wireless communication
Artificial Intelligent(AI) software that automatically decides best cutting method
Remarkably improved CodeMaster2 version 10 software supplied

Equipped Tools and Clamps

Decoder 4mm x 1, Endmill 2.0mm x 1 and Dimple Cutter x 1
S10 Automobile Key Clamp x 1 (VA2 Available)
S10 Replaceable Clamp (Dimple, HU66, SX9 and HU162T Available)
S10 Single Sided Key Clamp

Additional Accessories Included

Power Adapter 24V 6A x 1
Power Cable x 1
USB Cable x 1
OTG Cable x 1
Endmill 2.0 mm x 1
M5 Bolt x 3
Wrench 2.5mm x 1
Decoder 6mm x 1 (Only for calibration)
Decoder 4mm x 1
Stopper x 1
Auxiliary Key Clamp Set x 1
Calibration Bar x 1
Tool Rack x 1
Spindle Belt 32mm x 2
Instruction Manual x 1
Surface Go Tablet x 1
Brush x 1
Mounting Bracket x 1
Ground Wiring x 1
Spacer Bar x 1
Back Bracket x 1

Optional Clamps (Separately Sold)

Magnum Key Clamp
Tubular Key Clamp
Tibbe Key Adapter
FO19 Adapter

Technical Specification

Size	362mm(W) x 427mm(D) x 505mm(H)
Resolution	(XY) 0.005 / (Z) 0.00125mm
Spindle Motor Power	109W DC Motor
Power Consumption	Stand-by 30W / Operating 135W
Weight	33Kg
Power	AC 100-240V 50/60Hz

Optional Household Jaws

Tubular Key Clamp

Add-on jaw designed for tubular key applications.

£129.97 + VAT

P/No. : cp87

Magnum Jaw

Jaw turns 14 degrees left and right for Dimple cutting. This adjustable clamping system permits the 14 degree tilt needed for the cutting of Yale Superior.

£247.35 + VAT

P/No. : cp104

Magnum Kit

Jaw turns 14 Degrees Left and Right for Dimple cuts. This adjustable clamping system permits the 14 degree tilt needed for the cutting of Yale Superior.

Includes Adaptor, 1.5mm cutter, Dimple cutter and Dimple decoder

£380.00 + VAT

P/No. : cp104a
