An-San Carisma SM Key Cutting Machine

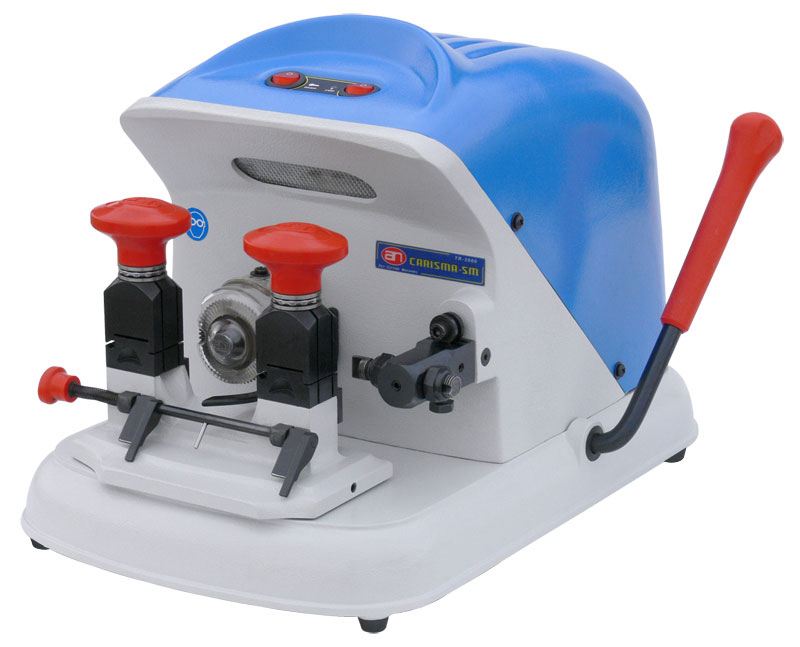

An-San Carisma SM Cylinder Key Cutting Machine

The Carisma SM is our fastest selling manual feed key cutting machine for all styles of cylinder keys. It boasts a high quality and robust design offering excellent accuracy and long term performance. The ergonomic design and broad base gives the machine a stable operation and accurate results.

The most striking feature of this series of machines is the vice system that works horizontally, thanks to this system the operation has dramatically reduced flex which means the new key mirrors the existing exactly.

Control Buttons

The control buttons are built into the top of the body and operate with quality touch sensitive switches that are protected from contamination.

Original Key Follower

The strong structure of the key follower ensures the quality of cut on the copy key. The follower includes an easy and accurate calibration adjuster.

Manual Control

The manual feed handle enables you to control the horizontal movement whilst spring tension directs the blade into the cutter, the combination of manual control with auto feed leads to excellent results and rapid cutting times.

3D Cutter

The 3D design technology of the cutter offers a long life and zero risk of chipping.

LED Lighting

An LED illumination strip built into the roof of the body and directed at the cutter / jaw area of both mortise and cylinder positions offers excellent visibility of the work in all ambient light conditions.

Safety and Approvals

The Carisma is CE approved and equipped with a safety shield over the cutting blade which protects the operator and deflects displaced metal.

Technical Spec

• Height 300mm
• Width 320mm
• Depth 450mm
• Weight 22kg
• Power 220v 50Hz 180W
• RPM 1400
• Cutter 50x5x10mm 3D
• Key styles. Cylinder. (Edge) Cruciform
