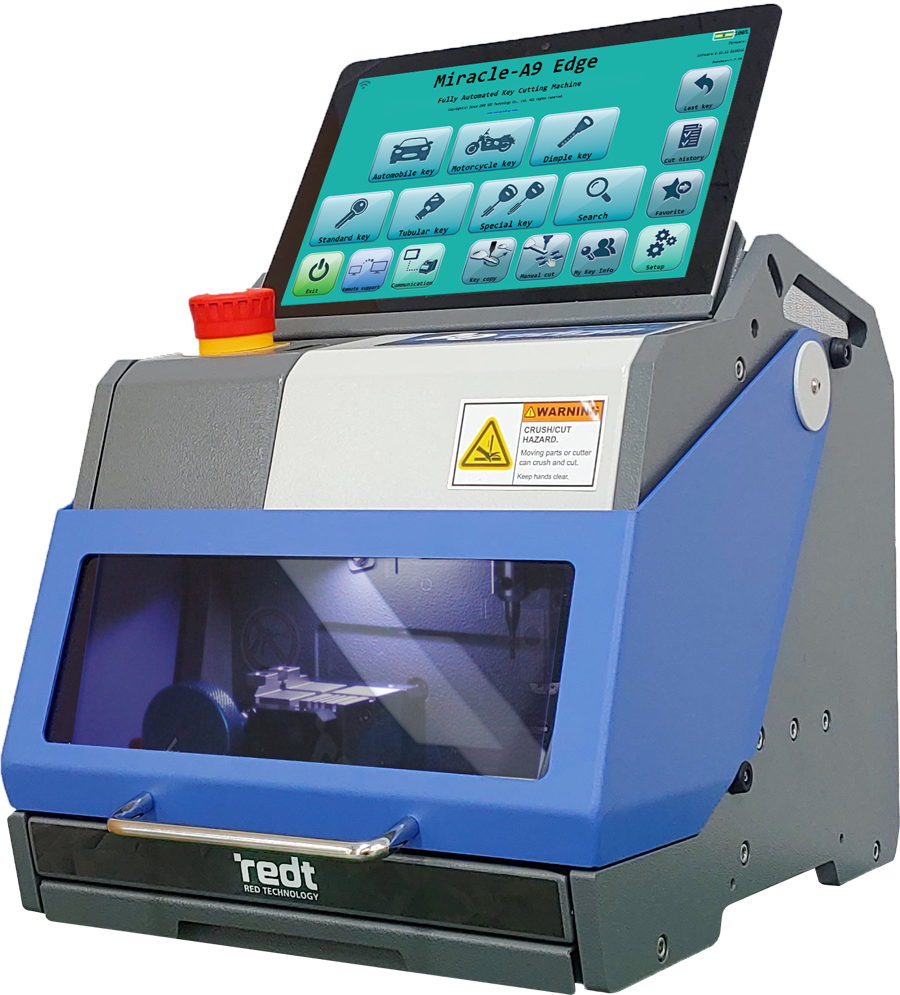

Miracle A9 Edge Key Cutting Machine

Miracle A9 Edge Key Cutting Machine

Miracle A9E can cut single-sided keys, laser keys, automobile keys and also other sophisticated keys like tibbe keys, tubular keys, dimple keys and domestic keys, with CNC technology applied for more accurate and fast production of keys.

Now with a Microsoft Surface Go Tablet and much quieter operation!

The new A9 EDGE includes the Single Sided Key Jaw.

This is the newest version in the A9 line, replacing the A9 Special and A9 Premium.

Miracle A9 EDGE Features

• LED lights support night work.- Equipped tool tray stores tools easily.
• Key production log and customer management function are added.
• Supports powerful and stable key production with 27W, 24DC motor.
• Using both decoder and cutter simultaneously makes key measurement and duplication faster without replacing tools.
• Noise reduction with low-vibration design.
• Supports key data upgrade via Wi-Fi wireless network.
• Provided manually operating function allows producing remote control keys possible.
• Using Ball-screw and LM guide applied to Z-axis provides more accurate and powerful cutting force.
• Touch screen with faster CPU enables quick response.
• Embedded Bluetooth allows wireless operation with the exclusive tablet.
• 10” Touch screen eases operating the device.
• LED lights support night work.
• Automatic Key Measurement - Automatically measures the thickness, position of tip and center of a key. (Automatically corrects error in measurements)

Includes

• AC Adapter
• Power Code
• USB Cable
• Cutter 2mm - 2 pcs
• Probe - 2 pcs
• T-wrench 2.5mm
• Bolt M4 - 2 pcs
• Stopper
• Stopper Right-to-Left
• Auxiliary Clamp - 3 pcs
• Calibration Bar
• Tool Holder
• Spindle Belt - 6 pcs
• HU66 Clamp
• Space Bar
• Instruction manual
• Tablet
• Brush
• Mounting Bracket
• Back Bracket
• Ground wiring

Technical Specifications

• Size: 276mm(W) x 353mm(H) x 341mm(D)
• Resolution: (XY) 0.005mm / (Z)0.00125mm
• Spindle motor power: 27W
• Power consumption: Stand-by 16W / Cutting 80W
• Weight: 19.5Kg
• Power: AC 100~240V 50/60Hz

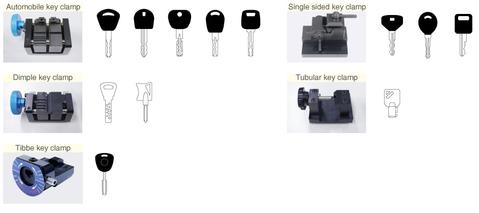

Replaceable Clamps

• Automobile key clamp- included with the machine
• Single sided key clamp- included with the machine
• Dimple key clamp- sold separately
• Tubular key clamp- sold separately
• Tibbe key clamp- sold separately
• SX9 Adaptor- sold separately
• Magnum Jaw- sold separately
• HU162T Adaptor- sold separately

Cutters and Decoders : Optional Purchase

• Miracle Cutter - 2mm
• Miracle Cutter - 1.5mm
• End Mill Cutter - 1mm
• Decoder Probe - 1mm
• Decoder MT5+ and Cadnam - 0.5mm
• Decoder Dimple for Mul-T-Lock
• Cutter Dimple for Mul-T-Lock
• Engraving Cutter

Other Clamps and Adapters: Optional purchase

• Tibbe Adaptor CP-61
• Key Marking Clamp CP-107
• Auto Jaw CP-86 1x included in machine
• HU66 Adaptor Jaw 1x included in machine
• Miracle Stop Guide CP-91 1x included in machine
• VA2 Adapter CP-109
• CP-110 MIRACLE ADAPTOR CLAMP HU162T

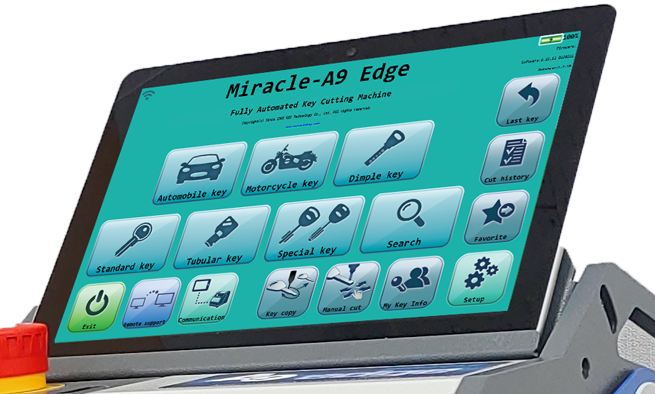

10" Touch Screen

10” tablet makes operating the device easier and upgraded CPU enables use of the program faster.

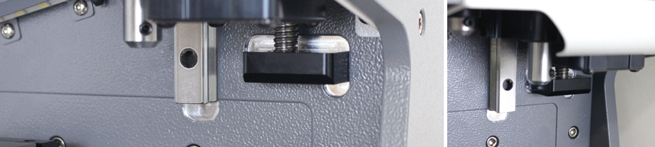

Ball Screw and LM-Guide Equipped

Supports more accurate and powerful cutting force by equipping ball screw and LM-guide.

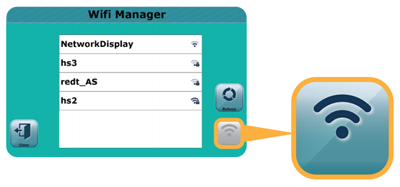

Wireless Upgrade via Wi-Fi

Easy to upgrade data using Wi-Fi wireless network.

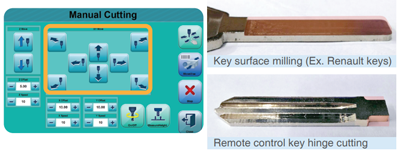

Manual Operation

Provides manual operation to mill key for special purpose.

Bluetooth Operation System with Detachable Tablet

It is possible to separate the machine and exclusive tablet and Bluetooth allows wireless key manufacturing system.

Replaceable Clamp

Replaceable clamps to support various key production.

Decoder and Cutter

• Easy-to-use “key measurement and duplication” by using both decoder and cutter simultaneously.
• Key tip position
• Key center position
• Key thickness

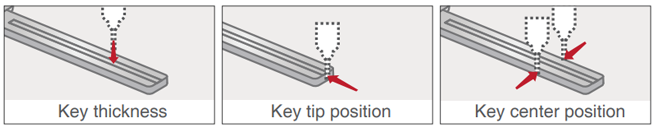

Automatic Key Measurement

Automatically measures the thickness, position of tip and center of a key. (Automatically corrects error in measurements)

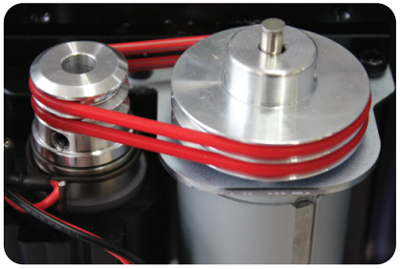

Dual Spindle Belt

Guarantees stable spin performance with dual spindle belts.

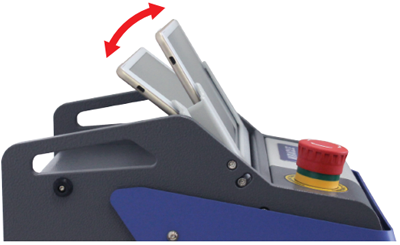

Adjustable Touch Screen Tilt Angle

Adjustable touch screen tilt angle to adapt user’s various working environment such as light reflection and touch angle.

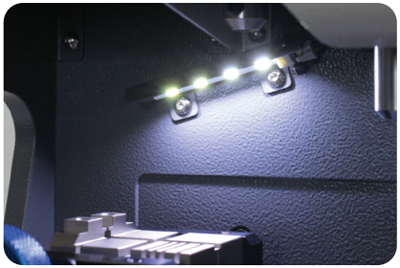

LED Lights

The bright LED lights support night work and other poor lighting environments.

Optional Household Jaws

Dimple Key Clamp

Add-on jaw designed for dimple keyway applications.

Tubular Key Clamp

Add-on jaw designed for tubular key applications.

Magnum Jaw

Jaw turns 14 degrees left and right for Dimple cutting. This adjustable clamping system permits the 14 degree tilt needed for the cutting of Yale Superior.

Magnum Kit

Jaw turns 14 Degrees Left and Right for Dimple cuts. This adjustable clamping system permits the 14 degree tilt needed for the cutting of Yale Superior.

Includes Adaptor, 1.5mm cutter, Dimple cutter and Dimple decoder

Abloy Single Sided Jaw

Abloy clamp for Miracle A9.

Optional Jaws for Auto Applications

Tibbe Key Clamp

HU66

VAG All Models using HU66 Blade

SX9

For use with the Peugeot, Citroen cars using SX9 cruciform

VA2 Renault

Miracle Renault Smart key adapter. For use with the Renault smart key cards.

FO19

For the Silca FO19 key as used on the Ford, LDV and London Taxis.

Replacement Cutters and Decoders

T60-E20-P

6mm x 2mm Cutter

T60-E15

6mm x 1.5mm Cutter.

For the edge cut keys that need a narrower cutter. (example GT10, Iveco etc). Also for the Miracle Select.

T60-E10-P

6mm x 1mm Cutter

T60-P10

1mm Decoder Tip.

Replacement Jaws

Auto Jaw

Included in A9S Auto package.
