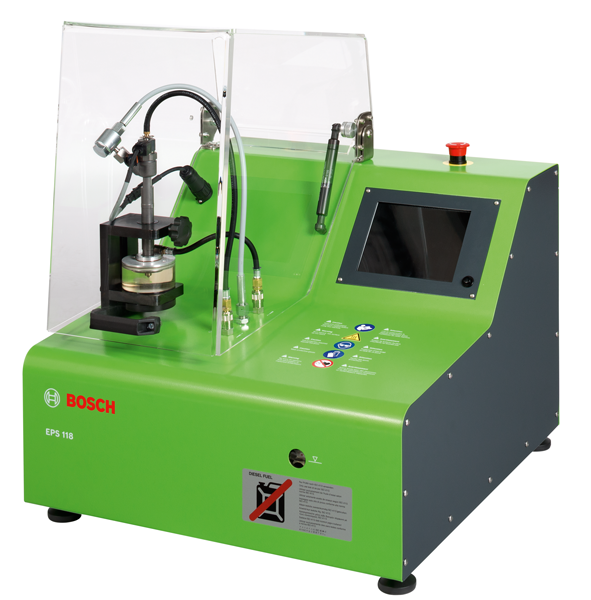

The Bosch EPS118 Injector Tester

The Bosch EPS118 Injector Tester - The Unique Check & Change Tester

The proportion of common-rail systems found on diesel engines continues to rise. The new EPS 118 provides precision technology from Bosch at an affordable price, giving even smaller workshops the chance to participate in this growing market with minimal outlay.

At a Glance

• Precise and fully automatic injector testing
• Simple and fast setup
• Intuitive operator interface (touchscreen)
• Covers a wide range of injectors (incl. Bosch, Continental, Siemens, Delphi, Denso)
• Database with test values (Bosch and other manufacturers)
• Additional injector-specific information
• Display of spray pattern at all pressures
• Easy display of test results for workshop and customer
• Report printout
• Space-saving benchtop unit (60 x 60 cm)

Download the EPS118 Sales Leaflet

The Advantages for the Workshop

• Entry-level opportunity for CR injector testing
• Saves time and money compared to outsourcing for testing
• Easy to operate even without previous experience
• Fast identification of defective injectors
• Unbeatable price
• Report printout makes it easier to convince customers

Software and Display Unit

Clearly organized and easy to understand innovative menu navigation. Several possible result display formats available, e.g.:

• Normal mode: good/bad display
• Expert mode: good/bad display and graphical display of injected volumes

Testable Components

• CR solenoid valve injectors (for cars) from Bosch, Denso, Delphi
• CR piezo injectors (for cars) from Bosch, Denso, Siemens and Continental
• CR solenoid valve injectors (for trucks) from Bosch
• * Note - Optional kit required for Denso, Delphi, Siemens, VDO and Continental

Technical Equipment for Efficient Work

• Test pressure up to 1800 bar
• Three-phase electric power not needed for operation
• No cooling/heating system necessary
• Easy servicing and filter changes
• Software update and printer connection via USB or WLAN

Technical Requirements

• Mains power supply 100 to 240 V
• Compressed-air supply 7 to 8 bar at flow rate of 320 l/min
• Common workshop compressor required

Amortization example

If the workshop tests four injectors per week with the EPS 118, the device is amortized in about two years.
