Bosch Diesel Set 3.1

Bosch Diesel Set 3.1

Diesel Set 3.1 contains all the necessary tools for a comprehensive test of the high pressure pump and rail pressure sensor.

An important precondition to ensure the smooth running of a diesel engine is that the common rail pump generates the required pressure on start up. If it does not, testing must be carried out on the low-pressure side using the Diesel Set 1.

If the pump does generate the necessary pressure, the rail pressure sensor must undergo a more comprehensive test. The Diesel Set 3.1 contains all the necessary tools for the test.

The common rail pump may be destroyed if it is not tested in the correct manner. Hence, the Diesel Set 3.1 has been designed to avoid this occurring and ensure that the pump tests are expertly carried out.

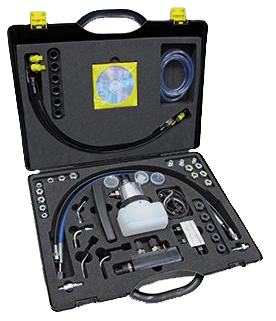

Diesel set 3.1 checks pressure build up on high pressure pumps CP1, CP1H, CP3, CP4.1 and CP4.2 for Common Rail Systems under engine starting conditions. The set consists of high-quality tools and equipment such as a digital pressure display with mains charger, a pressure sensor module with rail pressure sensor, connecting lines, additional tanks, threaded rings and various cones, which ensure the adaption is highly flexible and guarantee that the correct connection is available for any vehicle.

The Diesel Set 3.1 has been designed for pressure up to 2,000 bar, the set can therefore also be used to test the latest common rail systems. The pressure sensor with integrated rail pressure sensor that is included in the set comes equipped with two connections that allow measurements to be taken whilst the engine is running.
