Wilkinson Star Jasic Plasma Air Cut 25

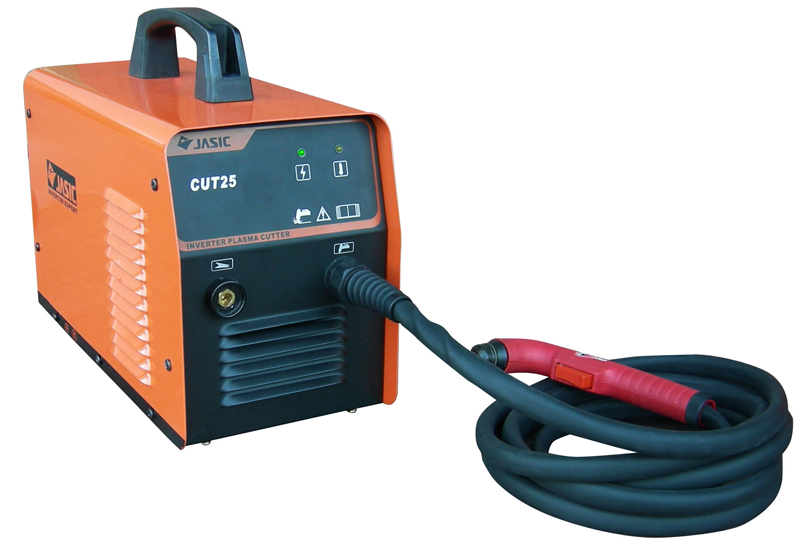

Wilkinson Star Jasic Plasma Air Cut 25 with Integrated Compressor

The Jasic Air Cut 25 with an integrated air compressor offers a practical all-in-one solution for site maintenance and bodyshop professionals. Equipped with pulse width modulation technology this user-friendly plasma offers fast, smooth and precise cutting up to 6mm on low carbon steel, stainless steel and aluminium.

Features

• Economical all-in-one solution for site maintenance and bodyshops
• PWM technology with high-power MOSFET switching devices
• Singular PCB for improved efficiency and maintenance
• No high frequency start to reduce EMI emmisions
• Contact and non-contact arc ignition
• Pilot arc 'auto time control' greatly reduces torch nozzle wear
• Increased productivity - 1.8 x faster than oxy-acetylene cutting
• High performance integrated air compressor
• Power and overheat LED indicators
• Extremely compact and portable design
• Single phase input - 25 amps @ 35% duty cycle
• Cuts a maximum 6mm
• Includes: Cutting torch and earth return lead CE Approval
• 5 Year Warranty (Subject to product registration & terms)

Technical Specification

• Input Voltage AC 230V - 50/60 Hz
• Input Power (kVA) 6
• Input Current (Amps) 25
• Duty Cycle @ 35% (A) 25
• Cutting Capacity (Clean) 4mm
• Cutting Capacity (Severance) 6mm
• Protection/Insulation Class IP21 S/F
• Dimensions (mm) 430 x 199 x 335
• Weight (Kg) 18
