VTEQ Heavy Duty / Commercial Roller Brake Testers

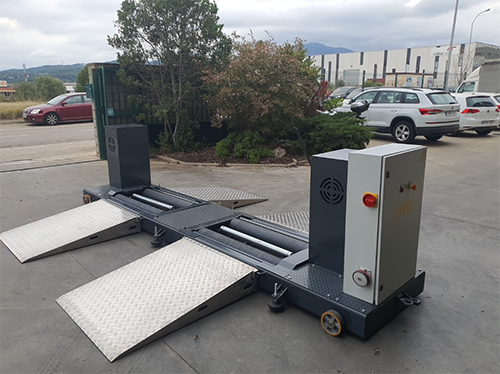

VTEQ 9000 Mobile Commercial Roller Brake Tester
The Brake 9000 Mobile range offers as standard all the features required to carry out Commercial Brake Testing. These include Roller Lock, Soft Start, bi-directional, 4WD, automatic weighing, remote control, 2.2KW,4.8KW, 11KW & 15KW Motor-gearboxes, robust work station, PC package complete with 23” Monitor, Tablet operation and the latest DVSA software.
Specification
- Size: 4330 x 1210 x 196mm
- Max: Axle Weight: 20 Tonne
- Weight: 2 x 450kg
- Roller size: 1100 x 160mm
- Roller separation: 430mm
- Test Speed: 2.12km/h
- Relative humidity: <95%
- Test speed: 2.5km/h
- Friction Coefficient: Dry> 0.8, Humid > 0.6
- Measurement range: 0-4,000kg
- Power Supply 3 x 400V 50/60 Hz
- Working Conditions: Temp-5++40°C
Features
- Motors: 2 x 2.2KW, 4.8KW, 11KW or 15KW
- Guaranteed to get out rollers first time every time, safely
- Bi-directional
- 4x4 Programme
- Automatic weighing system
- 18/20t axle weight
- Soft start operation
- Emergency stop button
- Full PC package as standard
- One-man operation/Tablet
- DVSA and GEA approval pending

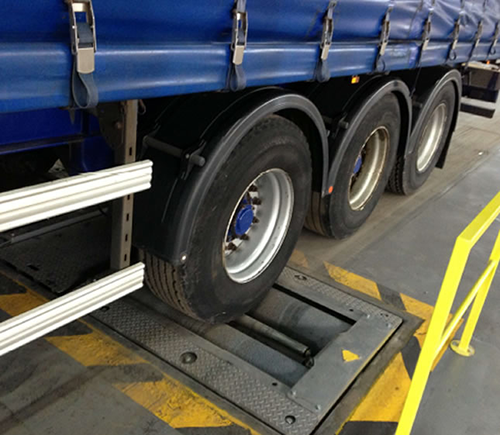

Vteq 7000 Commercial ATF Roller Brake Tester
Heavy duty vehicle roller brake tester 18t bi-directional. In VTEQ we take special care in the selection of materials and processes for the manufacturing of Heavy Duty Vehicles brake testers. Aware of the importance of durability in this type of equipment, the VTEQ range of heavy duty vehicles is especially suitable for intensive use and high wear resistance.
The Brake 7001, HGV/ATF DVSA approved, offers as standard all the features required to carry out commercial brake testing. These include Roller Lock, Soft Start, bi-directional, 4WD, automatic weighing, remote control, Nord Motor- gearboxes, Robust work station, PC package complete with 23” Monitor and Tablet operation, DVSA database. Options include space saving consuls, remote access, complete installation frames, shock absorber and side slip add on.
Specification
- Size: 2 x 1.140 x 1.427 x 650mm
- Max: Axle Weight: 18 Tonne
- Roller size: 1.150 x 271mm
- Roller separation: 475mm
- Test Speed: 3km/h
- Motors: 2 x 11kW
- Friction Coefficient: Dry> 0.8, Humid > 0.6
- Measurement range: 0-40 kN
- Power Supply 3 x 400V 50/60 Hz
- Working Conditions: Temp -5 - +40°C
- Relative Humidity < 95%
