Crypton Roller Brake Testers
Crypton Roller Brake Testers
Crypton's Automated Brake Testers are approved for class IV & VII mot testing and meet the latest DVSA connectivity requirements, meaning your brake tester will be connected to the DVSA website and automatically send the brake test results when the MOT brake test is completed.
Crypton Automated Brake Testers are easy and efficient to use and come with a 3 year warranty, giving you confidence in the quality and reliability. It has an integrated weighing system that automatically calculates the braking efficiency of a vehicle quickly and accurately.

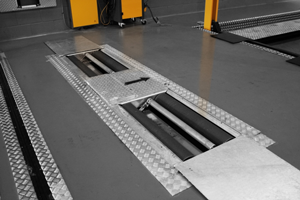

Designed with a dimpled roller surface for maximum tyre protection and a coefficient similar to the road surface for accurate results. Easy and efficient to use with a user-friendly remote.
| Class IV | Class VII | |
|---|---|---|
| Maximum axle weight | 4000kg | 4000kg |
| Max brake force per wheel | 600kgf | 1250kgf |
| Test speed | 5km/h | 2.62km/h |
| Roller diameter | 182mm | 200mm |
| Roller length | 700mm | 1000mm |
| Roller surface | plastic/emery coating | plastic/emery coating |
| Width of axle to be tested | 800 - 2200mm | 800 - 2200mm |
| Supply fuse | 25 AT | 25 AT |
| Electrical connection | 3 phase 400/50 V/Hz | 3 phase 400/50 V/Hz |
| Maximum distance between roller set and control box | 12m | 12m |
£11595.00 + VAT P/No. : cryclass4atl
|
£12895.00 + VAT P/No. : cryclass7atl
|
