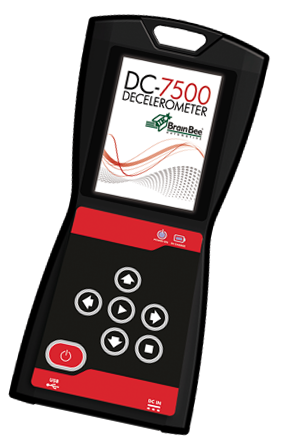

Brain Bee DC-7500 UK Decelerometer

Brain Bee DC-7500 UK Decelerometer

The DC-7500 decelerometer from Brain Bee takes portable brake testing to new levels of technology and accuracy. The DC-7500 is fully approved for DVSA MOT testing and incorporates the latest connected technology to meet the latest DVSA connected MOT bay requirements.

The DC-7500 comes complete with a suction bracket for quick mounting and has an optional handlebar bracket for motorcycles. The decelerometer is quickly set up with intuitive and quick select menus. Once prepared, a road test is completed to record the braking efficiencies and results. The results are displays on a large clear screen.

Once returned to the workshops the results will be automatically uploaded to a PC, where being used in a connected MOT bay the results are seamlessly sent to the DVSA portal.

Every MOT station needs to have a fully calibrated Decelerometer Brake Tester as a part of its registered equipment. If you are looking to replace or update your Decelerometer, the Brain Bee DC-7500 offers excellent features with the latest technology.

The DC-7500 can be used for motorcycle, 3 wheeled trike/quad, car & van testing.

Another feature of the Brain Bee DC-7500 is its ability to act as a brake tester for truck,bus and commercial vehicles, agricultural machinery, plant and trailers. As a part of regular servicing and periodic inspections, the results can be uploaded and printed on an A4 results page for storage with the vehicle inspections.

As a part of a regular service schedule, operators of commercial vehicles should carry out brake efficiency tests between annual MOT tests to ensure the braking system is operational and efficient. The Brain Bee is an excellent choice to carry out these tests.

The Brain Bee DC-7500 is covered by a 2 year warranty.

Calibrations can be carried out simply and efficiently by contacting the Hickleys GE service team on 01823 328530

Characteristics

Detected Values

• Max Average Pedal Force
• Medium Average Deceleration
• Braking Times (Start, End, Duration)
• Initial Speed
• Covered Distance

Settable Parameters

• Pedal Force Trigger (No For Uk Verison)
• Pretrigger (10% Of Total Test Time)
• Test Duration (5 Or 10 Sec.)
• Sampling Time
• Calculation Method (Directive 98/12/Ec) Or For Agricultural Machinery

Memory

Up To 8 Records For Free Tests;

Display

Lcd Display Tft Color 3,5” 320 X 240 700 Cd/M2

Keypad

Soft Touch (Power On Included)

Printer (Optional)

• 24 Columns Dot
• Matrix Printer
• Thermal Paper. Paper
• Width 57.5 Mm

Power Supply

Inner Li-Ion Battery Pack With Battery Charger Supplied With The Tool

Operating Temperature

5° C ¸ 40° C

Dimensions And Weight

• 210 X 100 X 35 Mm
• 400 G

Printout Report

The report can either be printed through:

• DC-7550 Bluetooth printer (Optional)
• Direct connection to the PC via Bluetooth

Standard Configuration

• Main unit with Integrated Accelerometric Sensor
• Standard cable
• Power charge
• Suction cup mount
• Quick guide

Optional Configuration

• DC-7550 Bluetooth Printer
• Handlebar Mount
• Carpet Support

Optional Extras

DC-7500 Bluetooth printer

Handlebar Bracket

A bracket to secure DC-7500 to motorcycle handlebars.
