MultiScan Fi Chassis Dynamometer

MultiScan Fi Chassis Dynamometer

MultiScan Fi Versatile Chassis Dynamometer

MultiScan is a chassis dynamometer test bench designed to control and optimise the performance of vehicles under dynamic operating conditions. MultiScan is a high performance diagnostic tool which also offers a wide range of teaching applications for colleges and technical training centres.

It can be installed in a pit or just on the workshop floor by adding a front frame.

AC dyno option & Driver Aid for road load simulation.

  • 1 or 2 rollers with EC or AC dyno
  • Easy to use
  • 1WD or 2WD vehicle
  • Powerful and user friendly software
  • 100% digital road load simulation control
  • Safe and reliable

MultiScan X1

Single Roller for Motorbike - MultiScan X1 is a motorbike chassis dyno, designed to optimise your test through a very intuitive and simple process.

3 Locking Devices

LIGHT : front wheel is locked using strap

LIGHT : front wheel is locked using strap

Vehicle installation : The vehicle front wheel is locked inside two V shaped supports, which secure it in an upright position. The wheel is clamped using a strong, safe, tightened straps. The operator then adjusts the wheelbase using a screw mechanism. A locking system secures the vehicle’s position in order to guarantee stability during testing. Straps fixed to the rear of the vehicle finalise the loading operation and ensure its safety during testing.

EASY : pneumatic clamp for easy installation

EASY : pneumatic clamp for easy installation

Loading the vehicle : The vehicle is brought forward in a V shaped track until automatically detected and clamped, securing it by the front wheel. Elapsed time : 5 seconds! ... without getting out of the saddle ! Using the RCU, the operator is able to control the electric jack that sets the wheelbase and precisely positions the vehicle’s rear wheel over the test bed roller.

AUTO : Perfect Thermal Conditions

AUTO : Perfect Thermal Conditions

Integrated equipment : A blower with a capacity of 9000 m3/h ensures protection of the vehicle against overheating the engine, the exhaust system and the transmission. This also guarantees the repeatability of measurements by maintaining a stable vehicle temperature during testing.

MultiScan X2

MultiScan X2

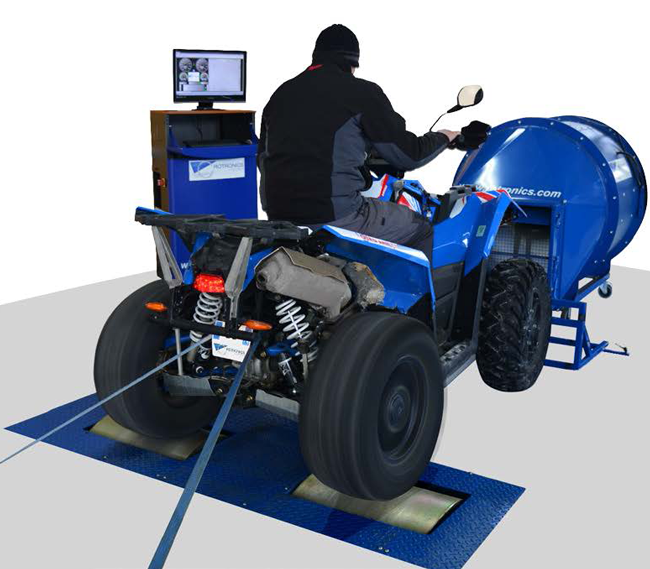

X2 Dyno for motorbike, ATV, SSV and Micro Car - MultiScan X2 is the most versatile chassis dyno with low inertia to test motorbike, ATV, SSV, Karting, even thermal or electrical car. It is maximizing your investment.

2 Types of Locking Devices

LIGHT : front wheel is locked using strap

Vehicle installation : The vehicle front wheel is locked inside two V shaped supports, which secure it in an upright position. The wheel is clamped using a strong, safe, tightened straps. The operator then adjusts the wheelbase using a screw mechanism. A locking system secures the vehicle’s position in order to guarantee stability during testing. Straps fixed to the rear of the vehicle finalise the loading operation and ensure its safety during testing.

Specific Locking Devices

We design according to your vehicles strains.

Downloads

MultiScan Brochure
