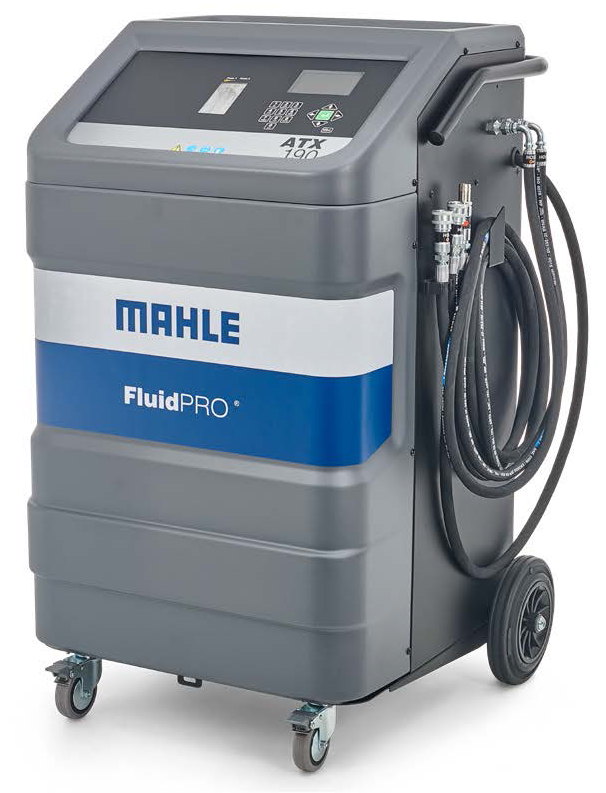

Mahle FluidPRO ATX 190 Gearbox Oil Service
Mahle FluidPRO ATX 190 Gearbox Oil Service
According to the Mercedes-Benz service manual, the automatic transmission oil must be changed regularly. The MAHLE FluidPRO® ATX 190 meets all requirements and is developed for Mercedes-Benz and approved by Mercedes-Benz.
The rinsing of the gearbox as well as the replacement of the oil with the MAHLE FluidPRO® ATX 190 is therefore carried out for service operation:
- exactly according to the process specified by Mercedes-Benz
- fully automated
- simple, clean and fast
With the right equipment, gearbox flushing is an easy task
- Simple and intuitive operation guides you quickly and completely through the automatic service including step-by-step instructions through the manufacturer-specific cleaning process.
- Comfortable gearbox flushing and complete oil replacement is carried out exactly according to Mercedes-Benz specifications.
- The rinse only with oil - no use of additives.
- Remote app supports productivity in the workshop.
- Visualisation of the process steps directly on the device display or via app on your smartphone, whether you are in front of or in the vehicle.
- Quick change of oil variety through replaceable oil canisters and ensuring oil grade purity through internal rinsing process (zero-cross).
- Automatic detection and adaptation to flow direction.
Please Call Us on 01823 328531 for Prices
Technical Specification
Control | Software-controlled with 4.1“ color display and keypad |
---|---|
Rinse filter | MAHLE Filter for rinsing/cleaning and new oil supply |
Sight glasses | Visual inspection of oil quality |
Filter check | Permanent filter monitoring and indication of impending change |
Zero-Cross | self-cleaning after oil grade change |
Hoses | 2 x 3 m (service hoses), 1 x 2.5 m (for draining the waste oil) |
Quick couplings | Direct connection to the orig. Mercedes-Benz rinsing adapter |
Software Update | USB Type A (with USB 2.0 key) |
Top grid | collected residual oil quantities are weighed |
Oil pump | Oil pump 2 x hydraulic oil pumps of 10 l/min each; PWM - Pulse Width Modulated |
Tool tray | Stable metal box for adapters, tools, etc. |
Menu languages | DE, EN, IT, FR, ES, PL, PT, RU, SR, BG, CS, EL, FI, HU, NL |
Power supply | 110/230 V, 50-60Hz |
Service | USB Typ B (Direct PC Connection) |
Smartphone App | FluidPRO® ATX Remote Viewer |
Dimensions/ weight (H X B X T) | 121 x 74 x 74 cm, 75 kg |
