With the increasing amount of Automatic transmission vehicles in the market the need to offer a professional service to exchange the gearbox oil is increasing dramatically. This presents a new opportunity for garages that want to offer a professional service and build an additional revenue stream.
The Brain Bee AGC range offers a sophisticated and accurate automated program with an automatic step by step procedure driven by a comprehensive vehicle database. The easy-to-use instructions guides you through the connections required and the procedure to complete using the adapters from the popular adapter kit.

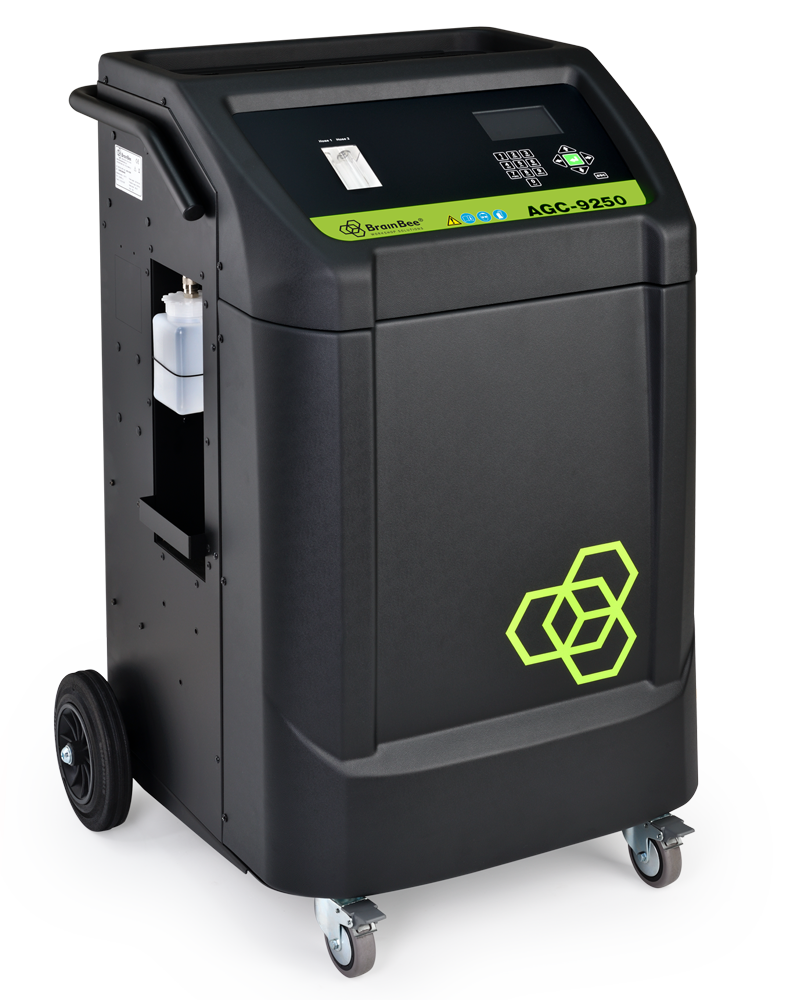

AGC-9250
Small, but powerful. Ideal for bringing ATF transmission service to the shop for the first time.As in the most advanced model, sophisticated electronics guide all phases of operation, activating the special functions that optimize the final result.
Integrated database with technical information (oil quantity, oil type, tightening torques, oil filter code) and indication of the type of fittings to be connected to the gearbox. The station enables the automatic detection of oil flow direction in the transmission and prevents any damage to the system.
The exclusive software that guides the recovery/recharge processes (patented) allows for maximum performance on every type of ATF transmission.
Also in the AGC-9250, the new ATF Remote Viewer App (optional) can be activated, allowing the operator to freely control all running steps.
Maximum control over new oil contamination is guaranteed by the Zero Cross-Contamination function (internal flushing of the circuit and external hoses), as well as by the interchangeable oil canister replacement system.
Key Features
- Automated and manual procedures
- 4.3” colour display & keyboard
- Comprehensive Vehicle database
- Step by step guided oil exchange procedure
- Oil change, flush and exchange programs
- Zero cross contamination
- Adapter kit 1 – 17 included.
Technical Data
| Control | Automatic, Software-assisted with 4,3" Color Touch Display, keyboard |
|---|---|
| New oil filter | 90µ mesh filter |
| Sight glasses | visual inspection of oil quality |
| Dipstick Function | Integrated with hoses ø6mm and ø10mm |
| Zero Cross Contamination | Circuit cleaning function after oil type change |
| Hoses | 2 x 3 m (service hoses) |
| BOOST function | - |
| Service report print function | Export to USB flash drive |
| Upper grate | Grate |
| Oil pump | 1 10 l/min, PWM-controlled |
| Menu languages | 15 different languages |
| Power supply | 110/230 V, 50-60Hz |
| Service and Software Update | USB Type A | USB Type B |
| Smartphone App | ATF Remote Viewer |
| Dimensions/ weight (H x L x W) | 120 x 74 x 74 cm, 62 kg |
Brain Bee Adapter Kits
Kit 1 Adapters 1- 17 - Included with AGC
Contains the following adapters
| No. | Models | Variants | |
|---|---|---|---|
| 1 | BMW, VOLVO, MERCEDES-BENZ, AUDI, RENAULT, SAAB, FORD | Various Transmission Type |  |
| 2 | BMW, AUDI, RENAULT, SAAB, FORD, RANGE-ROVER, JAGUAR | Various Transmission Type |  |

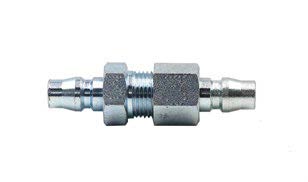

| 3 | AUDI, VOLKSWAGEN, JEEP | Various Transmission Type |  |

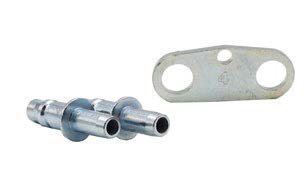

| 4 | OPEL, SUBARU, MAZDA, CITROEN, RENAULT, ALFA ROMEO, LANCIA | Various Transmission Type |  |
| 5 | AUDI, BMW (8 SPEED), JAGUAR, LAND-ROVER, ALFA ROMEO, JEEP, IVECO | ZF |  |
| 5A | BMW (8 SPEED) D. 18mm | ZF |  |
| 6 | JEEP, FIAT, CHRYSLER, MERCEDES-BENZ, SUBARU | Various Transmission Type |  |
| 7 | AUDI, MERCEDES-BENZ, MITSUBISHI | Various Transmission Type |  |
| 8 | JAGUAR, MERCEDES BENZ, SSANGYONG | Various Transmission Type |  |

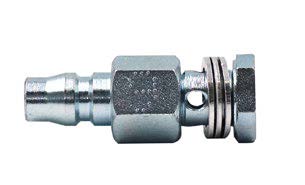

| 9 | JAGUAR, MERCEDES BENZ, MITSUBISHI, SSANGYONG | 5-SPEED |  |

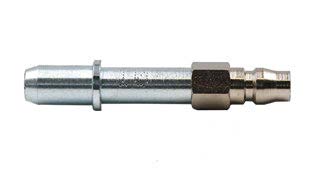

| 10 | JAGUAR, FORD, MAZDA | 5-SPEED |  |

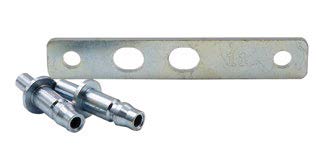

| 11 | VOLKSWAGEN, AUDI, MITSUBISHI | ZF |  |
| 12 | AUDI, VOLKSWAGEN, PORSCHE, LEXUS, MITSUBISHI | AISIN /ZF |  |

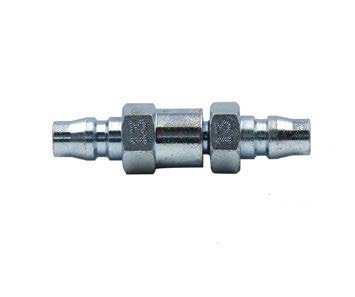

| 13 | VOLVO | Various Transmission Type |  |

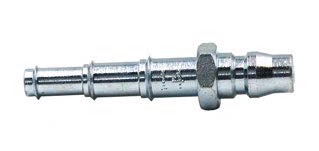

| 14 | HYUNDAI, TOYOTA, KIA, MITSUBISHI, ISUZU | Various Transmission Type |  |
| 15 | PIPES FOR GENERAL USE Diameter 10 - 13 - 15 mm |  |
|
| 16 | AUDI, VOLKSWAGEN, SEAT, SKODA | DSG VW |  |
| 17 | JEEP, FIAT, ALFA ROMEO, OPEL, CITROEN | AISIN |  |
Kit 2 Adapters 18 - 33
Kit 2 is an optional accessory kit available to purchase separately.
Kit 2 contains the following adapters :
| No. | Models | Variants | |
|---|---|---|---|
| 18 | RENAULT, MITSUBISHI, NISSAN | Jatco / Multitronic |  |
| 19 | FIAT, JEEP, LAND-ROVER | ZF |  |
| 20 | TRANSMISSION DIPSTICK FORD, JEEP, DODGE |  |
|
| 21 | MERCEDES-BENZ, RENAULT | DSG Mercedes |  |
| 22 | FORD, RENAULT, PEUGEOT, VOLVO | POWERSHIFT |  |
| 23 | TOYOTA, SUZUKI, MAZDA | CVT |  |
| 24 | FIAT, CITROEN, PEUGEOT, RENAULT | 4-Speed |  |
| 25 | AUDI (Q7/A8), BMW | ZF / CVT |  |
| 26 | MITSUBISHI PAJERO | 4-Speed |  |
| 27 | AUDI | Various Transmission Type |  |
| 28 | GM | Various Transmission Type |  |
| 29 | JEEP, DODGE, OPEL, GM | 4-Speed |  |
| 30 | JEEP | 5-Speed |  |
| 31 | RENAULT | Various Transmission Type |  |
| 32 | QUICK COUPLER 90° (2 pcs) |  |
|
| 33 | Dipstick for MERCEDESBENZ, CHRYSLER |  |
Kit 3 Adapters 34 - 47
Kit 3 is an optional accessory kit available to purchase separately.
Kit 3 contains the following adapters :
| No. | Models | Variants | |
|---|---|---|---|
| 34 | JEEP, MITSUBISHI, MERCEDES GLK, GM, SUZUKI, TOYOTA | Various Transmission Type |  |
| 35 | VOLVO XC60, V60 | AISIN |  |
| 36 | MERCEDES-BENZ CLK, C, AMG | 5-Speed |  |
| 37 | CITROEN, PEUGEOT | Various Transmission Type |  |
| 38 | GM, FIAT, FORD, JEEP, CHRYSLER VOYAGER, SAAB, MERCEDES ML | Various Transmission Type |  |
| 39 | BMW-JAGUAR | Various Transmission Type |  |
| 40 | GM, DODGE RAM | Various Transmission Type |  |
| 41 | PEUGEOT, CITROEN, VW, FIAT DUCATO | ZF |  |
| 42 | VOLVO, MINI, BMW | AISIN |  |
| 43 | VOLVO | AISIN |  |

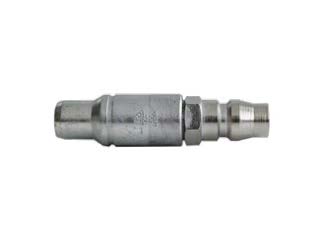

| 44 | MERCEDES, JEEP, FIAT | 9 Gtronic |  |
| 45 | PEUGEOT, CITROEN | AISIN |  |
| 46 | BMW X1 | Various Transmission Type |  |

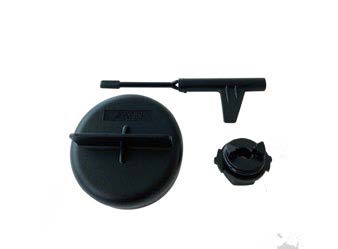

| 47 | MERCEDES Level Tool | 9 Gtronic |  |
Kit 4 Adapters 48 - 60
Kit 4 is an optional accessory kit available to purchase separately.
Kit 4 contains the following adapters :
| No. | Models | Variants | |
|---|---|---|---|
| 48 | PEUGEOT | AISIN |  |
| 49 | JEEP FREEMONT | Various Transmission Type |  |
| 50 | RENAULT LAGUNA III, ESPACE IV | Various Transmission Type |  |
| 51 | AUDI | CVT |  |
| 52 | AUDI A8 | ZF |  |
| 53 | AUDI | DSG 7-Speed |  |
| 54 | MAZDA | 6-Speed |  |
| 55 | NISSAN JUKE (2011 - 2014) | CVT |  |
| 56 | NISSAN JUKE (2014 - 2019) | CVT |  |
| 57 | FIAT-CITROEN- PEUGEOT | AISIN |  |
| 58 | LAND ROVER-VOLVO | ZF |  |
| 59 | PEUGEOT-BMW-MINI | Various Transmission Type |  |
| 60 | PEUGEOT-VOLVO | AISIN |  |
