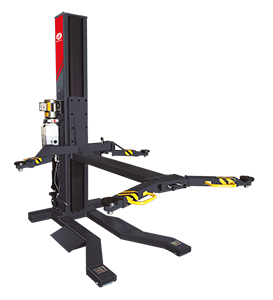

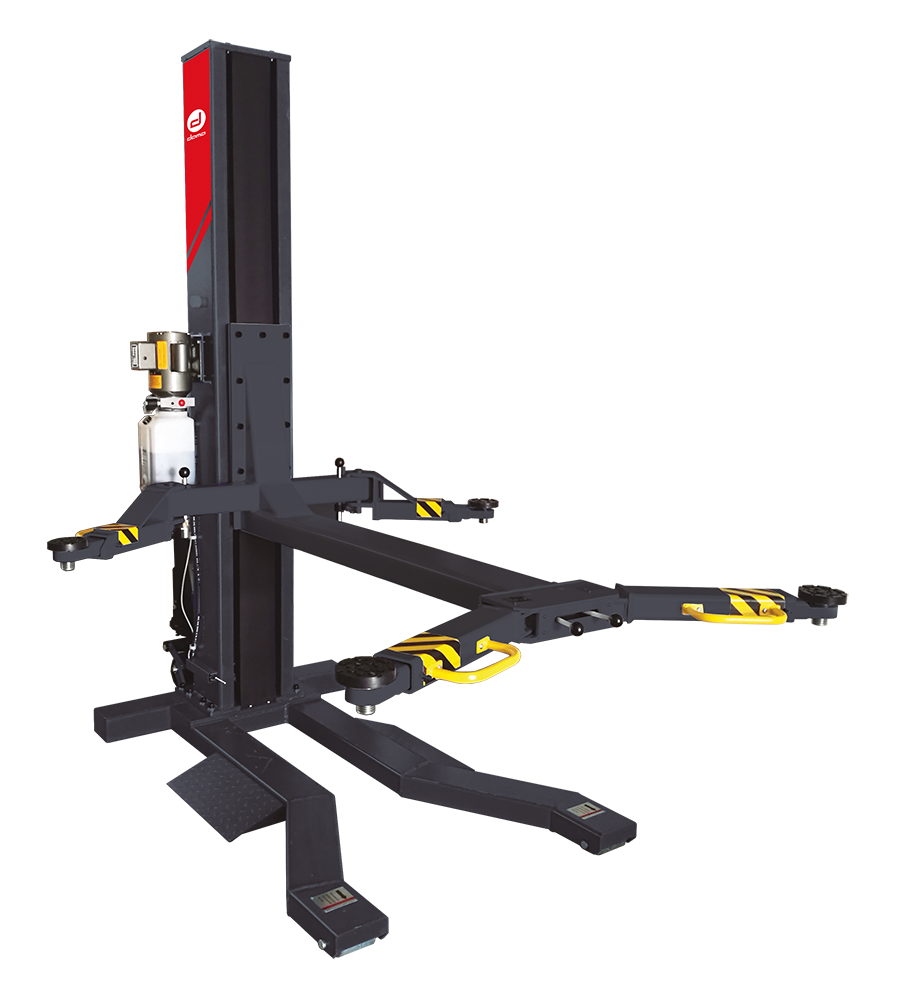

Dama HDM2.5Y 1 Post Lift

Dama HDM2.5Y 1 Post Lift

Dama HDM2.5Y 1 Post Lift

A superbly versatile mobile single post lift with a 2.5 tonne lifting capacity.

This lift is easily maneuvered around the workshop with a bulit-on trolley style handle and large wheels. The electro-hydraulic operation operates on a single phase supply, has a low 115mm pick up height and comes complete with 50mm and 100mm extensions.

Price includes delivery and installation.

Only £2995.00 + VAT
P/No. : hdm25y
QTY :
Lease From £16.24 Per Week
Click Here for Details

Technical Specification

Maximum Lifting Weight 2500Kg
Total Height 2600mm
Total Width 2122mm
Total Length 2577mm
Lifting Height 115mm - 1760mm
Frontal Arms Scope 1057mm - 1983mm
Rear Arms Scope 800mm - 2122mm
Extensions 50mm; 100mm;
Rubber Pads 17mm
Power Supply 220V / 1ph / 50Hz / 2.2KW 30 Amp
Lowering Time 53 seconds
Net Weight 693Kg
Warranty 14 Months

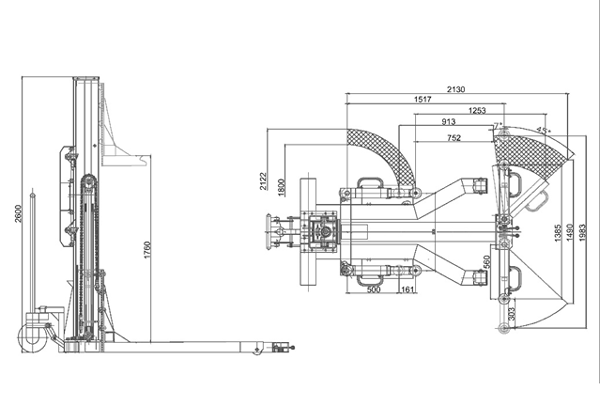

Drawings

Dama HDM2.5Y 1 Post Lift

Downloads

Dama Brochure
