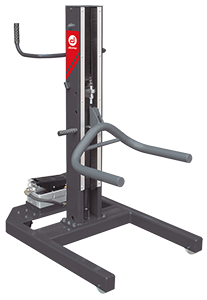

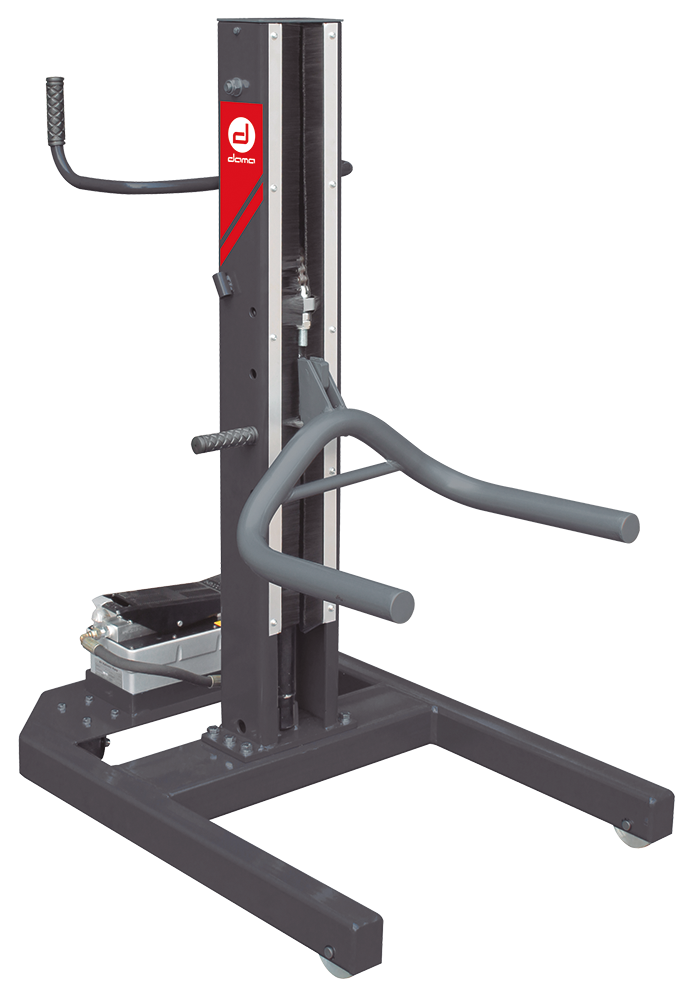

Dama HDM1.36L Mobile Single Wheel Side Lift

Dama HDM1.36L Mobile Single Wheel Side Lift

Dama HDM1.36L Mobile Single Wheel Side Lift

Single wheel side lift with pneumatic operation.

Simply slide the wheel fork under the desired wheel and activate the lift.

Only £995.00 + VAT
P/No. : hdm136l
QTY :
Lease From £5.40 Per Week
Click Here for Details

Features

  • Capacity - 1360kgs
  • Max vehicle weight - 2720kgs
  • Lifting range - 102-750mm
  • Overall height - 1320mm
  • Air pressure range - 4-8bar
  • Net Weight - 127.5kgs
  • Requires compressed air supply
  • Supply only - No installation required
  • 14 months warranty



Technical Specification

Maximum Lifting Weight 1360Kg
Lifting / Lowering Time < 30 secs
Warranty 14 Months

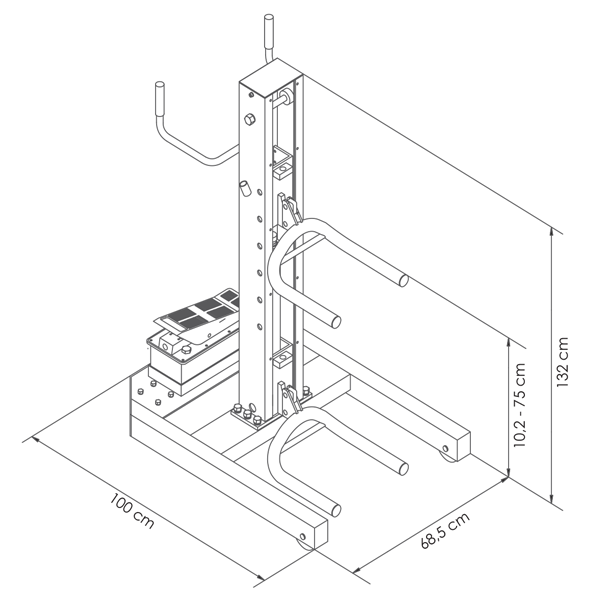

Drawings

Dama HDM1.36L Mobile Single Wheel Side Lift

Downloads

Dama Brochure
