Beissbarth Q-Lign T.41 Wheel Alignment

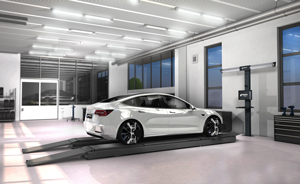

Q.Lign T.41 with floor mounted support column, turnplates and MultiFit wheel clamps
- Operation via 27" monitor
- Perfect for independent workshops and tire shops.
Ultimate productivity - vehicle after vehicle
The T-Series builds on the existing Q.Lign platform and focuses entirely on wheel alignment. With Q.Lign T.41, workshops raise the bar even higher and can thus exploit their full service potential.
Measuring at the highest level
- Camera beam measures permanently from a height of 2.8 meters
- No motor, no winch, no wear and tear
- No up, no down, no injuries or damage
- No movement, no matter if short or long wheelbases
Everything perfectly in sight
- Four wheels, four cameras
- Separate camera for the rear axle for more accurate toe values on the front axle
- Install anywhere within 1.8 to 3.3 meters of the front axle
- Measure and adjust from 0 to 2 meters platform height at any time
Work smarter, not harder
- Measurement starts directly with attachment of the targets to quickly determine accident vehicles
- All targets work on any wheel reduces setup times and setup errors
- Active MEMS Technology: Constant measurement against gravity for uncompromising accuracy
- Caster sweep at floor level without the need for a stool or ladder
- Access to clear and easy-to-understand PDF reports from anywhere inside your shop
The world's first web-based wheel aligner
- Eliminates need for trolley and PC and creates more space
- Incredibly efficient with up to 95% power savings compared to PC-based systems
- Stream-to-X: Access software on any TV, PC, laptop, tablet or smartphone
- Intuitive software, streamlined operations, more productivity
- Easy integration of Q.Lign into your shop's daily processes and systems
Full speed, without compromising on precision
- Powerful software with optimized workflow for the entire wheel alignment process
- Reduced runout process for more productivity
- 3D camera technology produces highly accurate realtime measurements
Space requirement
- Minimum height of 2800mm
- Minimum clearance of 2800mm on four-post lifts
Scope of delivery
- Camera beam with 4 cameras
- Column with tray
- Q.Lign display module
- 4x targets with AutoID
- 27" monitor, keyboard, mouse
- Brake lock and steering wheel lock
- Front turnplates and filling pieces
- MultiFit wheel clamp (13"-22". optionally up to 27")
- Storage for MultiFit
Technical Data
| Weight | 119 kg |
|---|---|
| Packaging unit | 1 Piece(s) |
| Power supply | 90-264V | 1Ph | 47-63Hz |
| Individual toe front/rear axle | Yes |
| Total toe | Yes |
| Toe-out on turns | Yes |
| Camber front/rear axle | Yes |
| Caster | Yes |
| SAI | Yes |
| Set-back | Yes |
| Thrust angle | Yes |
| Sensor count | 4 Piece(s) |
| Data transmission type | kabellos |
| Measuring system | 3D mit Messbalken (fixiert) |
| Max. clamping capacity | 22 " |
| Display size | 10 " |
| Power consumption | 65 W |
| Set-up width | 2595 mm |
| Wheel base | 1750 - 4600 mm |
| Rollback compensation | Yes |
| Individual toe front axle | Yes |
| Individual toe rear axle | Yes |
| Camber front | Yes |
| Camber rear | Yes |
| Set-back front axle | Yes |
| Set-back rear axle | Yes |
| Geometric centre line | Yes |
| Included angle | Yes |
| Ride height modified vehicle specs | Yes |
| Vehicle dimensions live | Yes |
| Set-up height | 2745 mm |
| Packaging length | 2950 mm |
| Packaging width | 820 mm |
| Packaging height | 540 mm |
| Gross weight | 170 kg |
| Country of Origin, customs | DE |
| Min. clamping capacity | 13 " |
| Number of languages (software) | 30 |
| Distance camera - center of turntable | 1800 - 3300 mm |
| Clearance front posts of lift min. | 2800 mm |
