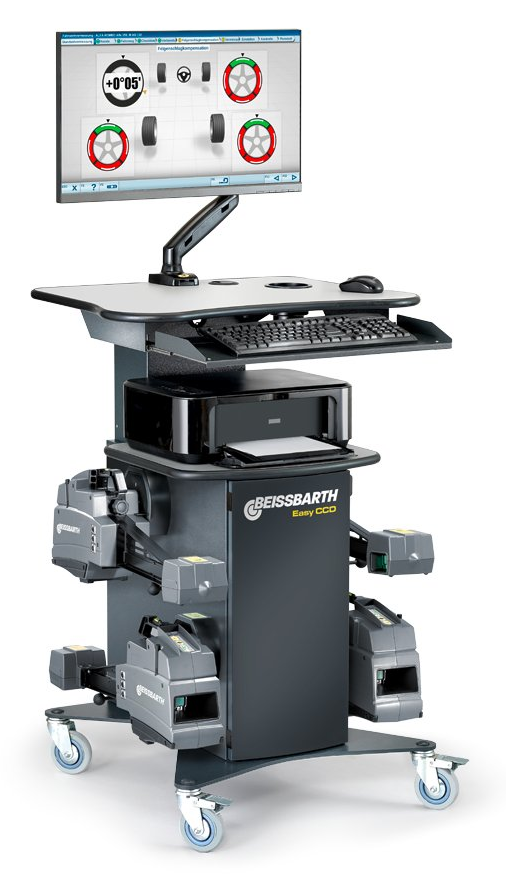

Beissbarth CCD+ Wheel Alignment
Wheel alignment using CCD measuring technology is the ideal entry-level solution by Beissbarth
- Economical, flexible, space-saving
- With cabinet, HighPerformance PC, 27" monitor and printer
- Incl. turntables and wheel clamps
Perfectly integrated into ADAS calibration and head light testing:
- The space in front of the lift can be used for ADAS calibration boards and head light tester
- Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle
- No need for extra cameras, cables, or clamps required for ADAS calibration
Best in class: +/- 2 minute accuracy:
- 360° measurement field for permanent self-check and adjustment of system to movement and vibrations
- Rolling runout compensation eliminates time-consuming raising of vehicle and single-wheel compensation
- No calibration to a specific lift allows a measurement on any wheel alignment bay
- Wireless data transfer and integrated battery enable full mobility and allow the use of Windows tablets or Laptops
- Intelligent and space-saving charging solution that can be mounted on any wall
- Quality made in Germany

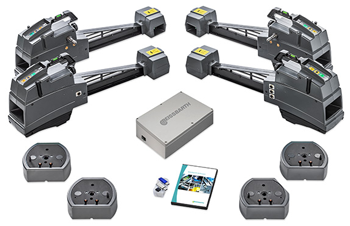

- Also available as kit version; ideal for already existing alignment bays
Scope of delivery:
- Sensor head with encoder and battery power
- +Software with SmartTest for direct reception and ADAS calibration Option
- Vehicle specs database
- Cabinet with HighPerformance PC
- 27" monitor
- Printer
- Multi-fit wheel clamp 13" - 22" with standard and Softline claws
- Mechanical Turntables without electronics
- Brake pedal depressor and steering wheel holder
- Emergency cable set
Technical Data
| Operating temperature | 5 - 40 °C |
|---|---|
| Storage temperature | -20 - 60 °C |
| Relative humidity, use | (40 °C) 10 - 90 % |
| Height cabinet | 1520 mm |
| Width cabinet | 880 mm |
| Depth cabinet | 770 mm |
| Weight cabinet | 80 kg |
