MaxiSYS Ultra Diagnostic Tester

MaxiSYS Ultra Diagnostic Tester

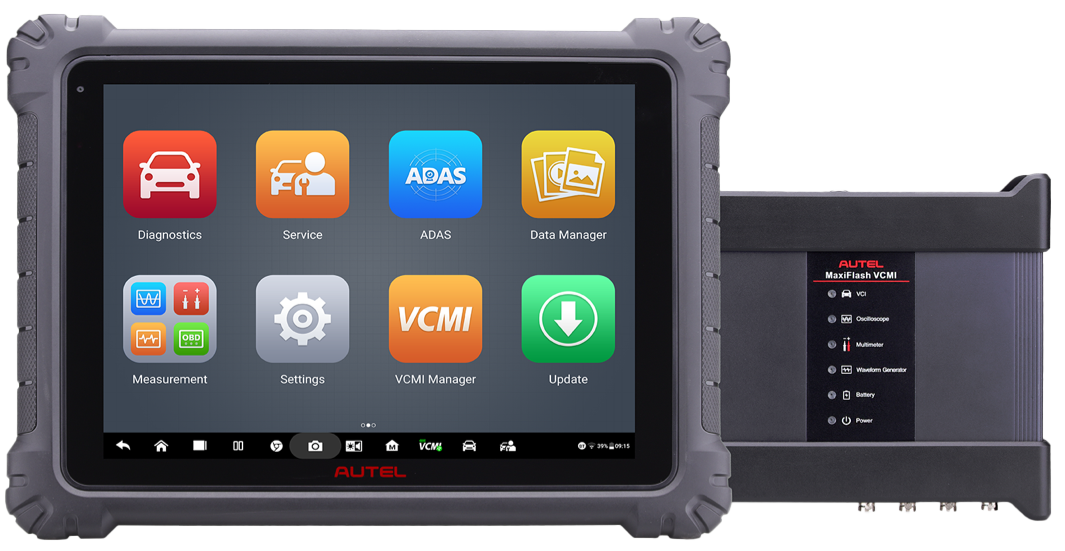

The MaxiSYS Ultra represents Autel's most ambitious diagnostic tablet to date, custom-crafted for discerning automotive professionals. It boasts a capacious 12.9-inch touchscreen, utilising the Android platform for its core operations, and is driven by a potent Octa-core processor (comprising a 2.3GHz Quad and a 1.7GHz Quad). Moreover, it offers a substantial 256GB of built-in memory, making it well-equipped for intensive diagnostics tasks.

One of its standout features is the MaxiFlash VCMI, a versatile 5-in-1 communication and testing tool, which facilitates wireless communication between the tablet and the vehicle. It extends its support to the latest communication protocols, including DoIP, D-PDU, and Mega CAN. This versatile VCMI also serves as a 4-channel oscilloscope, waveform generator, multimeter, and CanBUS tester, adding to its arsenal of diagnostic capabilities.

What sets the Ultra apart is its advanced approach to vehicle diagnostics, characterised by dynamic topology module mapping for supported vehicles. Additionally, it incorporates the Intelligent Diagnostics feature, offering a seamless transition from diagnosing trouble codes to the repair and testing phases. This feature provides comprehensive repair data accompanied by illustrative guides, and it also includes preset oscilloscope guides, tests, and access to a waveform library.

Furthermore, the Ultra is geared for practicality with a rechargeable Lithium battery, providing a remarkable 8 hours of continuous usage. It comes with a convenient docking station, ensuring seamless charging and storage, and is equipped with both front and rear cameras. These features make it an indispensable tool for automotive professionals aiming to elevate their diagnostic capabilities.

Key Features

• 2 year Updates
• Large 12.9'' Touchscreen (2732 x 2048) / Android 7.0
• 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
• Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
• Oscilloscope Preset Guided & Component Tests / Waveform Library
• New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
• Split Screen Multi-Application Function / Dual Wi-Fi Connection
• Topology Module Mapping: Colour Coded All System Status Screen (on supported vehicles)
• Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
• Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
• Code-Related Technical Service Bulletins (on select vehicles) / Licence Plate Reader
• ScanVIN: Barcode or Text Recognition with Camera
• Secure Gateway Access: Authorised FCA SGM Access with AutoAuth Account
• Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
• Enhanced Diagnostic Reports: PreSCAN & PostSCAN
• 18000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front CameraExtensive vehicle coverage for more than 70+ US, Asian and European vehicle makes.
• Exceptional OE-Level system coverage for all electronic systems.
• Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.

Specification

• Android 7.0
• 2,3GHz + 1,7Ghz Samsung Exnos 8895v Octa-Core
• 256GB internal memory
• 4GB RAM
• 12,9" 2732 x 2048 TFT-LCD Corelle Glass
• Ultra fast power on
• 18,000mAh Lithium-Polymer Battery
• Oil and Water screen resistant
• DoIP and CAN-FD Compliant
• Remote Expert Compliant
• Secure Gateway approved by Vehicle Manufacturers

System Topology

With our Autel exclusive System Topology Software, the technician can see a colour coded topology display for all vehicle systems and their status on one page! The display shows the structure of communication between modules, and gives the ability to press on a system module to display any DTC's and access the system. Currently available on BMW, Ford, Volkswagen, Audi, GM, Ford, Chrysler, Nissan, Honda, Toyota Lexus, Jaguar, Land Rover, Mercedes Benz, Hyundai, Kia, Volvo.

Tool Case Includes

The Ultra Oscilloscope Contents includes:

• Scope Test Lead x 4
• Multimeter Test Lead x 2
• Attenuator x 2
• Breakout Lead x 4
• Multimeter Probe x 2
• Flexible Back-Pinning Probe x 2
• Back-Pinning Probe x 2
• Back-Pinning Probe Screw x 2
• Back-Pinning Probe Replacement Needle x 20
• Small Crocodile Clip x 2
• Large Dolphin Clip x 2

Our additional Oscilloscope Accessory Kit can be purchased separately and includes the further items of 1 x 65Amp Current Clamp, 1 x 650Amp Current Clamp, 1 x Coil On Plug Probe, 2 x HT Extension Leads and 2 x Battery Clips.

Ultra System convergence with the all new VCMI

The MaxiSYS Ultra and MS919 are supplied with the all new MaxiFLASH VCMI as standard. The VCMI is full convergence multi-functional Wi-Fi VCI with built in Oscilloscope, Multimeter, Signal Generator and OBD Bus Check Functions. Furthermore, it is the only Wi-Fi VCMI currently sold that supports D-PDU, RP1210, CANFD. J2534 and DoIP protocols.

Oscilloscope

The 4 Channel Oscilloscope is faster with 20MHz Bandwidth, more accurate with 80MS/s sampling data rate, and a 32M memory buffer that stores more complex signals, zoom and replay.

Our pre-set Guided Test and Waveform Library instructs technician's on use and fault analysis.

We also provide a large number of cloud pre-set cases, including connection diagrams, waveform library, reference waveforms, fault case analysis and one-press waveform settings.

Waveform Generator

The Waveform Generator is used to test a sensor, an actuator, or an ECU without the need to replace them one by one to identify the fault. This is done by simulating signals of various sensors and ECUs, identifying hardware issues.

• Simulates sensor signals to quickly diagnose ECU, sensor, and wiring harness issues;
• Simulates ECU signals to perform active tests to verify functions of certain parts (Electronic fan, solenoid valves etc);
• Simulates actuator signals and verifies the communication status between the actuator and ECU (Electronic fan, solenoid valve, headlight)

Multimeter

The professional Multimeter will measure Voltage, Current, Resistance, Diode, Frequency/Period, Duty Cycle, Connectivity and Pulse Width.

CAN Bus Check

The CAN Bus Check can quickly determine whether the OBD pins are functioning correctly.

J2534, DoIP Bus, CAN-FD Bus, RP1210 and D-PDU

The Autel VCMI supplied with the Ultra and MS919 supports all the very latest communication and application programming interface protocols.

EV Expansion Pack

Take your workshop into the future with the Secure High-Voltage Guided System Testing & Analysis.

The EV Expansion Pack Upgrade Kit comprises the EVDiag Box and dedicated adapters designed for specific electric vehicles, enabling you to conduct in-depth battery pack analysis.The EVDiag Box seamlessly interfaces with the MaxiSys Ultra, MaxiSys MS919, and MaxiSys MS909 tablets. Connection to the MaxiFlash VCI or VCMI is established through the EVDiag Box.

With the EV Expansion Pack at your disposal, qualified Level 4 technicians gain the capability to perform advanced diagnostics on a wide spectrum of European, US, and Asian Full Battery and Hybrid vehicles.

This Upgrade Kit includes essential adapters tailored to specific vehicle models, granting technicians direct access to battery packs for comprehensive diagnostic assessments.
