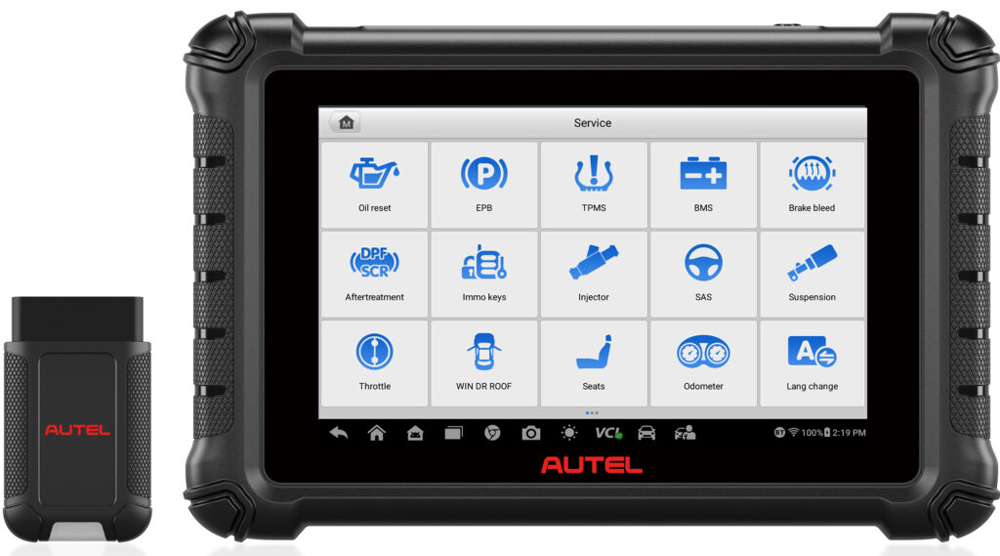

MaxiDAS DS900EU BT Diagnostic Tester
Click Here for Details
MaxiDAS DS900EU BT Diagnostic Tester
The MaxiSYS DS900EU BT is built upon the versatile Android 11 operating system and boasts a substantial 64GB of internal memory, empowering it to perform rapid and efficient vehicle system scans.
The all-new DS900EU BT comes loaded with an impressive array of features. It offers support for over 70+ manufacturers, facilitating actuation testing, special functions, live data analysis, and ensuring compatibility with both DoIP and CAN-FD protocols.
The DS900EU BT EU is equipped with a spacious 8-inch high-resolution screen, Wi-Fi capability, an 8-megapixel camera, 4GB of RAM, DoIP and CAN-FD compliance, and features a 'best in class' 64GB Internal Hard Drive.
With its built-in camera, you can effortlessly capture images of faulty components for your customers and instantly share them via email. Self-powered and designed to connect to the vehicle via a Bluetooth VCI, the DS900EU BT proves to be the indispensable tool for bustling garages and workshops seeking the latest in technology and unbeatable value.
Additionally, the DS900EU BT package includes a complimentary 2-year subscription for software updates, along with UK-based telephone support and enhanced European software. Please be aware that access to DoIP and CAN-FD systems necessitates an up-to-date software subscription.
Key Features
- 8-inch LCD capacitive touchscreen with 1280 x 800 resolution display
- MaxiVCI V150 for wireless connection
- Read/clear codes for all available systems
- Display live data in text, graph & analog for easy data review
- Features DoIP and CAN FD protocols
- AutoVIN technology can automatically identify the vehicle’s make, model and year information in no time
- Support Pre & Post Scan function
- Reset service mileage and service intervals
- Relearn parking brake pad after replacement
- Forced regeneration and adjusting injectors
- Support battery registration and reset
- Reset Steering Angle Sensor (SAS)
Specification
- Operating System: Android 11
- Processor: Quad core Processor(1.8GHz)
- Memory: 4GB RAM & 64GB ROM
- Display: 8-inch LCD capacitive touchscreen with 1280x800 resolution
- Rear Camera: 8 MP
- Connectivity: USB Type-C, USB 2.0, Wi-Fi, Bluetooth, Mini SD card (supports up to 64GB)
- Audio Input/Output: Input: N/A
- Output: buzzer
- Power and Battery: 3.7 V/7700mAh lithium-polymer battery, Charges via 5 VDC power supply
- Battery Charging Input: 5 V/3 A
- Operating Temp: 0 to 50°C (32 to 122°F)
- Storage Temp: -10 to 60°C (14 to 140°F)
- Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD
- An up-to-date software subscription is required to access DoIP and CAN-FD systems.
- DoIP and CAN-FD Compliant
- Secure Gateway approved by Vehicle Manufacturers
