MaxiSYS MS909 Diagnostic Tester

MaxiSYS MS909 Diagnostic Tester

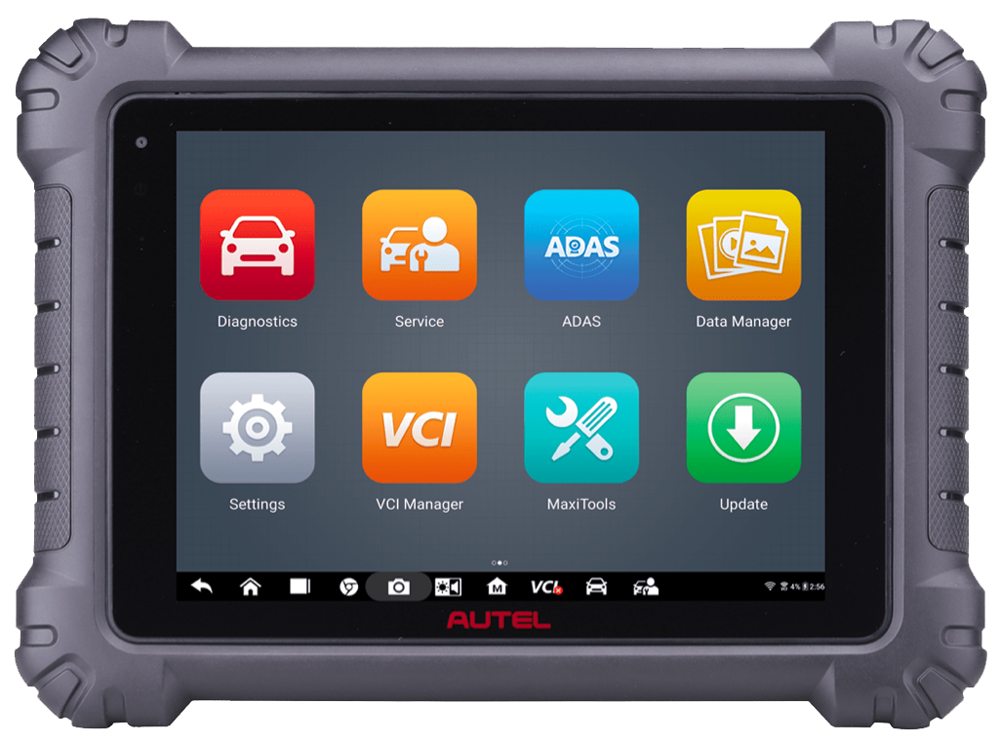

The MaxiSYS MS909 is a cutting-edge diagnostic tablet tailored for automotive professionals. This 9.7-inch touchscreen Android-based device is a true powerhouse, driven by an Octa-core processor, combining a 2.3GHz Quad and a 1.7GHz Quad, ensuring seamless performance.

It offers a substantial 128GB of memory to accommodate your diagnostic needs, and it comes equipped with an advanced Vehicle Communication Interface (VCI) that supports the latest communication protocols such as DoIP, D-PDU, and Mega CAN.

One of the standout features of the MS909 is its topology module mapping capability, a valuable asset for supported vehicles. The Intelligent Diagnostics feature is your guiding light in the diagnostic process, leading you from trouble codes to repair and testing, all accompanied by detailed repair information and helpful illustrations.

Moreover, the MS909 is tailored to meet your practical needs, with a rechargeable Lithium battery providing an impressive 8 hours of uninterrupted use. It's also equipped with front and rear cameras, adding to its functionality. This diagnostic tablet is designed to be an invaluable companion for automotive professionals looking to streamline their diagnostic processes and enhance their capabilities.

Key Features

• Android 7.0
• 2,3GHz + 1,7Ghz Samsung Exnos 8895v Octa-Core
• 128GB internal memory
• 4GB RAM
• 9.7" 2048 x 1536 TFT-LCD Corelle Glass
• Ultra fast power on
• 15,000mAh Lithium-Polymer Battery
• Oil and Water screen Resistant
• DoIP and CAN-FD Compliant
• Remote Expert Compliant
• Secure Gateway approved by Vehicle Manufacturers

Specification

• Operating System: Android 7.0
• Processor: Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
• Memory: 4GB RAM & 128GB On-board Memory
• Display: 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
• Connectivity: WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO), BT v.2.1 + EDR, GPS, USB 2.0 (TWO USB HOST Type A, ONE USB mini device), HDMI 2.0, SD Card (Support up to 256GB)
• Camera: Rear: 16 Megapixel, Autofocus with Flashlight, Front: 5.0 Megapixel
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio Input/Output: Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jac
• Power and Battery: 15000mAH 3.8V lithium-polymer battery, Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
• Input Voltage: 12V/3A Adapter
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Storage Temperature: -20 to 60°C (-4 to 140°F)
• Dimensions(W x H x D): 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
• Weight: 1.66kg (3.66 lb.)
• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

System Topology

With our Autel exclusive System Topology Software, the technician can see a colour coded topology display for all vehicle systems and their status on one page! The display shows the structure of communication between modules, and gives the ability to press on a system module to display any DTC's and access the system. Currently available on BMW, Ford, Volkswagen, Audi, GM, Ford, Chrysler, Nissan, Honda, Toyota Lexus, Jaguar, Land Rover, Mercedes Benz, Hyundai, Kia, Volvo.

Tool Case Includes

• MaxiFLASH VCI

• Main Cable

• USB Cable

• Light Fuse

• Cigarette Lighter

• AC/DC Adapter

• Protective Carry Case

Our additional Oscilloscope Accessory Kit can be purchased separately and includes the further items of 1 x 65Amp Current Clamp, 1 x 650Amp Current Clamp, 1 x Coil On Plug Probe, 2 x HT Extension Leads and 2 x Battery Clips.

EV Expansion Pack

Take your workshop into the future with the Secure High-Voltage Guided System Testing & Analysis.

The EV Expansion Pack Upgrade Kit comprises the EVDiag Box and dedicated adapters designed for specific electric vehicles, enabling you to conduct in-depth battery pack analysis.The EVDiag Box seamlessly interfaces with the MaxiSys Ultra, MaxiSys MS919, and MaxiSys MS909 tablets. Connection to the MaxiFlash VCI or VCMI is established through the EVDiag Box.

With the EV Expansion Pack at your disposal, qualified Level 4 technicians gain the capability to perform advanced diagnostics on a wide spectrum of European, US, and Asian Full Battery and Hybrid vehicles.

This Upgrade Kit includes essential adapters tailored to specific vehicle models, granting technicians direct access to battery packs for comprehensive diagnostic assessments.
