Thermobile ProHeat Oil Fired Heaters
Thermobile ProHeat Oil Fired Heaters

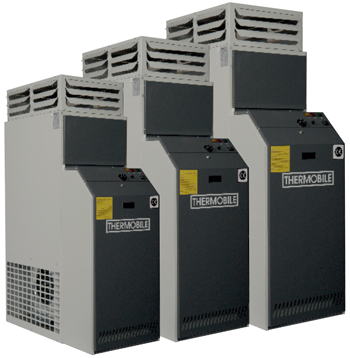

ProHeat oil fired cabinet with built in fuel tank on model 30 & 60 (optional on model 100)
- Capacities of 30 and 100 kW net, with an efficiency of 92%
- Plug- and- play principle, quick and easy to install.
- Standard model Four adjustable outlets equal air distribution and connection for air duct.
- Swivel head models available with 2 x adjustable swivel heads
- Combustion chamber and heat exchanger of heat resistant steel.
- Control panel fitted with fan only facility, warning lights and built in thermostat.
- Low-noise radial fan
- Large air volumes guarantee quick heating
- Standard equipped with thermost
- ERP 2018 compliant
Applications
- Automotive - Heating garage workshops, valeting bays, commercial workshops.
- Agriculture - Heating workshops.
- Industry - Heating and frost protection of warehouses, halls, transit sheds.
Types of Fuel
- 35 sec heating oil, red diesel
- 28 sec heating oil, kerosene
Technical Details
| ProHeat 30 | ProHeat 60 | ProHeat 100 | ||
|---|---|---|---|---|
| Capacity Btu/hr (1) | Max | 104,000 | 204,061 | 333,352 |
| Heat Output | Kw | 30 | 60.1 | 97.7 |
| Fuel Consumption L/h (1) | Min | 3.4 | 7.2 | 10.5 |
| Tank Capacity | Litres | 55 | 75 | 100 |
| Air Flow | m3/hr | 1,900 | 4,500 | 8,800 |
| Flue Connection | mm | 120 | 150 | 180 |
| Width | cm | 54 | 54 | 54 |
| Depth | cm | 98 | 105 | 105 |
| Height | cm | 113 | 127 | 127 |
Pricing
The following prices exclude installation and flue.
ProHeat 30
ProHeat 60
ProHeat 100
ProHeat 100 Fuel Tank
Call us now on 01823 328530 for more details
