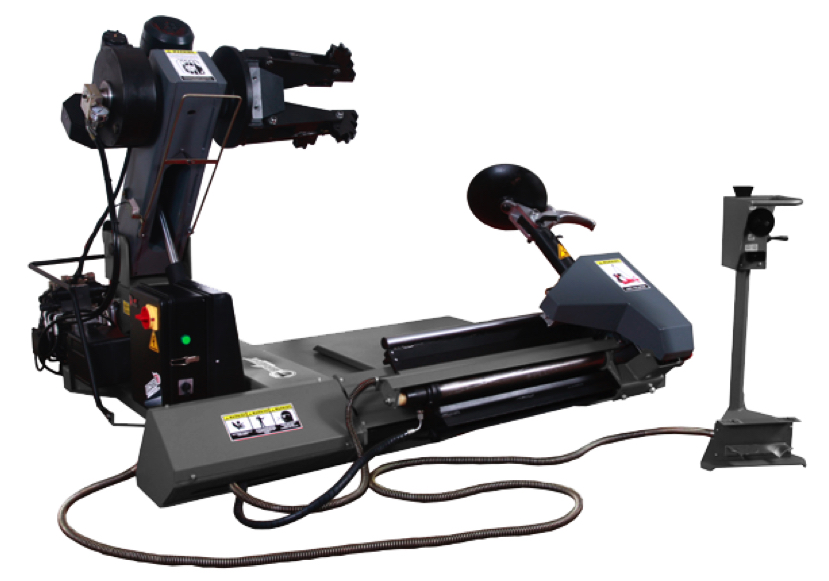

Dama HDM590 Commercial/Agri Tyre Changer
Dama HDM590 Commercial/Agri Tyre Changer
Heavy duty electrohydraulic commercial/agri tyre changer. A very efficient machine fully automatic with twin speed. 3 jaw positions. Protection kit for aluminum tyres available.
Technical Specification
| Rim diameter | Dimensions: 14” to 46” |
| With extension jaws | 46” to 56” |
| Wheel width | 1100 mm |
| Max. wheel diameter | 2300 mm |
| Hydraulic pump power | 380V/3ph/50Hz/1.5kW |
| Gearbox power | 380V/3ph/50Hz/2.4-3.0kW |
| Working pressure | 130-150 bar |
| Working air pressure | 3000 kg |
| Noise level | <75 db |

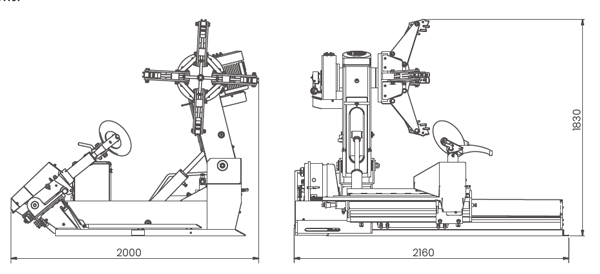

Drawings
