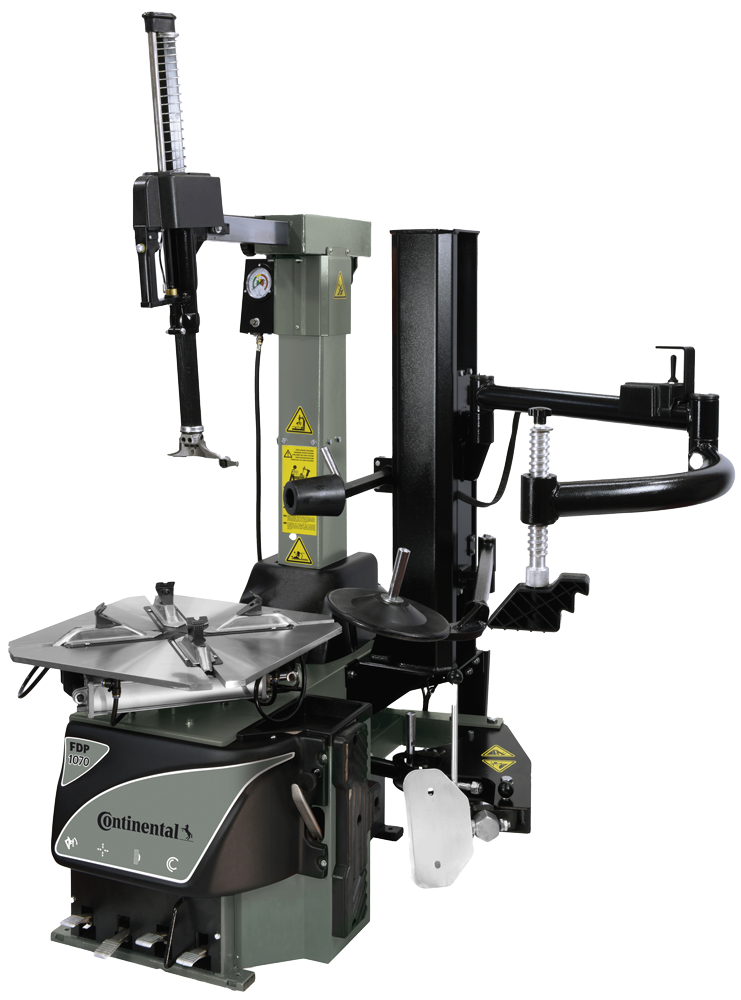

Continental FDP1070 Automatic Tyre Changer
Automatic Tyre Changer
- Automatic tyre changer for cars and light commercial vehicles, suitable for low profile and run flat tyre as well as for sport alloy rims.
- Rim capacity from 12” to 26”.
- Pneumatic control for up/down operating mounting head.
- Thanks to a pneumatic system which raises the arm, the column can be lifted higher enabling this way to operate on wheels of 15’’ width.
- Pneumatic tilting column by pedal control.
- Variable rotation speed (motoinverter) by pedal control.
- The bead breaker offers two different positions in order to facilitate the bead-breaking operations on wheels of all diameters.
- Double acting bead breaker cylinder.
- Equipped with the special built-in device for tubeless inflation.
Technical Data
Max wheel diameter |
1100 mm (43") |
|---|---|
Max wheel width |
400 mm (15") |
Outside locking capacity |
12" - 24" |
Inside locking capacity |
15" - 26" |
Working pressure |
8 - 10 bar |
Power supply |
230V 50/60Hz 1ph |
Bead breaker power |
3000 Kg |
Bead breaker max opening |
390 mm |
Rotation speed |
6 - 12 rpm |
Net weight |
318 Kg |
