The Bosch TPA 300 TPMS Programming Tool

The TPA 300 has been specially developed for the vehicle-specific configuration of universal sensors for tyre pressure monitoring systems (TPMS).

It achieves a vehicle coverage of over 95%. Over 20 different universal sensor brands can be programmed for very high market coverage. Through wireless transmission, the TPMS data is displayed and checked directly on the color 2.8” display.

The quick and easy operation of the programming tool enables uncomplicated sensor programming and vehicle relearning procedures.

Regular software updates of functions, vehicles and sensor coverage ensure that workshops are up-to-date and can serve their customers accurately.

Features of TPA 300

Vehicle coverage of over 95% (more like 99.5%).
Activate and read TPMS sensor data, program sensors, check remote keyless entry signal and display sensor data in seconds
Over 20 different universal sensor brands can be programmed, Supports all known OE and aftermarket programmable sensors for all Passenger and light commercial vehicles. Not limited to certain sensor brands like many other offerings
Vehicle relearning procedures: practical step by step instructions are on the tool.
The TPMS data is displayed and checked directly on the 2.8-inch colour display.
The quick and easy operation enables uncomplicated sensor programming and the step-by-step implementation of vehicle relearning procedures.
Full database of indirect, manual and auto relearn procedures
Intuitive, full colour display with easy vehicle lookup by make, model and year
Includes 3 years of free software updates – counter starts from when first update is done.
The relearning with OBD-II module (accessory) is mainly needed for Asian OEMs such as Toyota, Hyundai, Nissan, etc.
- Alternatively, the ESI[tronic] 2.0 Online Software can be used for the relearning.

Technical Data

Screen	2.8 inch colored display
Operating Temperature	0 °C to 45 °C
Storage Temperature	-20 °C to 60 °C
Dimensions	178.9 x 99.7 x 35.8 mm
Frequency	125 KHz (transmit) 315 MHz, 433.92 MHz (receive)
Battery Life	Approximately 300 activations per full charge
Battery	3.000 mAh rechargeable lithium-polymer battery
Weight	328g

Purchase Options

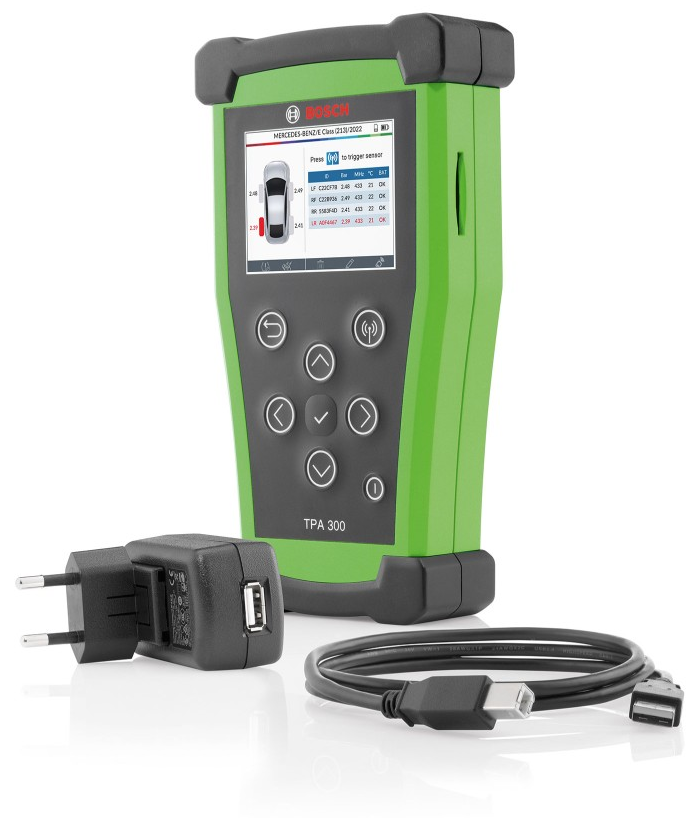

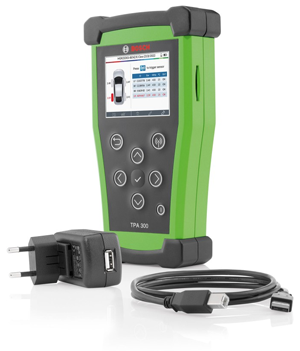

TPA300 Machine Only Scope of Delivery TPA 300 Tool Power Charger USB-B Cable Quick Start Guide Carry Case	Special Offer Normal Price £555.00 £499.00 + VAT QTY :
TPA300 with 5 Quick Fit Valves (We will contact after purchasing to discuss which 5 valves you require)	£669.00 + VAT QTY :
TPA300 with OBD Interface	£795.00 + VAT QTY :
TPA300 with OBD Interface and 10 Quick Fit Valves (We will contact after purchasing to discuss which 10 valves you require)	£995.00 + VAT QTY :

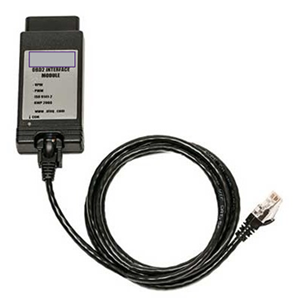

TPA 300 OBD Dongle

Writes sensor values into ECU of vehicle as integrated part of the process
Writing sensor values can also be done using ESI[tronic] – but dongle is faster, since no typing required.
Not strictly needed when using with ESI[tronic] or another diagnostic device
Dongle simplifies the workflow significantly when it is needed (mainly Asian OEMs such as Toyota, Hyundai, Nissan), reduces manual data entry of long sensor codes. Strongly recommended.

£255.00 + VAT

P/No. : bos1684465914

Quick Fit Valves

	Clamp-in Metal Valve Silver	£22.95 + VAT QTY :
	Clamp-in Metal Valve Titanium	£22.95 + VAT QTY :
	Clamp-in Metal Valve Black	£22.95 + VAT QTY :
	Snap-in Rubber Valve Black	£22.95 + VAT QTY :
