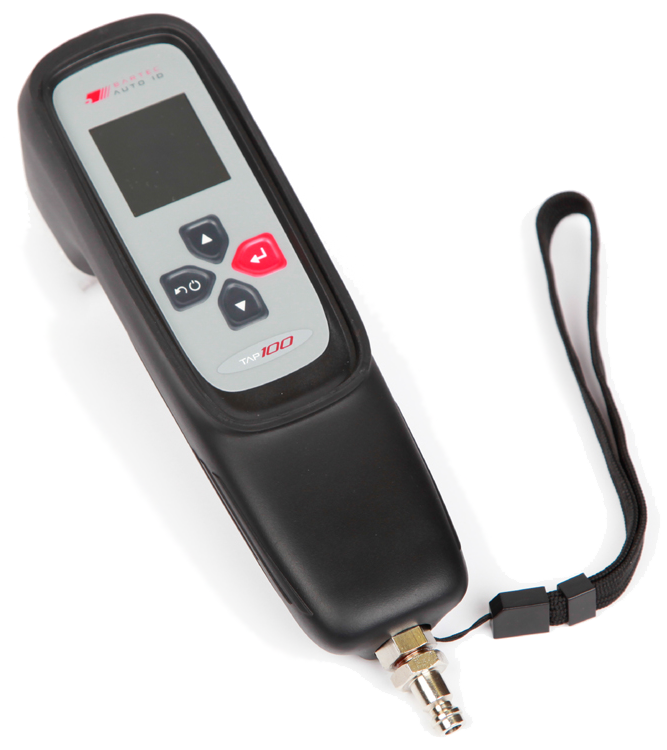

TAP100 Tread Depth and Pressure Tool

TAP100 Tread Depth and Pressure Tool

The first integrated hand held Tread Depth and Pressure tool with colour display. Simply save the vehicle test data to your PC, then print out reports which sell the required repairs and parts to your customer.

The TAP (Tread & Pressure) Reader is designed to give fast accurate results. It can eliminate the paperwork involved in collecting data and reporting the results to the customer. Using a colour coded warning system the tool shows when tyres are legal and when replacement is recommended.

Approved for MOT (UK) Testing.

Kit contains: Tool, hose, user manual, wireless wall charger, USB cable, pin cover, tool case.

Functions of TAP100

• Tread depth and pressure in one tool can capture all four wheels in under one minute
• No need to connect to another tool, Bluetooth communications - no cables
• Colour screen for displaying legal and recommended replacement status
• Red-amber-green intuitive user interface
• Works with TPMS Desktop – data management, TPMS info and software updates
• Lamp highlights tread wear pattern and damage
• Quick release lightweight pressure hose
• 15mm steel depth pin with profiled end to meet regulations
• Ergonomic, light weight and low profile for ease of accessing the tyre
• Increases customers confidence leading to increased new tyre and parts sales

Technical Specification

• High resolution colour display, sunlight readable
• Silicone rubber boot for added protection
• Maximum tread depth 12mm
• 0.01mm accuracy version for UK MOT testing – EINYA19863-0716026
• Pressure range 0-10bar (0-150PSI)
• Pressure accuracy +/-0.07bar (+-1PSI)
• Bluetooth for wireless data transfer
• Wireless charging
• Operating temperature 0 to 40°C
• Built in lamp for illuminating tyre surface
