Peugeot Citroen PSA XS OE Diagnostic Tool

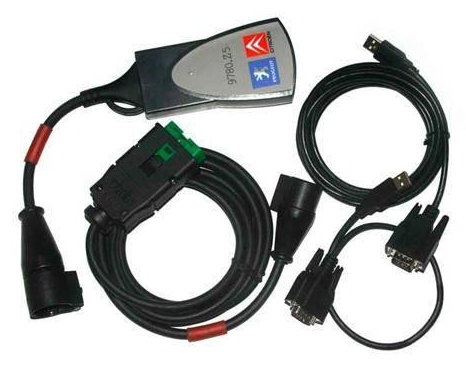

PSA XS A.1281 Z Interface Diagnostic Tool
Function
This diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).
Read identification
Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...
Read fault codes
Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure"). Program supports report printing or copy to clipboard.
Clear fault codes
This function clears all stored fault codes and other diagnostic information.
Auto-scan (complete car scan/test)
Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.
Measured Values
Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supported, which allows offline analysis.
Actuator test
Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)
Language
English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech
Specification of PC
Hardware and software requirements:
Software requires at least Intel Celeron/Pentium i5 1.2 MHz, 4GB RAM, 10GB free HDD space and USB 1.1 port (USB 2.0 recommended) and Microsoft Windows 7 For DIAGBOX Online V8.31.
Vehicle Coverage
PSA is compatible with all Citroen cars from 1996 - 2017 onwards.
PSA is compatible with all Peugeot cars from 1996 - 2017 onwards.
Diagnostics is performed via 16 Pin OBD-II connector or via manufacturer-specific connector (only older cars, pre-2001).
