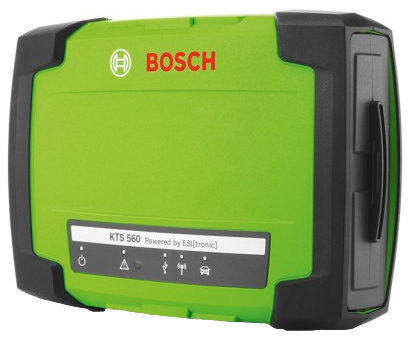

Bosch KTS 560 Diagnostic Interface

Bosch KTS 560 Diagnostic Interface

Bosch KTS 560 All Makes Diagnostic Interface with DOIP

The new and exciting Bosch diagnostic interface leading the aftermarket with enhanced ECU diagnosis for DoIP.

The Bosch KTS 560 is the new and latest Bluetooth diagnostic interface that supports all of todays relevant diagnostic protocols. It offers the highest level of software working with any Windows based PC and the world renowned Bosch diagnostic software ESI[tronic] 2.0.

This new interface offers simultaneous parallel CAN channel communication and is PassThru enabled, working with many OEM softwares including Jaguar Land Rover, VAG, Mercedes-Benz, BMW, Volvo and Vauxhall, with others to follow.

The Bosch KTS 560 is the first aftermarket diagnostic interface to work with Diagnostics over Internet Protocol (DoIP), ensuring that communication to vehicles is possible as OEMs develop this technology in the future. The ability to communicate at variable speeds using IP baud rate (speed of data transfer) gives the new generation KTS the advantage of being able to process the data using new protocols which has previously not been possible.

The KTS 560 can measure voltage, resistance and current easily and efficiently with the built in 2 channel multimeter.

Introductory Offer

KTS 590 or KTS 560 Diagnostic Interface at a Special Price
1 Days Bosch User Training
Pay 3 Equal Monthly Payments*
2nd Year's Warranty on KTS Interface
Product & Software Support whilst in Subscription
Bosch Technical Support via Bosch Hotline
1 Days FREE Bosch Training on Any Subject**
Additional Benefits for Bosch Car Service Customers

For our fantastic introductory offer and to book a demonstration

CALL NOW ON 01823 328531

* Only available to Hickleys trade account customers ** If taken within 3 months of purchase

Features

  • Supports “Easy Connect” and other Bosch vehicle specific adapters
  • Enhanced measurement technique included to support diagnosis and vehicle repair
  • Enhanced ECU diagnosis for DoIP (Diagnostics over Internet Protocol); the first product in IAM with this feature
  • Parallel or simultaneous diagnosis possible for a faster overview and reading of values
  • LED display
  • Measuring all actuators and sensors in the vehicle
  • Multimeter measurements during guided trouble-shooting with automatic transfer of measured values
  • Intelligent and future-proof thanks to internal OBD interchangeable adaptor
  • Universal OBD plug: Allows connectivity to vehicles with 14 V and 28 V vehicle electrical systems
  • Clear communication thanks to multiplexer and cable adaptor recognition: K and L line, SAE and CAN can be switched to all possible terminals on the OBD plug
  • Reliable multiplexer actuation
  • Automatic control unit search function
  • Demo mode allows the 560 to be used without a vehicle connected
  • Resistance measurement with extended measuring ranges
  • Continuity tester for fault localisation
  • Diode measurement for tests in components
  • Voltage measurement with enhanced measurement functions
  • Bluetooth Class 1 standard with a range of up to 100m
  • Automatic KTS module search
  • Fully PassThru compliant
  • Operating systems: Vista Home Premium, Vista Business, Windows 7, Windows 8
  • Powered by ESI[tronic] 2.0

Technical Data

  • KTS 560 2-channel multimeter
  • Operating voltage 8V DC-28V DC
  • Connections to PC USB 2.0, Bluetooth® Class 1
  • Weight approx. 0.5 kg
  • Dust and water protection IP53
  • Multimeter bandwidth 100 kHz
  • Oscilloscope sampling rate 20 MS/s
  • Vehicle protocols ISO 15031, ISO 22900, SAE J2534-1 and -2 (PassThru), ISO 9141-2 (K and L), SAE J1850 VPW and PWM, CAN High Speed ISO 11898, ISO 15765-4 (OBD), CAN Single Wire, CAN Low Speed, ISO 13400 (Diagnostics over IP), and other vehicle-specific protocols

Scope of Delivery

  • OBD connection cable (1.5 m)
  • Power supply unit
  • Test lead/probe set
  • USB connecting cable (3 m)
  • Trolley mounting parts set
  • Bluetooth® USB adaptor
  • Storage case

Download the KTS Brochure

Software

Bosch software is renowned across the world as the best diagnostic information available. In addition to the SD diagnostic software that runs the KTS platform there are other very valuable software packages to enhamce your diagnostic experience.

  • SIS - Diagnostic trouble shooting and repair information with 4 updates per year
  • M - Vehicle mechanical and service information
  • P - Vehicle wiring diagrams for body electrics
  • TSB - Technical service bulletins
  • B - Repair Times
  • EBR - Experience Based Repairs (Click here for details of EBR)

Software options available for the KTS570 and KTS540 :

A, SD ECU diagnosis
Only £461.00 + VAT
QTY :
P/No. : kts5ac12sd
A, SD & SIS ECU diagnosis + troubleshooting and repair
Only £896.00 + VAT
QTY :
P/No. : kts5ac9sdsis
A, SD, SIS, M, P & TSB Diagnostic Master Package
Only £1121.00 + VAT
QTY :
P/No. : kts5ac9mptsb
A, SD, SIS, M, P, TSB, B Diagnostic Master Package Plus (with repair times)
Only £1326.00 + VAT
QTY :
P/No. : kts5ac9mptsbb
EBR Experienced Based Repair
Only £170.00 + VAT
QTY :
P/No. : bos1987p12606999
A, SD, SIS, 3 Year ECU diagnosis + troubleshooting - 3Year
Only £2245.00 + VAT
QTY :
P/No. : kts5ac93y
A, SD, SIS, M, P & TSB Diagnostic Master Package - 3 Year
Only £2810.00 + VAT
QTY :
P/No. : kts5ac9mptsb3y
A, SD, SIS, M, P, TSB, B Diagnostic Master Package Plus (with repair times) - 3 Year
Only £3280.00 + VAT
QTY :
P/No. : kts5ac9mptsbb3y
EBR Experienced Based Repair - 3 Year
Only £433.00 + VAT
QTY :
P/No. : bos1987p12608999
