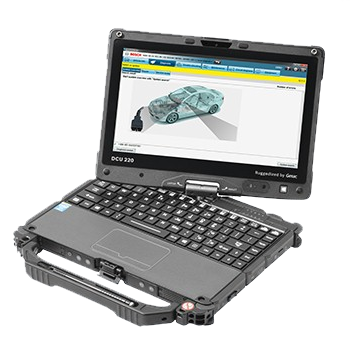

Bosch DCU 220

Bosch DCU 220

The 2-in-1 device for the control of diagnostic systems.

Workshop-oriented tester and diagnostics center: Convertible PC DCU 220

Developed especially for workshop use, the robust DCU 220 (Diagnostic Control Unit) controls Bosch test and diagnostic systems, e.g. FSA 500 or the modules from the KTS series. As a convertible PC, the DCU 220 combines the features of a notebook with those of a tablet PC to facilitate flexible and comfortable working, especially under workshop conditions. When used as a tablet PC, the touchscreen ensures flexible and convenient work.

In conjunction with a keyboard, the DCU 220 lends itself to being used as a notebook for any kind of office work, such as the quick and easy entry of customer data.

Carefully thought out details make operation easier

  • Easy switch from tablet to notebook mode
  • Easy handling with arrangeable hand grip on the back of the device
  • Sturdy housing with 11.6" touchscreen monitor
  • Integrated camera: conspicuous features of the vehicle can be documented and the required spare parts photographed

Mobile work over extended periods

  • Inclusion of two identical lithium-ion batteries
  • One battery is sufficient to continue operation in the workshop
  • If required, the batteries can be replaced without interruption during regular operation (hot swap function)

Modular concept with the Diagnostic Control Unit

For qualified diagnostics, professional repair and maintenance, Bosch offers the following modular system components: the DCU 220 convertible PC and the KTS 570, the KTS 540, KTS Truck or the FSA 500. These can be freely combined to form a suitable solution for every workshop.

Flexible workshop system

Combined with the convenience of the DCU 220 (including charger), the KTS 570 or KTS 540 ensure safe, practical and economical diagnosis in the workshop.

Download the DCU 220 Sales Leaflet

Technical Specification



Technical Data: DCU 220
Processor Intel Core i5-4200U, 1.6GHz
RAM 4 GB DDR3L, expandable to 8 GB
Storage 256 GB SSD
Display 11.6”, sunlight readable (800 Nits), 1366 x 768 Pixel
Touchscreen Capacitive multi-touch
Battery 2 x 24W, hot-swappable
Wireless WLAN IEEE 802.11ac and Bluetooth 4.0 class 1 (high performance)
Interfaces 2 x USB3.0, 1 x USB2.0 Gigabit LAN RJ45 HDMI Audio
Webcam HD
OS Windows 7 Professional 64 Bit
Call us for the latest MEGA DEALS on 01823 328531

The Bosch DCU 220 is available in the following packages :

Bosch DCU 220 Stand Alone

The DCU 220, without any extra modules.

Software not included.

Bosch KTS 940 - DCU220 with KTS 540 Module

Bosch KTS 940 - DCU 220 with KTS 540 Module

An entry level package offering a rugged tablet PC with wireless diagnostics capability.

Details of the KTS 540

Software not included.

Bosch KTS 970 - DCU220 with KTS 570 Module

Bosch KTS 970 - DCU 220 with KTS 570 Module

Middle package offering a rugged tablet PC with wireless diagnostics capability and built in 2 channel scope for easy component testing.

Details of the KTS 570.

Software not included.

Bosch KTS 990 - DCU220 with KTS 540 Module & FSA500 Scope

Bosch KTS 990 - DCU 220 with KTS 540 Module & FSA 500 Scope

Top package offering a rugged tablet PC with wireless diagnostic capability and separate 4 channel scope for advanced diagnotics testing.

Details of the KTS 540

Details of the FSA 500

Software not included.
