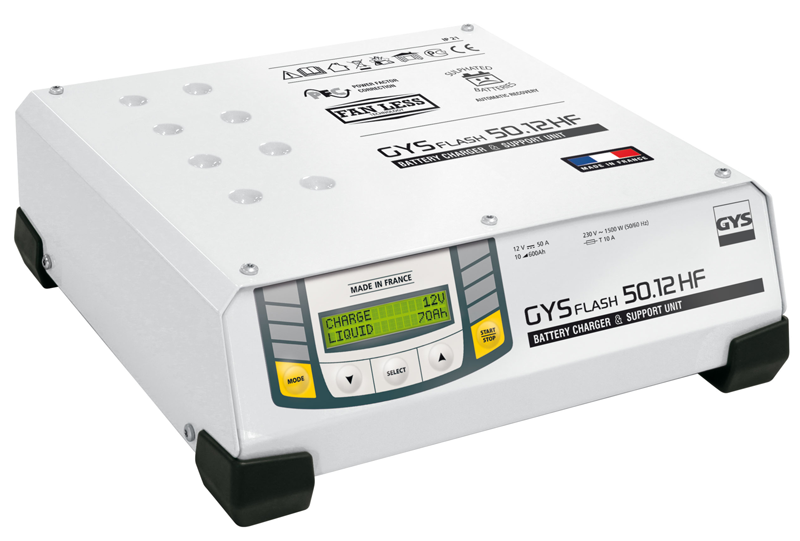

GYSFlash 50.12HF Battery Support Unit

GYSFlash 50.12HF Battery Support Unit

Gysflash 50-12 HF is a 50A high power stabilised supply incorporating Inverter technology with 5 functions :

• Battery support: sustains 12V (liquid or gel) automotive battery during diagnostic work
• Advance battery charger: ensures an ideal charging cycle for battery maintenance for the most modern vehicle
• Showroom mode: maintains batteries in showroom vehicles
• In «battery change» mode, will maintain electrical supply to preserve vehicle memory settings
• High power stabilised supply: voltage & current adjustable

5 Different Modes to Use

• Charge
• Diagnostic
• Showroom
• Change Battery
• Power Supply

Advanced Functions

• Automatic restart
• Cable test and calibration
• Showroom mode lock
• “Easy charge” mode
• Activate and adjust an “expert” charging curve
• Automatic SOS recovery for sulphated battery

Intuitive interface

• 8 Languages available

Slim size

• The height of the charger (<11cm) enables to place it under vehicle.

Cables

• Fitted with 2x2.5m - 10mm² cables
• It can be fitted with 2x5m - 16mm² and more. The calibration is automatic.

GYSFlash Trolley

An optional trolley to use with the any of the GYSFlash range.
