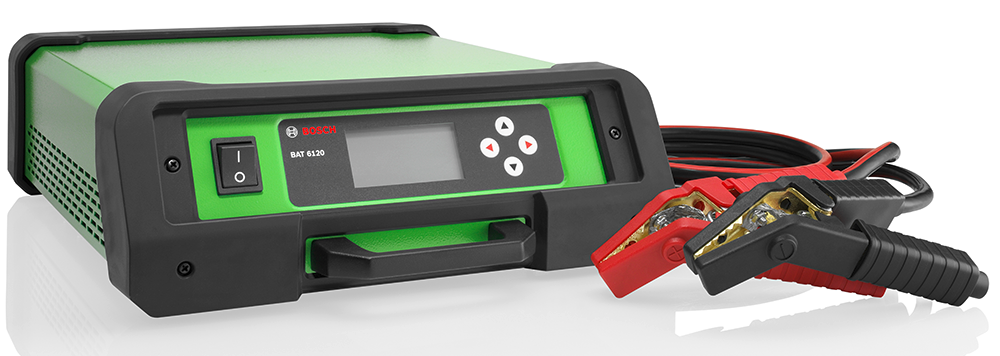

Bosch BAT6120 High Power Battery Charger

Bosch BAT6120 High Power Battery Charger

The Bosch BAT 6120 is a future-proof, professional, two-in-one battery support solution for automotive workshops.

Functioning dependably as a smart and fast battery charger, for lead acid and lithium batteries, or as a 120 A continuous power supply. With the capability to update charging characteristics via USB, your workshop remains equipped for the very latest in battery technology.

The BAT 6120 is perfectly suited for operating on desk, bench, or floor and is also wall-mountable. It will even fit neatly beneath a car in a showroom.

Flexible operation modes fulfil today’s workshop requirements and the large 4-colour backlit LCD display, with 4 buttons makes it intuitive to use.

Benefits:

• Supports 120 A DC Continuous Output (@AC120 V~240 V, 25 ℃)
• Supports Flooded/AGM/EFB/GEL/Lithium (LFP) Batteries
• Interface available in 26 languages
• 12 V Lead Acid Battery Charge. Charging Diagnosis / 12 V Lithium Battery Charge, BMS Wake Up
• Maximum power output: up to 1750 W
• Flexible operation modes to fulfill customer needs
• Desk, floor or wall operations possible
• Fits underneath a car in show room
• Easy to use large 4 colour backlight LCD display including wall mount mode
• Easy access to BAT6120 Help Center web page through QR code displayed on the screen

Key Features

• Application
  • Output: 120 Amp (120~240 V AC For US/EU),
    100 Amp (100 V AC For JPN)
  • 12 V Lead Acid Battery Charge, Charging Diagnosis
  • 12 V Lithium Battery Charge, BMS Wake Up
• Operation modes
  • Power Supply – 120 A
  • Charging – Smart and fast
  • Battery Replace – Safe and convenient
  • Showroom – Stable and quiet
• Power supply mode
  • High dynamic in order to keep the
    voltage stable
  • 120 A continuous power
  • Temperature range up to 40 °C
  • Smart protection in case of low SOC (State of
    Charge) at the begin of application
• USB interface
  • Upgrade of charging characteristics via USB –
    Always ready for latest battery technology
• Flexible output settings
  • Maximum power output: up to 1750 W
  • Can be adjusted manually

Technical Data

• Battery nominal voltage: 12 V
• Battery types: UNI, WET, EFB, AGM, VRLA/GEL, LFP (LiFePO4)
• Battery size (in acc. with CCA): 10 … 450 Ah
• Display: 3 inch., 4 different backlight colour, 180°- rotation feature (wall hanging)
• Menu languages: 26
• Dimensions: (W x H x D) 329 x 116 x 433 mm
• Weight (without charging and power cable) :8.5 kg
• Function temperature range: 0° C – +40 °C
• Cross-section charging cable: 25 mm²
• Length of the charging cable: 3 m (twin cable)
• Protection type: IP 20 D
