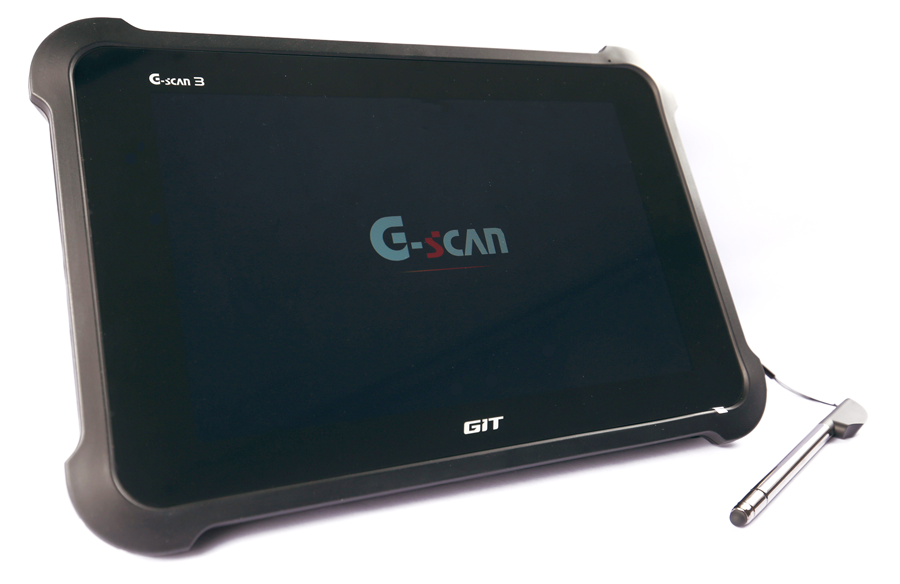

G-scan 3

Experience the NEW G-scan 3
Only £2249.00 + VAT
P/No. : gscan3
QTY :

Experience the NEW G-scan 3

Built around an Android OS with an Octa-core 2.1 GHZ CPU, integrated with advanced diagnostic features and unparalleled functions, the G-scan3 will provide you with the ultimate user experience.

The G Scan diagnostic testers are renowned as the market leading diagnostic scan tools for both Asian and European vehicles, with outstanding capabilities and performance.

The G-scan products have led the market in Asian vehicle diagnostics for many years offering OEM software for Kia and Hyundai, as well as outstanding depth and breadth of software in all other manufacturers. Nowadays the G-scan range of testers can be truly considered as an "all makes" diagnostic tool with the rapid growth of European software coverage whilst retaining their market leading position in Asian vehicles. This is further complimented with the impressive coverage of American vehicle manufacturers.

The G Scan 3 follows on from the hugely successful G Scan 1 & 2 offering improvements in processing speed, memory, display and much more over the previous units.

Features

  • Market leading coverage for Asian cars and trucks
  • Excellent European & American vehicle coverage
  • OE software coverage for Kia & Hyundai
  • Instant boot-up from standby mode
  • Built-in Wi-Fi for cable free updates and wireless printing
  • Super fast Samsung's Exynos 7420 Octa-core processor
  • Simulation function for in-depth diagnostics
  • 10.1" TFT (1280 x 800 pixel)
  • Internal Flash 64GB, RAM 3GB
  • Based on the Android 6.0
  • Special functions calculator for Ohm's law, parallel resistances and more
  • Handy unit converter
  • 1 year software updates
  • 1 year warranty

Diagnostic Functions

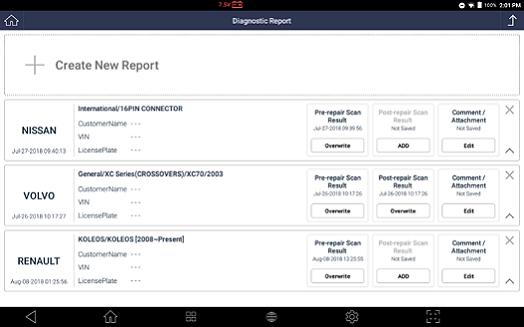

Diagnostic Report Function

Allows the users to create a report with Pre-scan and Post-scan result. Not only the users can save the reports as PDF file in G-scan 3’s memory; also with a help of Bluetooth and Wi-Fi technology, users can simply print directly or send them to desired E-mail address.

Diagnostic Report Function

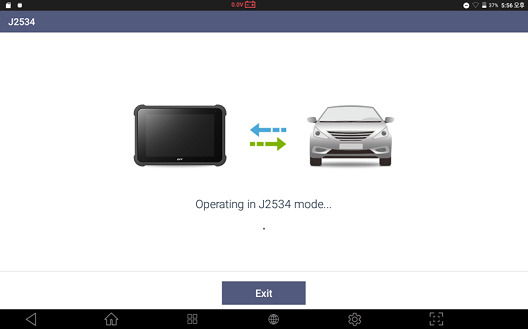

J2534 Pass-thru

Supports ECU reprogramming on both Hyundai and Kia vehicles in J2534 pass-thru mode. It also operates as a J2534 pass-thru terminal for other vehicle manufactures supporting J2534 programming and diagnostics. This requires OEM-specific diagnostic software and the mode can be used by CAN-Bus, KWP2000, and ISO9141 protocols. ( exceptions may apply ).

J2534 Pass-thru

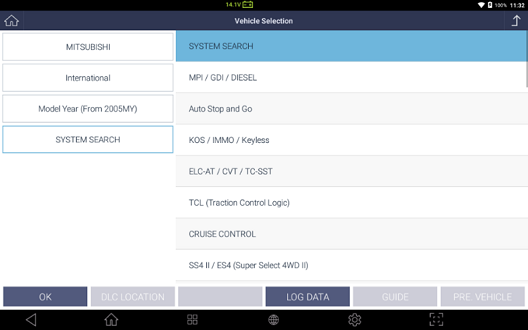

Simple Menu Structure

No hassles for locating the metal tag and finding the correct engine codes. Simply select the diagnostic connector type before selecting the system to test when testing Japanese vehicles. No model Code, No Engine Code, No detailed menu selections are required.

Simple Menu Structure

System Auto Search

No time consuming DTC search by “trial and error”, G-scan provides auto search function that tries to communicate with “ALL” systems in the car automatically. It reports back with the available system list and the number of DTCs’ of each system. ( Note : Not all vehicle selection menus provide the system and auto search ).

System Auto Search

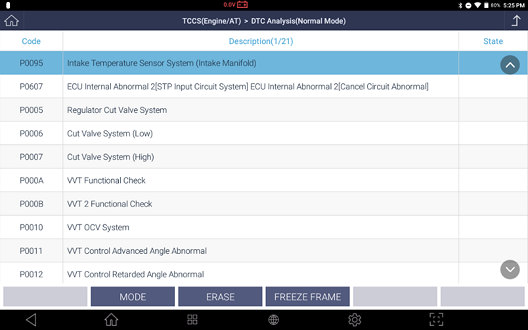

Full Text Description

Thanks to screen control flesibility of Android system and its 1280 pixels wide screen, the full description of DTC codes and data parameter names are supported with G-scan. If longer than the screen, the full description appears in a pop-up window.

Full Text Description

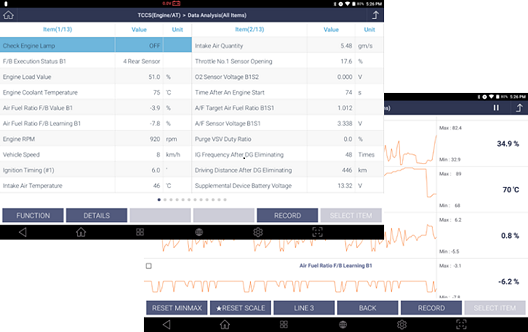

Flight Record & Graphical Display

Diagnostic data can be recorded on the road test while the car is running the real driving condition. And recorded data (Flight Record) can be replayed both on G-scan or the larger PC screen. Also, these data can be displayed in graphical waveforms.

Flight Record & Graphical Display

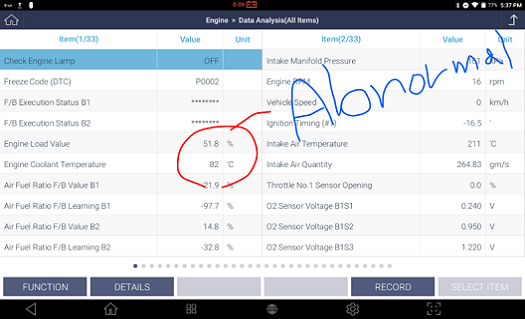

Handwritten Memo & Instant Screen Capture

Press the “View Finder” button on the bottom right corner, the current screen play is captured immediately and you can put your own handwritten memos and drawings by using the fingers or stylus pen. The captured image and the memo are saved in the memory for your retrieval. You can either send the image data to a printer to print or transfer to the PC or phone via bluetooth pairing connection.

Handwritten Memo & Instant Screen Capture

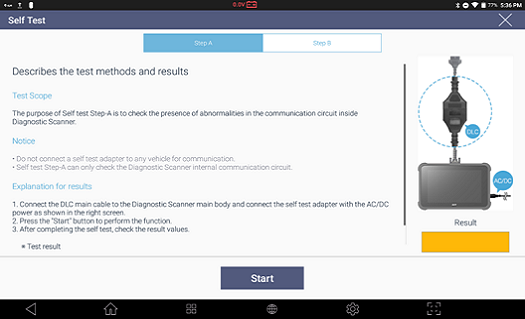

Self-Test Function

Many of field failures are found caused by the defective cable and connector, or the problems on the vehicle side. G-scan provides “self-test function” that helps the users to determine whether the communication problem is caused by the base unit’s internal hardware / software reasons or by the external factors.

Self-Test Function

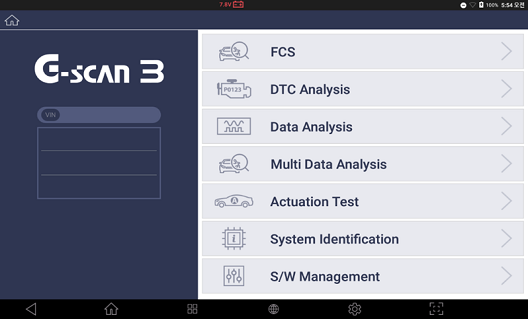

Hyundai and KIA OEM S/W

Complete OEM software package is included (except ECU reprogramming), Select Hyundai or Kia from the Menu. Users can enjoy the complete function and performance of OEM tool for Korea’s leading brands.

Hyundai and KIA OEM S/W

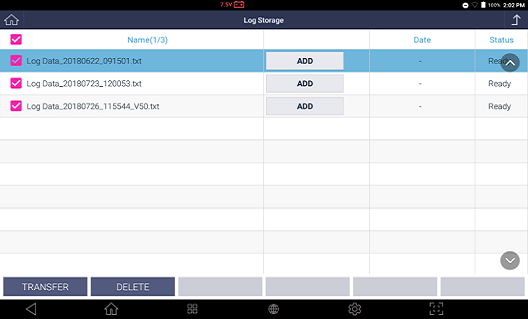

Data log and quick feedback support

In cases of communication or function failure, users can log the bi-directional data transmission between the tool and vehicle control systems. This log can be sent to the engineers through the log transfer function within the G-scan 3 device. The given data log files will be analyzed, feedback and patch file update may provided within 24 hours during workdays; when necessary.

Data log and quick feedback support

Technical Specification

Category Specifications
CPU Exynos 7420 Octa Core @ 2.1 GHz
Operating System Android 6.0
System Memory Internal Flash 64GB, RAM 3GB
External Memory Micro SD Card (max. 128GB)
LCD 10.1" TFT (1280 x 800 pixel)
Input Devices Capacitive Touch Screen, 3 Hard Keys (Power, Function 1, Function 2)
Camera Rear 13MP, AF, Flash Light
Sound Speaker(mono), Microphone and Earphone Jack
Rechargable Battery Li-ion Polymer, 6300mAh (3.7V), Hard Pack
Operating Voltage DC 9 ~ 30V
Sensors Gyro-sensor, Acceleration sensor
Dimension 304 x 208 x 35.5mm
External Port USB 2.0 Host 1ea, Host & Slave 1ea
Video Out HDMI
Network RJ45 Ethernet, WiFi 802.11 a/b/g/n, Bluetooth 4.0

AC/DC Adapter

Category Specifications
Input Power 100 ~ 240V AC
Frequency 50 / 60 Hz
Input Current 0.8 A
Output Voltage 12V DC
Output Current 3 A

Kit Contents

  • G-scan 3 Base Unit
  • Main DLC Cable
  • AC/DC Adapter
  • Cigarette Lighter Cable
  • AC/DC Power Cable
  • Carrying Case
  • Quick Manual
  • Vehicle Battery Cable
  • Self-Test Cable
