Delphi DS450 Diagnostic Tester

Delphi DS450

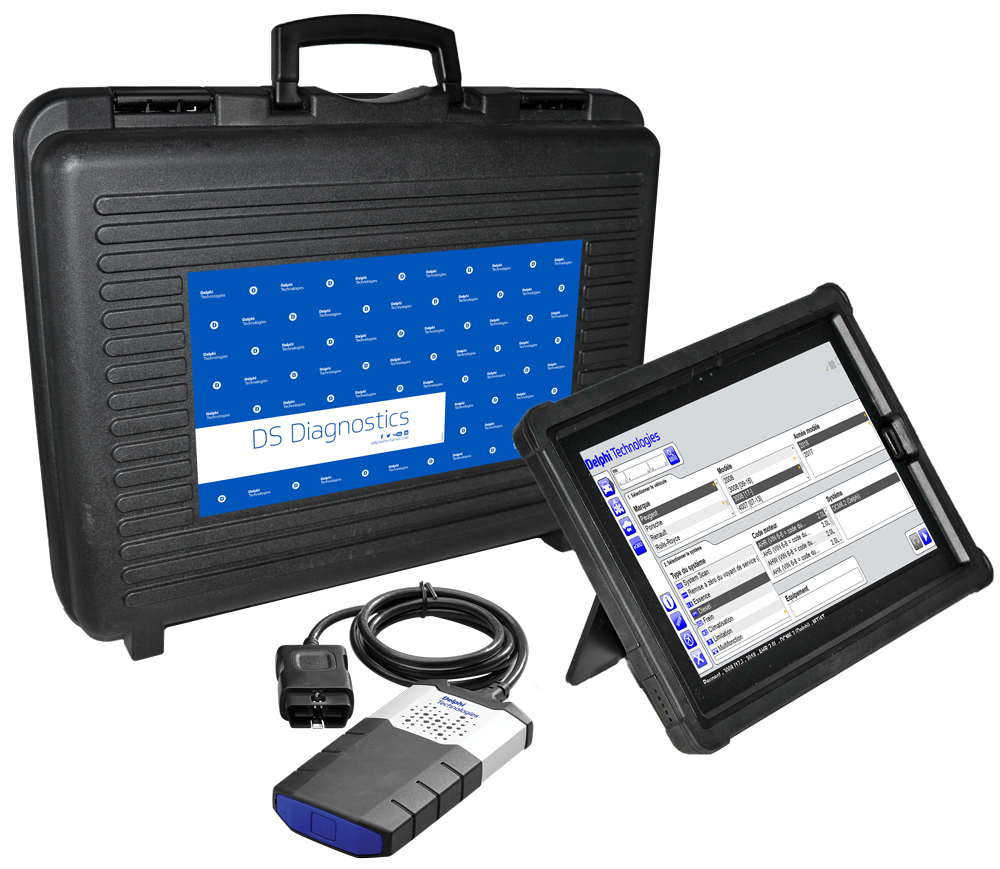

The Delphi DS450E package offers high level diagnostics across the key electronics systems for both car, light and heavy duty vehicles. Powered by Windows 8, the very latest tablet combines ultramobility and complete connectivity with rugged reliability. With a wide-view 10.1” IPS (in-plane switching) display and five-finger multitouch technology, technicians can quickly determine fault codes and be guided to the suspect area.

Key Functionality

• Full system coverage
• Service light reset
• Read and erase fault codes
• Read and graph live data parameters
• Intelligent system scan (ISS) - full vehicle ECU scans
• Programming
• Component activation and adjustment
• ECU coding
• Print and save diagnostic reports
• Full OBD flight recorder
• VIN recognition
• Battery voltage monitoring
• Intelligent system updates (ISU)
• Intelligent system identification (ISI)

Benefits to the Technician

• Latest tablet computing with Windows 8 Pro operating system.
• Intuitive software with USB security dongle for added software protection.
• Supports extensive vehicle database with three major software updates per 12 month license period, plus intermediate intelligent system updates (ISU).
• Car and heavy duty software supported by same VCI (vehicle communication interface) so no duplication of hardware required.
• Rugged case built for protection against six foot drop/shock, dirt and vibration.
• 10.1” HD LED IPS anti-glare screen for better visibility.
• Five-finger multitouch technology allows for precise control.
• Includes stylus pen for handwriting recognition.
• 2MP front-facing webcam and 8MP rear-facing camera with flash for improved technical support and online training.
• Total freedom of movement around the vehicle using latest Bluetooth wireless technology.
• VCI with built in flight recorder, LED flashlight, and battery voltage monitor for ease of use.
• Manufacturer OBD and EOBD protocols covered.
• Full service support including technical hotline and training.
• Lifetime warranty for VCI if software license is maintained continuously.

Technical Specification

• Dimensions (W) 10.1” x (L) 6.9” x (H) 0.34”
• Weight 585g
• OS Windows 8 Professional 32-bit
• Screen 10.1” Touch, Anti-Glare
• CPU Intel Atom Z2760 processor 1.8Ghz
• Graphics Intel® Integrated HD SGX545
• Storage 64GB SSD
• RAM 2GB DDR2
• Connectivity Wi-Fi (A/B/G/N), Bluetooth 4, 3-in-1 Card Reader, USB 2.0
• Camera Front: 2MP. Back: 8MP, 720p. Auto Focus and Flash
• Audio On-board soundcard and built-in speakers
• Battery Life Approx 10hrs on full charge. 30 days on standby

Downloads

Delphi Car and LCV Application List

Delphi Car and LCV Update List

Purchase Options

Purchase the DS450 with 12 months CAR software

Purchase the DS450 with 3 years CAR software and save £430.00

Delphi Truck Diagnostics

Delphi’s DS heavy duty software allows users to perform high level diagnostics on trucks, buses, LCVs and trailers. A highly efficient diagnostic tool, it includes functionalities such as intelligent system identification (ISI), intelligent system scan (ISS) and intelligent system updates (ISU), as well as features like setting of parameters, configurations, adjustments and calibrations, for quick and accurate diagnostics. Just as importantly it supports an extensive database with 47 heavy duty manufacturers on more than 57,000 vehicle systems.

Key Functionality

• Full system coverage
• Service light reset
• Read and erase fault codes
• Read and graph live data parameters
• Intelligent system scan (ISS) - full vehicle ECU scans
• Programming
• Component activation and adjustment
• ECU coding
• Print and save diagnostic reports
• Full OBD flight recorder
• VIN recognition
• Battery voltage monitoring
• Intelligent system updates (ISU)
• Intelligent system identification (ISI)

Benefits to the Technician

Extensive vehicle database: 47 truck, bus, LCV and trailer brands and over 57,000 system applications (correct as of R1 2014).

Key VMs Covered

• Alexander Dennis
• Allison
• Autosan
• Chevrolet
• Citroën
• Dacia
• DAF
• Dennis Eagle
• EvoBus Chassis
• Fiat
• Ford
• Generic Bus Systems
• Generic Truck Systems
• Haldex Trailers
• Hyundai
• Irisbus Chassis
• Isuzu
• Isuzu Truck
• Iveco
• Iveco Trucks
• Kamaz
• KIA
• Knorr Bremse Trailers
• Lancia
• Mahindra/Renault
• MAN
• MAN Bus Chassis
• Mazda
• Mercedes
• Mercedes Truck
• Mitsubishi
• Mitsubishi Fuso
• Multicar
• Nissan
• Nissan Trucks
• Opel/Vauxhall
• Optare
• Peugeot
• Plaxton
• Renault
• Renault Trucks
• Scania
• Scania Bus Chassis
• Seat
• Škoda
• Solaris
• Toyota
• Volkswagen
• Volvo Bus Chassis
• Volvo Trucks
• Wabco Trailers

Delphi Truck Application List

Delphi Truck Update List

Delphi Car and Truck Kit

A complete Delphi Diagnostic system including all the items above:

DS450, car and truck software for 12 months and truck cable kit.

Truck, Van and Trailer Cables

Complete Cable Kit

All of the cables detailed above
