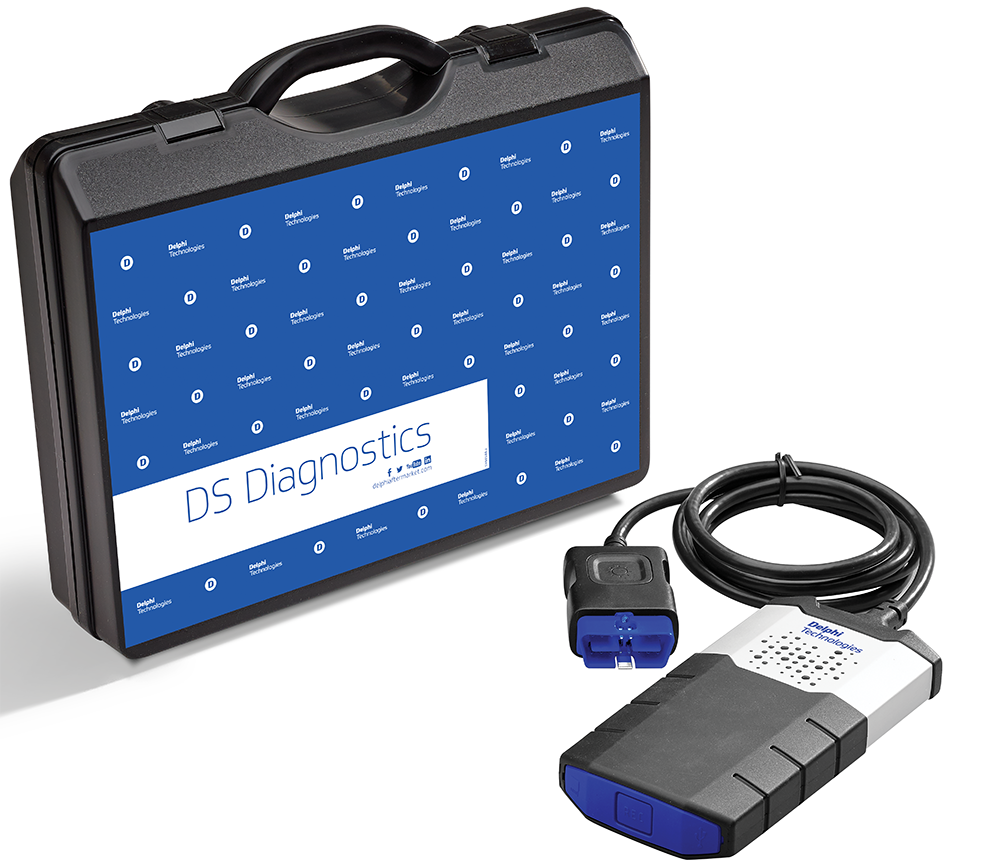

Delphi DS150 Diagnostic Tester

Delphi DS150

Combining versatility and ease of use with highly innovative functions and applications, Delphi’s DS car and LCV software provides high level capability for an extensive range of makes and models. In fact more than 60 car and light commercial brands and over 90,000 vehicle systems.

Available on a range of platforms including a convertible PC and tablets, as well as a software only option, technicians can perform service functions, repair and adjustments to the key vehicle systems including petrol and diesel engine management, ABS, SRS, gearbox, climate control, traction control, instrument panel and immobilizer etc, quickly, efficiently and accurately

Key Functionality

• Full system coverage
• Service light reset
• Read and erase fault codes
• Read and graph live data parameters
• Intelligent system scan (ISS) - full vehicle ECU scans
• Programming
• Component activation and adjustment
• ECU coding
• Print and save diagnostic reports
• Full OBD flight recorder
• VIN recognition
• Battery voltage monitoring
• Intelligent system updates (ISU). Intelligent system identification (ISI)
• No time out and no catch up on software
• 3 updates per year

Benefits to the Technician

• Mini-USB, security dongle paired with VCI (vehicle communication interface) during production for added protection.
• User friendly software with easy installation and no time-out.
• Extensive vehicle database: more than 60 car and light commercial brands and over 90,000 system applications (correct as of R1 2014).
• Three major software updates per 12 month license period - vehicles, models and functionality.
• Automatic checks for software patches, fixes and intermediate updates between releases (ISU).
• Available on a range of PC hardware platforms, as well as a software only option.
• Car and heavy duty software supported by same VCI so no duplication of hardware required.
• Automatic model/year selection with VIN recognition for accurate and quicker diagnostics.
• Full OBD flight recorder function to record parameters in real time while driving the vehicle.
• Intelligent system scan (ISS) of all vehicle ECU’s displays the system fault codes, providing a quick overview of the entire vehicle.
• Intelligent system identification (ISI) automatically selects the type of controller, ensuring the correct parameters for accurate diagnostics.
• Ability to see the different options for adjustments and adaptations without having the vehicle in front of you.
• Detailed instructions and help for OBD functions to assist you in your diagnosis and simplify even the complex functions.
• Built-in report function enables you to print a professional report with real time data for your customers and for your own records.
• Online technical assistance for remote support with hardware and software issues.

Key VMs Covered

• Abarth
• Alfa Romeo
• Audi
• Bentley
• BMW
• Cadillac
• Chevrolet
• Chrysler
• Citroën
• Dacia
• Daewoo
• Daihatsu
• Dodge
• Ferrari
• Fiat
• Ford
• Foton
• Great Wall
• Honda
• Hyundai
• Isuzu
• Iveco
• Jaguar
• Jeep
• Jinbei
• JMC
• KIA
• Lamborghini
• Lancia
• Land Rover
• Lexus
• Lotus
• Mahindra/Renault
• Maserati
• Mazda
• Mercedes
• MG
• Mini
• Mitsubishi
• Multicar
• Nissan
• Opel/Vauxhall
• Peugeot
• Porsche
• Renault
• Rolls-Royce
• Rover
• Saab
• Samsung
• Seat
• Shuanghuan
• Škoda
• Smart
• SsangYong
• Subaru
• Suzuki
• Tata
• Toyota
• Volkswagen
• Volvo

Recommended System Requirements

• Processor Intel® Pentium® 4 1.7 GHz or better (or similar)
• Operating System Windows 8, Windows 7, Windows Vista®, Windows® XP* SP3
• Internal Memory 1024-2048MB RAM (depending on operating system)
• Hard Disk Space 1500MB
• Screen Resolution 1024 x 768 or higher
• Connections and Communications Internet connection, Bluetooth (SPP) or USB
• Third-party Software Microsft .NET Framework 3.5, Adobe Acrobat Reader 4.0 or later

Technical Specifications

• Vehicle Communication Interface Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J850), PWM (J850), RS485 (J1708), TTL and (SPI, analog in, 5 volt out)
• Vehicle Connection Cable 1600mm length, detachable (with 26pin Hd D-sub) Connector ISO15031-3 (SAE J1962) with LED lamp
• Communication Interface USB type B connector and Bluetooth version 2.1 + EDR, range 30m
• Other Micro-SD Card, flight recorder trigger, alarm and Multi Colour LED Status indicator
• Power Supply Range: 6 - 36 V. Max power consumption: 500 mA
• Dimensions 180 x 85 x 30 mm
• Weight 480g
• Operating Temperature From -20º to 70ºC
• Conformity CE (2004/108/EC), RoHS (2002/95/EC)

Search for Real Time Data Parameters

This function is available in the custom datalist view. It enables a quick way to easily find the parameter you are looking for.

Simply start to type the parameter or component, and the list will show only the parameters related to what you have typed.

E.g. start typing "temp" and the list will show you Air inlet temperature sensor, Coolant temperature, Fuel temperature etc. All parameters containing "temp" will be shown. Click the "X" button to clear the search field.

Search for OBD Functions

The search for OBD functions can be found in the vehicle tree selection page. Once you have selected Brand, Model, Year it gives you the ability to fast and easy see in which systems a unique function can be found or to find the specific function. The list of vehicles will be greyed out if the function is not available.

E.g. Enter "coding" in the search field and all system types with coding functionality will be available, the rest will be greyed out. The function works similar in the "OBD functions" tab; Type in "sensor" and all functions with the wording "sensor" in its description will be filtered out.

Quick VIN Search

To make the vehicle selection even easier and faster we have moved the VIN decoder on top and added Quick access to VIN read-out.

Simply click on the VIN search button and the program will read-out the VIN from the vehicle, or type in your VIN and the vehicle selection will adjust dynamically as you write.

Downloads

Delphi Car and LCV Application List

Delphi Car and LCV Update List

Purchase Options

Purchase the DS150 with 12 months CAR Software

Trade-IN

Trade in your old Delphi or competitors tool, for the DS150 with 12 months software.

Purchase the DS150 with 3 years CAR software and save £ 40.00

Delphi Truck Diagnostics

Delphi’s DS heavy duty software allows users to perform high level diagnostics on trucks, buses, LCVs and trailers. A highly efficient diagnostic tool, it includes functionalities such as intelligent system identification (ISI), intelligent system scan (ISS) and intelligent system updates (ISU), as well as features like setting of parameters, configurations, adjustments and calibrations, for quick and accurate diagnostics. Just as importantly it supports an extensive database with 47 heavy duty manufacturers on more than 57,000 vehicle systems.

Key Functionality

• Full system coverage
• Service light reset
• Read and erase fault codes
• Read and graph live data parameters
• Intelligent system scan (ISS) - full vehicle ECU scans
• Programming
• Component activation and adjustment
• ECU coding
• Print and save diagnostic reports
• Full OBD flight recorder
• VIN recognition
• Battery voltage monitoring
• Intelligent system updates (ISU)
• Intelligent system identification (ISI)

Benefits to the Technician

Extensive vehicle database: 47 truck, bus, LCV and trailer brands and over 57,000 system applications (correct as of R1 2014).

Key VMs Covered

• Alexander Dennis
• Allison
• Autosan
• Chevrolet
• Citroën
• Dacia
• DAF
• Dennis Eagle
• EvoBus Chassis
• Fiat
• Ford
• Generic Bus Systems
• Generic Truck Systems
• Haldex Trailers
• Hyundai
• Irisbus Chassis
• Isuzu
• Isuzu Truck
• Iveco
• Iveco Trucks
• Kamaz
• KIA
• Knorr Bremse Trailers
• Lancia
• Mahindra/Renault
• MAN
• MAN Bus Chassis
• Mazda
• Mercedes
• Mercedes Truck
• Mitsubishi
• Mitsubishi Fuso
• Multicar
• Nissan
• Nissan Trucks
• Opel/Vauxhall
• Optare
• Peugeot
• Plaxton
• Renault
• Renault Trucks
• Scania
• Scania Bus Chassis
• Seat
• Škoda
• Solaris
• Toyota
• Volkswagen
• Volvo Bus Chassis
• Volvo Trucks
• Wabco Trailers

Delphi Truck Application List

Delphi Truck Update List

Purchase the Delphi DS150 Diagnostic Interface with 12 months TRUCK software.

Delphi Car & Truck Kit

A complete Delphi Diagnostic system including all the items above:

DS150, car and truck software for 12 months and truck cable kit.

Truck, Van and Trailer Cables

Complete Cable Kit

All of the cables detailed above
