VAG Force Ignition Tool
VAG Force Ignition Tool

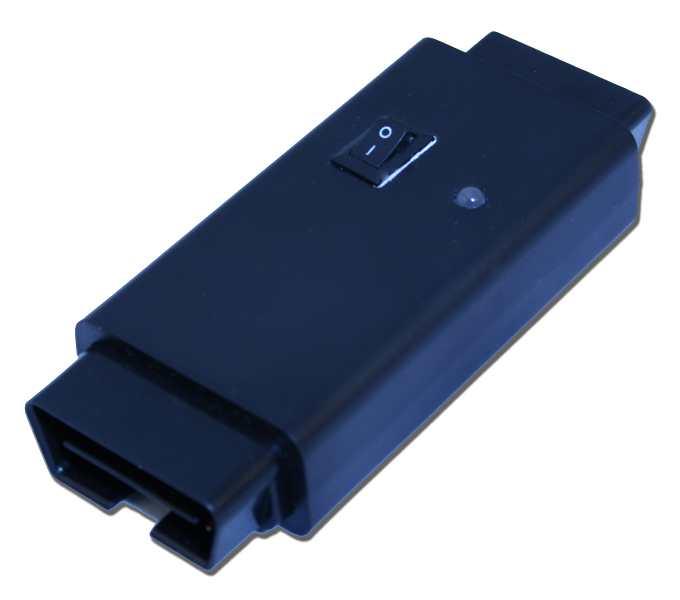

The Force Ignition tool for VW, Audi, Seat and Skoda has the ability to force the ignition on without an ignition key and also test the OBD socket wiring for power and faults.
Just plug the tool into the OBD on the car and press the test button and it will tell you if there is power and earth to the socket, as well as detecting a short in the vehicles OBD socket. Also, using this VAG tool it is possible to force the ignition on (Terminal 15) in VAG vehicles from the OBD diagnostic port.This will allow you to wake up the control units in the vehicle and establish OBD communication without having a key.
It is fitted with an OBD male port on one end and a female port on the other end which enables you to continue to use the diagnostic port in conjunction with this product. The K-Line and CAN connections pass through the device and are available for communication. A switch is fitted to toggle the ignition ON/OFF and LEDs confirm the presence of power and ignition status.
Models Covered
- VW Touran 1T
- VW Golf 1K
- VW GOLF 5M
- VW EOS 1F
- VW PASSAT 3B
- VW TOUAREG 7L
- VW PASSAT 3C
- VW TIGUAN 5N
- VW POLO 9N
- VW JETTA 1K
- VW CADDY 2K
- VW LT35 2D
- VW TRANSPORTER 7H
- VW SCIRROCO 13
- VW BEETLE 1Y
- VW SHARAN 7M
- VW FOX 5Z
- VW POLO 6R
- AUDI A3 8P
- Audi A4 8E
- Audi A6 4F
- Audi Q5 8R
- AUDI Q7 4L
- AUDI TT 8J
- AUDI A8 8K
- Bentley 3W
- Porsche 9P
- Skoda Fabis 6Y
- Skoda Octavia 1Z
- Skoda Roomster 5J
- Seat Ibiza 6L
- Seat Alhambra 7N
- Seat Altea 5P
- Seat Leon 1P
