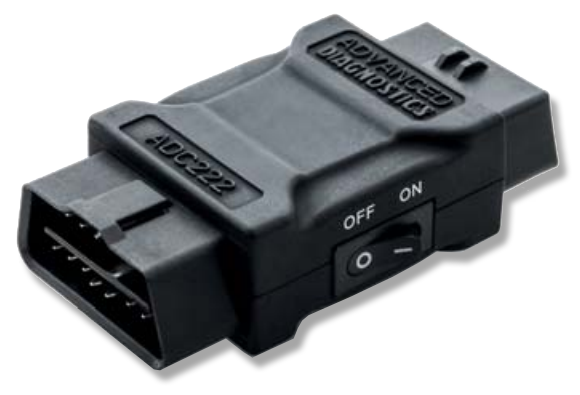

ADC222 Force Ignition Tool

ADC222 Force Ignition Tool

The Force Ignition Tool from Advanced Diagnostics provides auto locksmiths the ability to force the ignition on various makes and models that include Audi®, Volkswagen®, Seat® and Škoda® vehicles via the OBD socket when a key is unavailable.

What does the Force Ignition Tool do?

The Force Ignition Tool is a versatile plug and play tool. Simply plug it into the vehicle’s OBD port and then plug your ADC250 master cable and Pro tester into the ADC222. When you press ON, the ADC222 automatically supplies an ignition feed via the OBD socket without the need for a key.

The locksmith can read the pincode with the MVPPro or AD100Pro prior to cutting a key.

Technical Specification

• 16 pin OBD connector
• ADC250 connector
• No external power source required
• Compatible with MVP Pro and AD100 Pro key programmers
• Connects to vehicle via OBD Socket
• Ignition on allows for pincode reading (selected vehicles)
• User-friendly and easy to use

Vehicle Applications

• Audi A1 2011 - 2014
• Audi A3 2003 - 2012
• Mini One 2001 - 2006
• Mini One 2007 - 2013
• Renault Kangoo 2 2008 - 2011
• Seat Alhambra 2001 - 2015
• Seat Ibiza 2002 - 2013
• Seat Leon 2008 - 2012
• Seat Mii 2012 - 2014
• Skoda Citigo 2012 - 2014
• Skoda Fabia 2007 - 2012
• Skoda Superb 2009 - 2012
• VW Beetle 2006 - 2014
• VW Caddy 2004 - 2014
• VW Eos 2006 - 2011
• VW Golf 5 2006 - 2014
• VW Jetta 2010 - 2014
• VW Passat CC 2009 - 2012
• VW Polo 2004 - 2014
• VW Tiguan 2008 - 2012
• VW Touareg 2003 - 2008
• VW Touran 2004 - 2013
• VW Transporter 2008 - 2014
• VW Up 2012 - 2014
