Speed Smoke Leak Detection Machine
Redline’s Latest High Pressure Smoke Tester
The first diagnostic leak detector of its kind
Both High & Low pressure testing available in one unit. High pressure testing means you can now test boosted turbo or supercharged systems and components to find even the smallest of leaks.
Speed Smoke allows you to test:
- Turbo / Boost Leaks
- Charge Air Cooler Leaks
- Exhaust System Leaks
- Wind and Water Leaks
- Cabin Leaks
- Intake System Leaks
- Seals, Gaskets, Hoses, Fittings Etc.
The first diagnostic leak detector of its kind, SpeedSmoke™ was designed to address the requirements of turbo charged engines. SpeedSmoke™ has full featured diagnostic capability to pinpoint faults in naturally aspirated engines and also pinpoint high pressure turbo, diesel, supercharged, boost leaks with 100% reliability.
SpeedSmoke™ creates a dense, easily visible vapor with variable pressure up to 20 times the PSI and 40 times the flow of traditional smoke machines to allow technicians to simulate the boost load of a running engine, with the engine safely off.
SpeedSmoke™ also features an onboard micro air compressor for total portability and includes all needed accessories. This machine is engineered with the same technology that has been mandated essential by OEMs in 114 countries around the world including General Motors, Mazda, Subaru, Nissan, INFINITI, Jaguar Land Rover and more. SpeedSmoke™ is Made in America.
SpeedSmoke offers the following features:
- For use in both low pressure EVAP applications and high-pressure turbo, diesel engines
- Variable Pressure | Variable Flow
- Up to 20x PSI and 40x flow of a typical EVAP machine
- Onboard Micro Air Compressor
- Runs on 12V DC Power
- Free of Dyes & Contaminants Image speedsmoke with acc off redile site
- Made in America

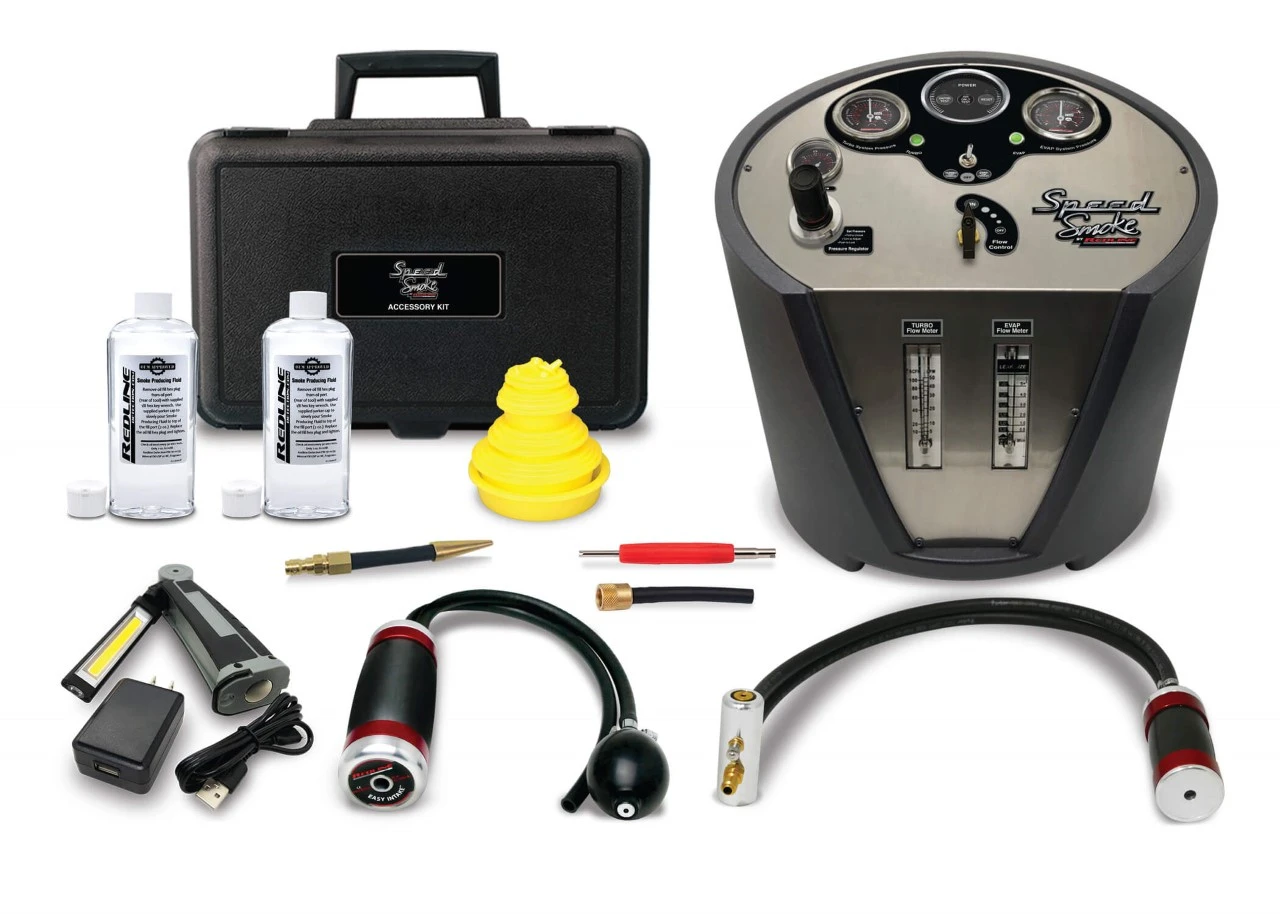

Included in the Box
- 1x Speed Smoke
- 1x Accessory Storage Case
- 1x 1.9” Power INTAKE™
- 1x LED Cordless Light
- 1x Smoke Producing Fluid
- 1x Easy INTAKE™
- 1x EVAP Service Tool Kit
- 1x Cap Plug Kit
- 1x EVAP Quick Connect Hose for Speed Smoke
Technical Specifications
| Dimensions | 14 in x 9 in x 15 in (35 cm x 23 cm x 38 cm) |
|---|---|
| Weight | 27 lbs (12.25 kg) |
| Power Supply | 12V DC |
| Pressure Supply | Internal Pump or External Compressed Air |
| Output Pressure (EVAP) | 11 - 14 in wc / 0.47 PSI / 0.032 BAR |
| Output Pressure (TURBO) | 2-17 PSI (.14 - 1 BAR) |
| Operating Temperature | 0°F to 140°F (-17°C to 60°C) |
| Operating Humidity | No Restrictions |
| Operating Altitude | No Restrictions |
| Operating Modes | Vapor Cycle / Air Only Cycle |
| Housing Material | Steel/High Impact ABS Plastic |
| Vapor Chamber Material | Billet Aluminum |
| Vapor Chamber Assembly | Bolted |
| Vapor Chamber Warranty | Lifetime |
| Speed Smoke™ Warranty | 1 Year |
Smoke Pro TT to Speed Smoke Upgrade
Have you got an original Smoke Pro Total Tech? Are you now looking for a High Pressure leak detector?
Upgrade from your Smoke Pro Total Tech to the brand new Speed Smoke and receive a £300 + VAT discount.
Send us your Smoke Pro Total Tech and receive a brand new Speed Smoke kit for only £1695.00 +Vat
Contact us on 01823 328531 For Details
