Smart Aerial + Portable Key Cloning Device - ADC245

Smart Aerial + Portable Key Cloning Device

The Smart Aerial+ from Advanced Diagnostics is the low investment, easy to use cloning device, ideal for delivering a reliable, no-nonsense key duplication service to the consumer.

• New “Smart” Cloud cloning device with intuitive software associated to MYKEYS Pro.
• Integrated into the MYKEYS Pro support ecosystem
• Updateable with new functionality in the future
• Flexible transponder pricing. With the new transponder, GTI-Pro
• Lightweight, portable device with internal, rechargeable battery (USB cable and mains charging cable with a universal AC adaptor)
• WiFi and Bluetooth connectivity
• U-Snoop functions integrated
• New cloning capability for Mazda (8C Temic, not available for RW4)
• Transponder pre-setting function
• Compatible with all existing Silca cloning capabilities. Certified CE, UKCA, FCC,RHOSS,RAE.

Key Features

• Up to 3x times faster cloning thanks to superior calculating performance
• Portable with an internal, rechargeable battery
• Works together with the MYKEYS Pro app to guide user through the cloning process
• Future proof: updateable, no memory capacity limits
• More powerful aerial
• Full connectivity with WiFi and Bluetooth
• Compatible with all Silca cloning technology
• Reliability of using Advanced Diagnostic proprietary servers in the cloud cloning process
• Developed and made in Italy. CE certified

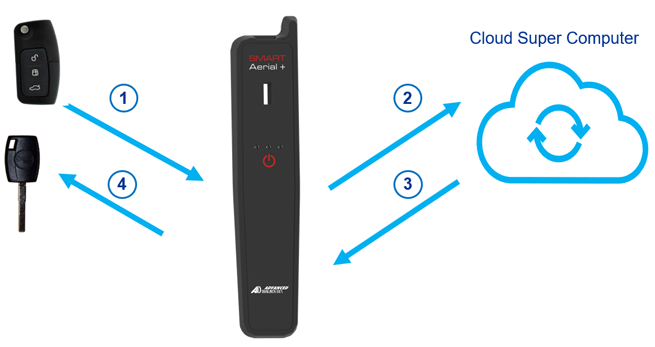

Cloning Process

1. Smart Aerial+ reads original key
2. Data sent to cloud for calculation
3. Cloning data sent back to Smart Aerial+
4. Transponder is cloned to create a new key

Technical Specification

• Dimensions:
  • Length: 210mm
  • Width: 48mm
  • Depth: 30mm
  • Weight (unpacked): 120g
• Power supply:
  • 5 VDC mains connection via USB port
  • 3.7 VDC with the battery
• Battery:
  • Voltage: 3.7 VDC
  • Capacity: 1000 mha
• Antenna frequency range:
  • Wi-Fi: 2.4 – 5.0 GHz
  • LF: 125 – 134 KHz
