PicoScope 4-Channel Diesel Kit
£2290.00 + VAT
P/No. : picopp924
PicoScope 4-Channel Commercial Vehicles Kit
This kit is based on the award–winning 4–Channel Standard Kit but has been configured especially for diesel engines.
The 4–Channel Diesel Kit is centred around the PicoScope 4425 Automotive Oscilloscope. The PicoScope 4425's fast sampling rate supports the capture and viewing of FlexRay and CAN bus signals, whilst its memory depth of 250 megasamples means that complex waveforms, such as common rail diesel signals, can be recorded without sacrificing horizontal resolution.
The Pico 200A/2000A current clamp is included as standard in the 4–Channel Diesel Kit. With a DC range of 0–2000 amps this current clamp is ideal for measuring the high currents drawn by the starter motors of commercial vehicles.
* LAPTOP NOT INCLUDED *

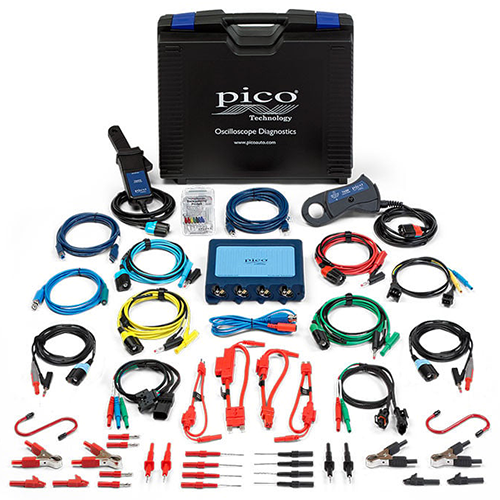

The Commercial Vehicles Diagnostics Kit (PP924) contains:
| PicoScope 4425 | 1 |
| Channels | 4 |
| Accuracy | +/- 1% |
| Memory | 250 M samples |
| Maximum sampling rate | 400 MS/s |
| 20A / 60A AC/DC current clamp | 1 |
| 200A / 2000A AC/DC current clamp | 1 |
| 60 MHz oscilloscope probe x1/x10 | 1 |
| Premium test leads | 4 |
| 5m black premium test lead | 1 |
| 2-pin break-out lead | 1 |
| 10:1 attenuator | 1 |
| Backpinning probe set | 1 |
| Multimeter probe (Black) | 2 |
| Multimeter probe (Red) | 2 |
| Small crocodile / gator clip (Black) | 2 |
| Small crocodile / gator clip (Red) | 2 |
| Battery Clip (Red) | 1 |
| Battery Clip (Black) | 2 |
| Flexible Backpinning Probe (Black) | 2 |
| Flexible Backpinning Probe (Red) | 2 |
| Shrouded to unshrouded 4mm adapter (Black) | 2 |
| Shrouded to unshrouded 4mm adapter (Red) | 2 |
| Extension lead for ATC fuses | 1 |
| Extension lead for Mini fuses | 1 |
| Fuse extension leads - JCASE | 1 |
| S-hook | 2 |
| Automotive software CD-ROM | 1 |
| Training resources DVD | 1 |
| Automotive Quick Start Guide | 1 |
| USB cable 1.8m | 1 |
| Carry Case | 1 |
