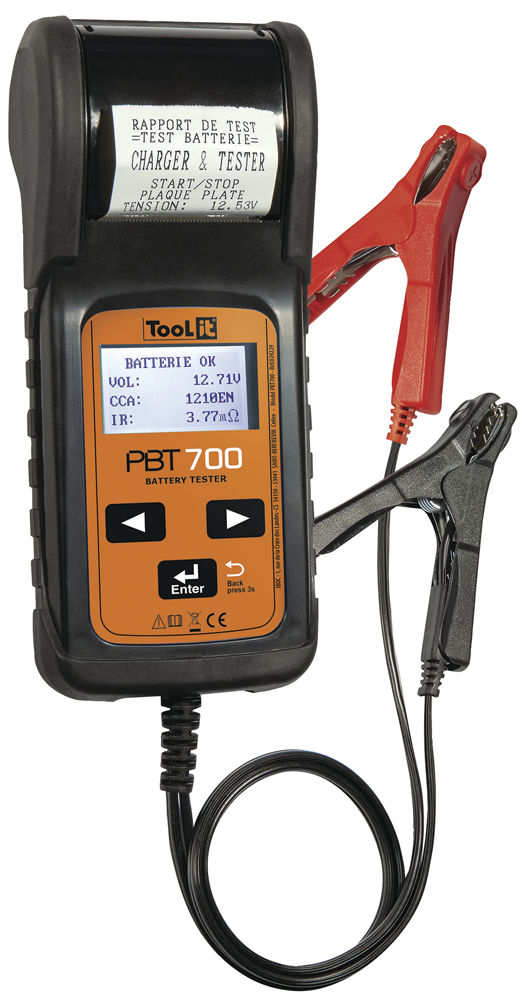

GYS PBT700 Battery Tester

GYS PBT700 Battery Tester

Professional battery tester providing highly-accurate results and with in-built printer.

Features

• Battery 12 V : voltage test and state of charge.
• Starter 12 and 24 V : test of the start voltage.
• Alternator 12 and 24 V : test of no load voltage and charging voltage as well as current undulation during the charge.
• Printout of the results using integrated thermal printer (no ink required).

Instant Analysis

• Battery voltage (8 V to 30 V)
• Available starting power
• Charge state and battery health (%)

Battery Types

Compatible with multiple types of lead-acid battery ranging from 7 to 240 Ah :

• VRLA / GEL / AGM FLAT / AGM SPIRAL / SLI sealed batteries
• STANDARD LIQUID batteries
• START / STOP batteries (EFB / AGM)

Operating Range:

• EN : 40 > 1885 CCA
• DIN : 25 > 1120 CCA
• SAE/CCA : 40 > 2000 CCA
• JIS : japanese battery
• IEC : 30 > 1320 CCA (international standard)
• CA/MCA : 50 > 2400 CCA (marine battery)

Highly Accurate

• Automatic compensation for external temperature.
• Advanced dynamic resistance measurement technology minimises battery discharge and displays an accurate result which is unaffected by :
  • the surface charge
  • Vehicle consumers (lights, various indicators, etc)
  • Contact imperfections (worn out terminals / lugs, unfastened lugs, etc)

Practical

• Insulated clamps
• Large backlit display screen
• Adjustable screen brightness
• Full test report showing date/time and personalised name
• Multilingual interface (10 languages)
• Protected against polarity reversal.
• ABS case (acid resistant) and protection against shock
