EV Tools and Safety Equipment
Recovery Operator EV High Voltage Safety Kit
Following the publication of “Recovery operators: working with electric vehicles” by the Department for Transport. Prosol UK have brought together a complete safety kit for Recovery Operators to comply with the recommendations of this report. Kit contains the following items.
EHV Workshop Safety Starter Kit contents:
- Holdall – High Vis
- Electrical Insulating Gloves – to BS EN 60903 Class 0 (1,000V)
- Cotton Under-Gloves
- Leather Over-Gloves – to BS EN 388 & BS EN-420
- Safety Glove Storage Box
- ChemSafe Gloves – to BS EN 374-1&5:2016 and BS EN 388:2016
- Respirator Mask – Half Face to BS EN 405
- ABEK1P3 Filters for Respirator Mask HMR7003 to BS EN 14387 (PAIR)
- Safety Goggles – Indirect Vent – to BS EN 166
- First Aid Kit for Burns inc. H.F. Antidote Gel
- Digital InfraRed Thermometer 12:1
- Faraday Key Pouch with Snap Shackle – 2 Pack
- Flexi-Head Combination Spanners – 3 PIECE SET – 10,11 & 12mm
- Insulating Shrouds for 12v Battery Earth x 10
- Hazard Warning Barrier Tape Yell/Blk – 70mm(w) x 500Mts(L)
- EV Warning High Voltage Reusable Sticker – 140 x 100mm – 12 Pack

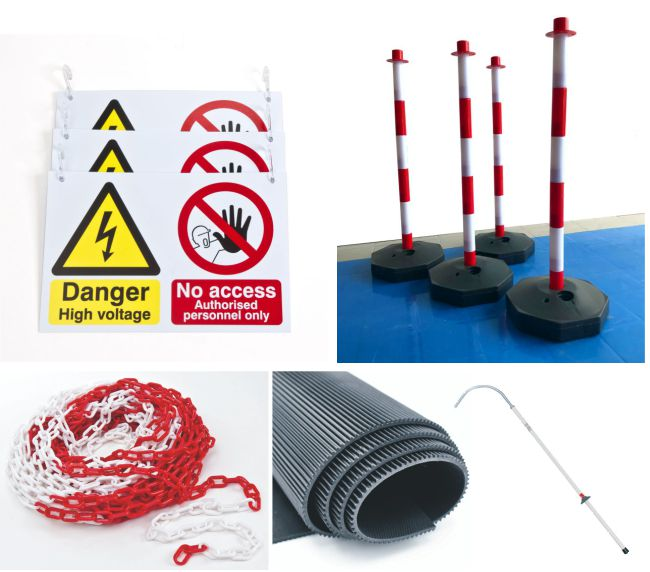

EHV Workshop Safety – Starter Pack (Plastic Posts & Bases)
The EHV Workshop Safety Starter Pack provides a concise range of products to ensure that minimum safety standards can be achieved. To denote the “Vehicle Exclusion Zone” we supply Barrier Chain with Plastic Posts and Bases.
EHV Workshop Safety Starter Kit contents:
- 6 x Red & White 90cm Post with Fillable Base
- 25 metres of Red and White Plastic Barrier Chain
- 5 x Barrier Chain Connectors
- 5 x “S” Hooks
- 3 x EHV Warning Signs for Barrier Chain
- 1 x Insulated Rescue Pole
- 1 x 1 metre Electrical Insulating Rubber Mat

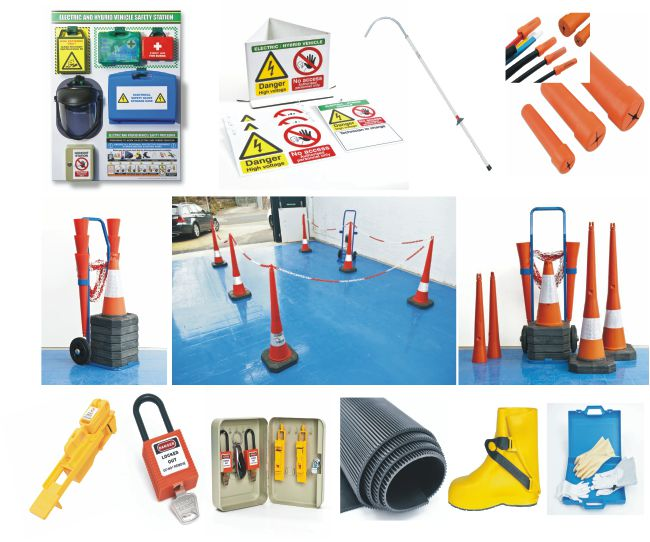

EHV Workshop Safety & P.P.E. Pack
All the P.P.E. and Workshop Safety Products you need in one convenient safety package.
Contains :
- 1 x HCS3266 – Hazard Area Trolley, Posts and Bases & Chain System
- 1 x EVP1755 – ProStore EHV First Aid & PPE Shadow Panel Storage Board FULLY EQUIPPED
- 1 x WSP7347 – EHV Warning Sign Pack
- 1 x IRP2920 – Insulated Rescue Pole
- 1 x DMO2017L – Electrically Insulating Safety Over-Boots
- 2 x RIM2311 –1 x 1 metre Electrical Insulating Rubber Mat to IEC 61111
- 1 x CES6123 – Cable End Shrouds with Grip Collars – 3 piece set
- 2 x FLD4566 – Isolation Port (MSD) Lockout Device
- 2 x LOP4540 – Insulated Safety Lockout Padlock

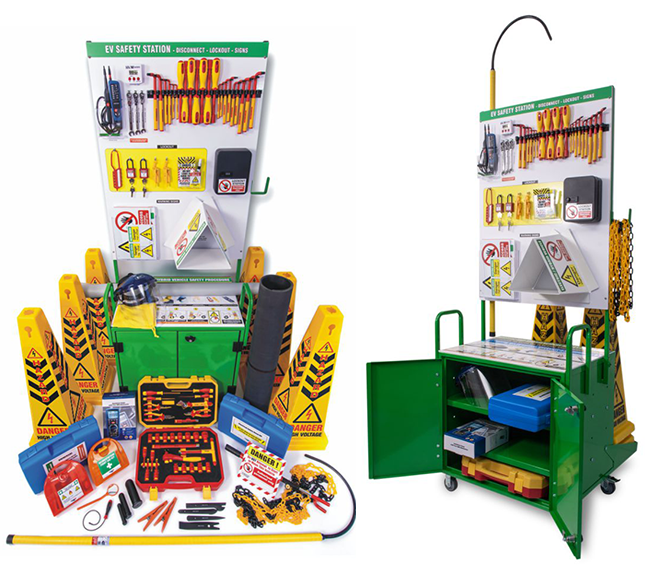

Mobile EV Safety Station
Our mobile EV safety station provides a comprehensive range of products for EV service and repair workshops.
Includes many of the items you need to safely isolate and de-energise Electric Vehicles and essential protective workwear for technicians.
Supplied with the storage boards to give easy access to first aid, safety and lockout products, along with insulated tools and safety signs.
Contains :
- E.V. Disconnect, Lockout & Signs Panel
- E.V. First Aid & Safety Panel
- Vehicle Status – Self Cling Window Stickers
- Insulated Nut Spinner Set 7pc – VDE Certified
- Insulated Star Key Set Extra Long 9pc – VDE Certified
- Insulated Hex Key Set Extra Long 6pc – VDE Certified
- Flexi-Head Combination Spanner – 3 Piece Set – 10, 11, 12mm
- 2 x Isolation Port (MSD) Lockout Device
- 12 x High Voltage Re-Usable Adhesive Sticker
- Lockout Station
- 10 x Lockout Car Key Tags (Re-usable)
- Lockout Safety Nylon Hap
- 2 x Insulated Safety Lockout Padlock
- 5 x Lockout Padlock Tags for EHV (Re-usable)
- Electrical Voltage Tester
- Disconnect Shut Down Timer for EV’s
- 5 x EHV Warning Sign Pack
- Workstation First Aid Kit
- First Aid for Burns Kit to treat; Heat, Arc Flash and HF Acid skin contact
- UNIVERSAL – Spill Response Kit for LITHIUM & NiMH Battery Electrolyte
- Rescue Hook with insulated pole)
- Plastic Barrier Chain – Yellow & Black – 25 metre length
- Cable End Shrouds – 3 Piece Pack
- Face Shield Visor – Electric Arc Protection
- Insulated Magnetic Pick Up Tool
- Insulated Trim/Cable Management Tool Set 4pc
- Insulated Inspection Mirror 50mm Dia
- Face Shield Protective Storage Bag
- 2 x Insulated Spring Loaded Plastic Clamp for Shroud
- Insulated Tool Kit 1/2″ Drive – 29piece – VDE Certified
- Transparent Insulating Shroud 1,000VDC – 1m x 1.3m
- 6 x Warning Bollard – High Voltage Hazard – 90cm
- EHV Multimeter with Insulation Test – CAT III to 1,000VDC
- Electrical Insulating Rubber Mat to IEC 61111 – 1 x 1m Mat
- Electrical Safety Glove Kit – Large
- Steering Wheel Lockout with Warning Sign
- EV Work Station Trolley
EV Fire Blanket
Designed to contain Electric and Hybrid Vehicle fires, the EV Car Fire Blanket has been developed after many months of research and development.
The most common form of fire in electric or hybrid vehicles is when the high energy battery is damaged, or a manufacturing fault results in a short circuit. The battery can then go into “Thermal Runaway”, this is a phenomenon where damaged cells heat up rapidly to such an extent that a fire starts. The fire then compromises adjoining cells and a “domino effect” occurs spreading to the whole battery array.

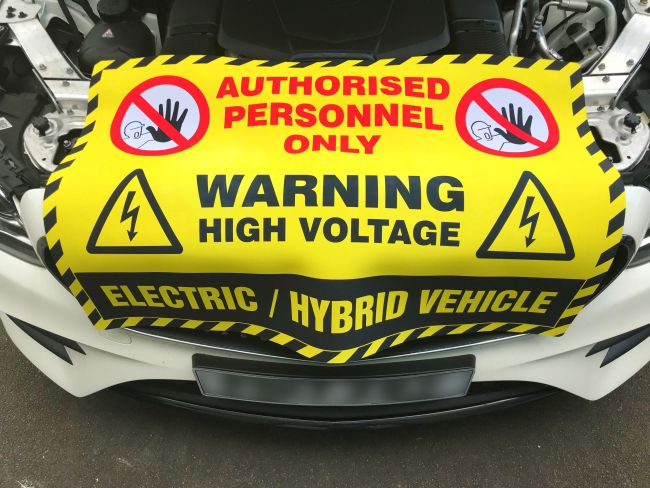

Wing Cover Protector – EHV Warning
The EHV Warning Wing Cover has been designed to protect both the vehicle you are working on and fellow technicians. Manufactured with a soft rubber backing and nylon fabric facing.
Printed in durable, fade resistant inks in high impact colours for great visibility.
Size: 90 x 60cm

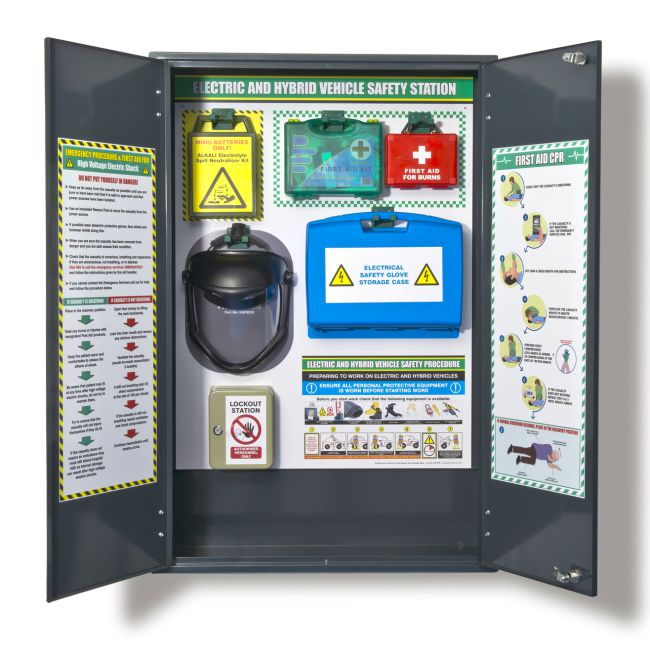

ProStore EHV Wall Mount Storage Cabinet WITH PRODUCTS
The ProStore Wall Mount Storage Cabinet ensures controlled access to the specialist EHV safety products whilst protecting and securing your investment. Made in the UK to Prosol’s unique design, the ProStore Wall Mount Storage Cabinet has a durable welded construction and incorporates two heavy duty locks (keyed alike) to ensure security. Powder coated in a durable graphite grey finish from stock, although other colours are available for quantity orders.
Supplied with the ProStore EHV First Aid & PPE Shadow Panel Storage Board (EVP1755) & all the products list below.
- Glove Storage Box
- 10 pairs Cotton Under-Gloves
- 1 pair Dielectric Safety Gloves (Class 0) (M, L or XL)
- 1 pair Leather Over-Gloves
- First Aid Kit for Burns
- First Aid Kit to BS8599-1
- Alkali Electrolyte Spill Neutralisation Kit
- Face Shield with Electric Arc Visor
- Face Shield Protective Bag

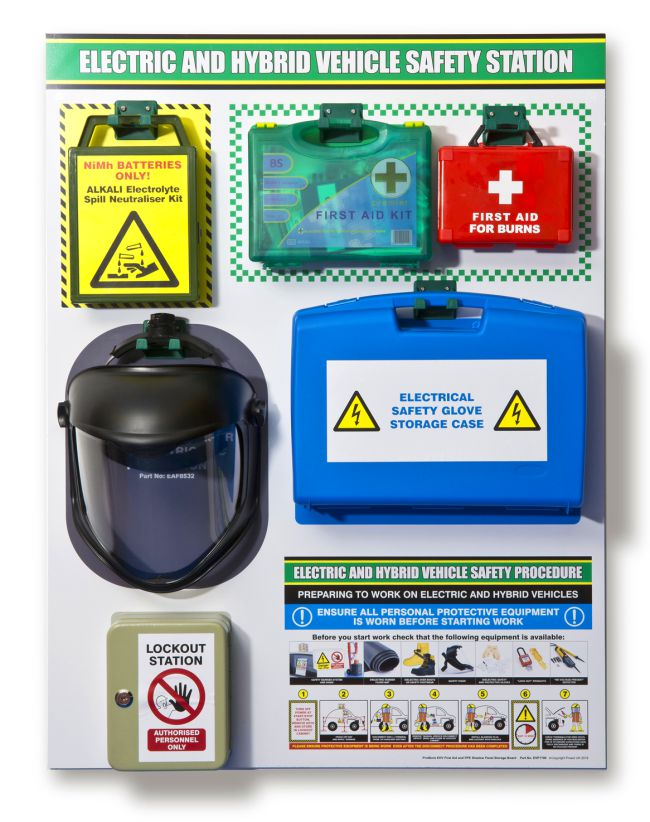

ProStore EHV Shadow Panel Storage Board WITH PRODUCTS
The ProStore EHV Shadow Panel Storage Board supplied with the safety critical PPE and First Aid products needed when carrying out Electric and Hybrid Vehicle maintenance and repair.
Supplied with the following products, ready to use:
- Glove Storage Box
- 10 pairs Cotton Under-Gloves
- 1 pair Dielectric Safety Gloves (Class 0) (M, L or XL)
- 1 pair Leather Over-Gloves
- First Aid Kit for Burns
- First Aid Kit to BS8599-1
- Alkali Electrolyte Spill Neutralisation Kit
- Face Shield with Electric Arc Visor
- Face Shield Protective Bag

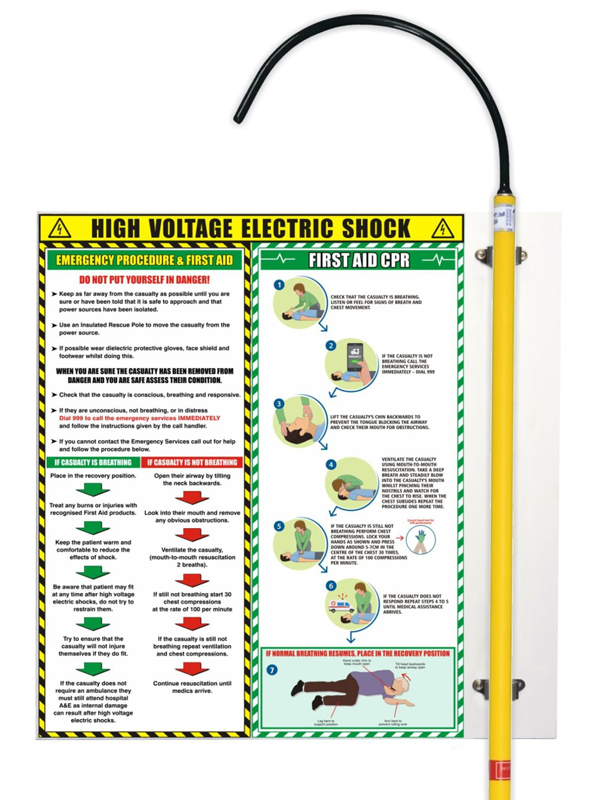

ProStore Rescue Pole Holder and Electric Shock Safety Advice Panel
The ProStore Rescue Pole Holder and Electric Shock Safety Advice Panel provides convenient storage and accessibility for the Insulated Rescue Pole IRP2920 (supplied separately).
Designed by Prosol, the panel incorporates electric shock safety advice information and CPR instruction.
Printed on a durable 10mm thick polymer panel, measuring 75 x 75cm with pre-mounted clips to hold the Insulated Rescue Pole.

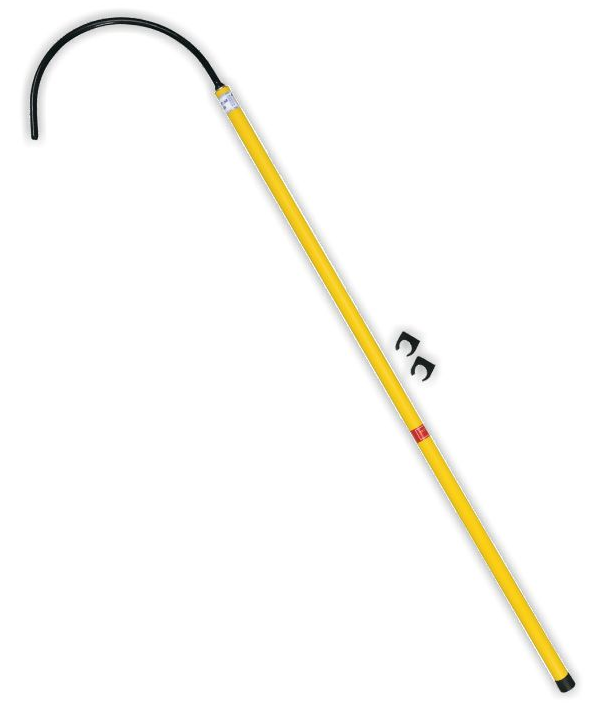

Insulated Rescue Pole
An electrically insulated rescue pole with hook, 1.45 metres long and rated to 45kV supplied with wall mounting brackets.
Designed to safely remove victims of electric shock from danger.
Conforms to NF EN 50508.

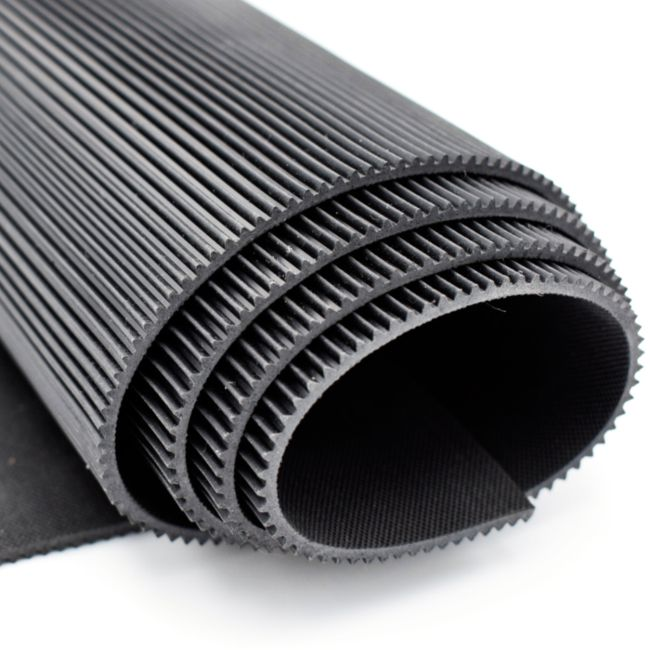

Electrical Insulating Mat IEC 61111 for Electric Hybrid Vehicle Service
Electrical Insulating Rubber Matting is essential for ensuring the safety of technicians whilst working on Electric and Hybrid Vehicles.
Manufactured to the international standard IEC 61111 Class 0, offers protection up to 1,000 volts. produced with a ribbed profile giving it an increased surface area, which helps to disperse electrical discharge and offers anti-slip properties.
Available in the following cut sizes
- 1 x 1 metre
- 1 x 2 metre
- 1 x 10 metre (full roll)

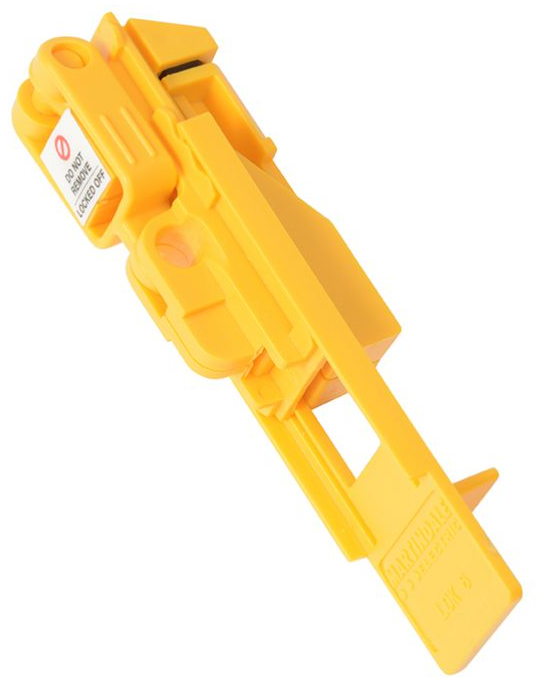

Isolation Port (MSD) Lockout Device
The Isolation Port (MSD) Lockout Device is adjustable to suit a wide variety of Electric and Hybrid vehicle isolator sockets, also known as the Manual Service Disconnect (MSD) port. It has an adjustable bar and cam action that allows it to be locked off with a 6.5mm Insulated padlock (Prosol part number LOP4540 – supplied separately), to prevent unauthorised reinsertion of the isolator and restrict fingers touching live terminals. A small but essential piece of equipment to safeguard technicians working on Electric and hybrid vehicles.
Can be stored in the Lockout Station as shown in Associated Products below.

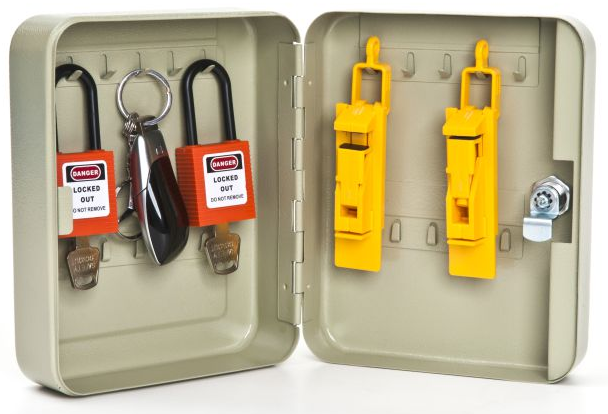

Lockout Station
The Lockout Station ensures vehicle keys, Isolators (MSD) and Lockout Padlocks are securely stored. Manufactured from pressed metal plate.
Isolators and Padlocks NOT included (sold separately).
Dimensions of: 20 x 16 x 7.5cm. – supplied with 2 keys.

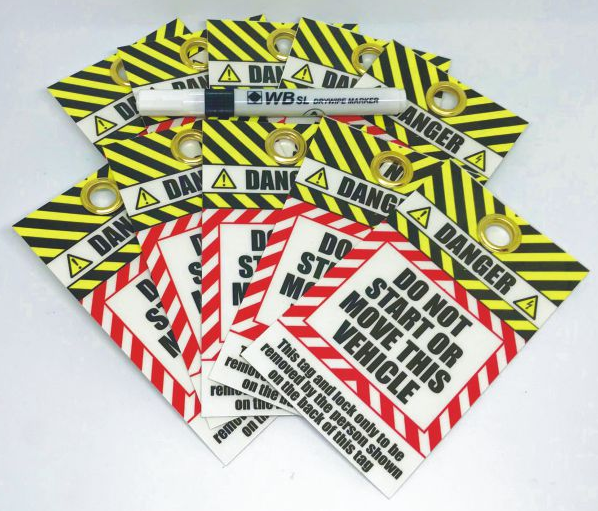

Lockout PADLOCK Tags for EHV (reusable)
Our Lockout Tags are designed to be used with Insulated Safety Lockout Padlocks (LOP4540) when securing the Isolation Port (MSD) Lockout Device (FLD4566) or Steering Wheel Warning Cover.
Manufactured from gloss laminated polyester to ensure durability and moisture resistance.
A 10mm brass eyelet ensures the Lockout Tags cannot be torn off.
High visibility warning printed in vibrant colour on one side, with “Technician In Charge” name panel on the reverse.
Supplied with a fine point, dry wipe, marker pen for the “Technician In Charge” to identify themselves. When used with the dry wipe marker the Lockout Tags can be reused many times.
Dimensions: 140 x 80mm
Pack Size: 5 tags with 1 x fine point, dry wipe, marker pen.

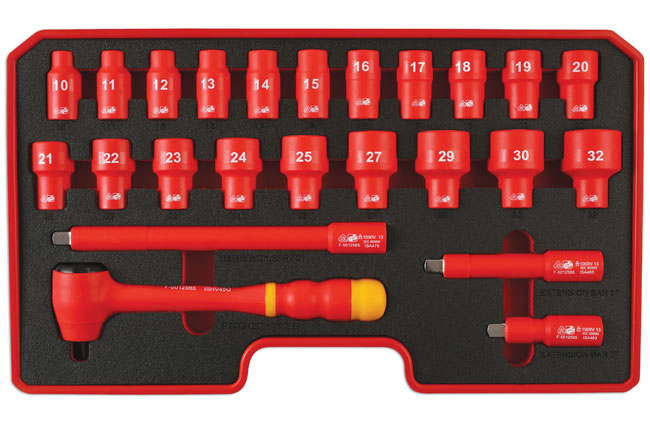

Insulated Socket Set ½inch Drive 24pc – VDE Certified
24 piece Insulated Socket Set (VDE Certified) 1/2 inch drive. Contains:
- 20 x Sockets: 10 to 25mm plus /27/29/30/32mm
- Quick release ratchet
- Extension bar 75mm
- Extension bar 125mm
- Extension bar 250mm

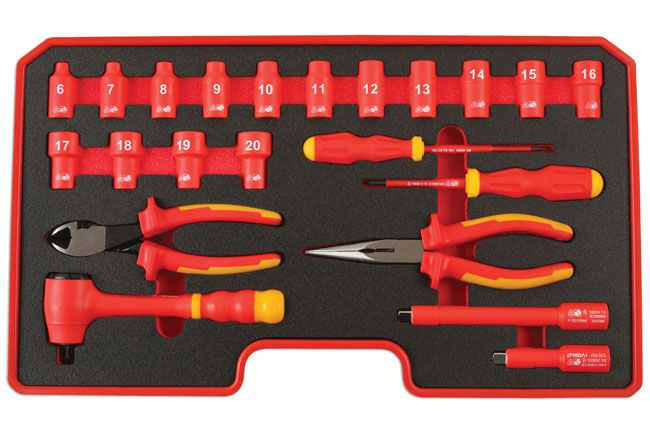

Insulated Tool Kit STARTER 3/8″ Drive – 22pc – VDE Certified
Insulated Tool Kit STARTER 3/8″ Drive – 22 piece – VDE Certified Contains:
- 15 x Sockets: 6 to 20mm.
- 3/8" D ratchet with quick release
- 2 x extension bars: 75 & 150mm
- 1 set long nose pliers
- 1 set pliers
- 2 x screwdrivers: Flat 3 x 100mm, Phillips Ph1 x 80mm; VDE certificated/GS approved.

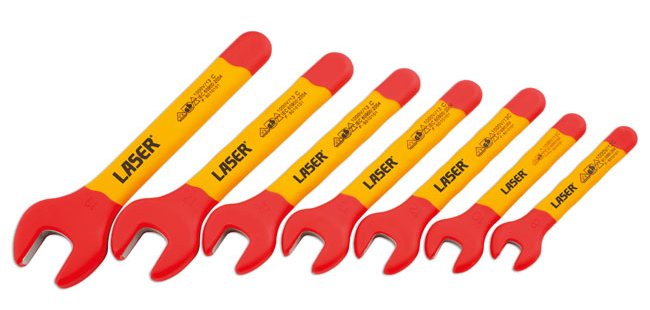

VDE Certified Insulated Open End Wrench Set 7pc
7 piece Insulated Open End Wrench Set.
TUV/GE and VDE certificated.
Sizes: 8, 10, 12, 13, 14, 17, 19mm.

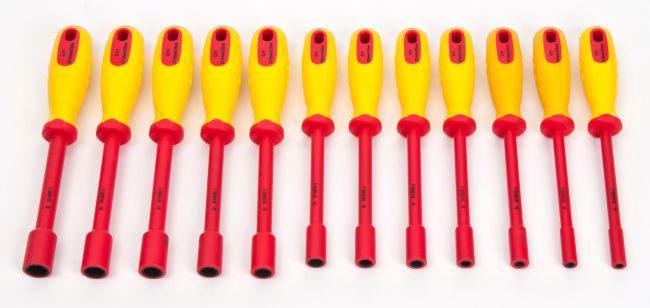

VDE Certified Insulated Nut Spinner Set 12pc
12 Piece Insulated Nut Spinner Set (VDE Certified)
Manufactured from Chrome Vanadium.
Sizes: 4 to 14mm in 1mm increments plus 5.5mm.
Tools can be purchased individually.

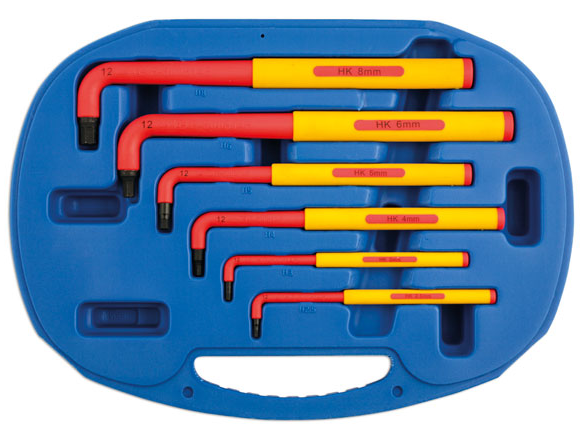

Insulated HEX Key Set Extra Long 6pc -VDE Certified
6 Piece Insulated Hex key set Extra Long (VDE Certified) tested to 1000volt.
Sizes: 2.5mm/3mm/4mm/5mm/6mm/8mm.

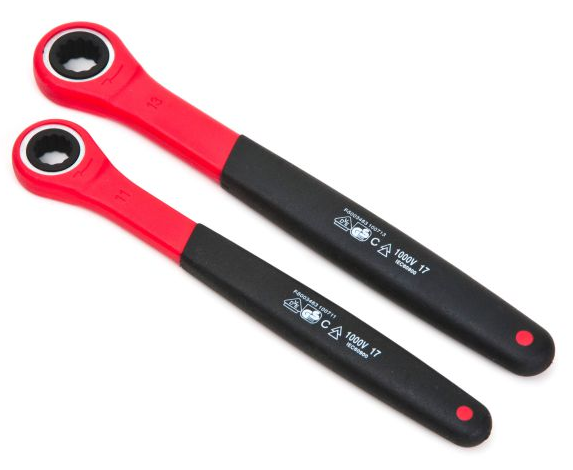

VDE Certified Insulated Ratchet Ring Spanner Set 2pc
VDE certified high quality ratchet ring spanners 11 and 13mm.

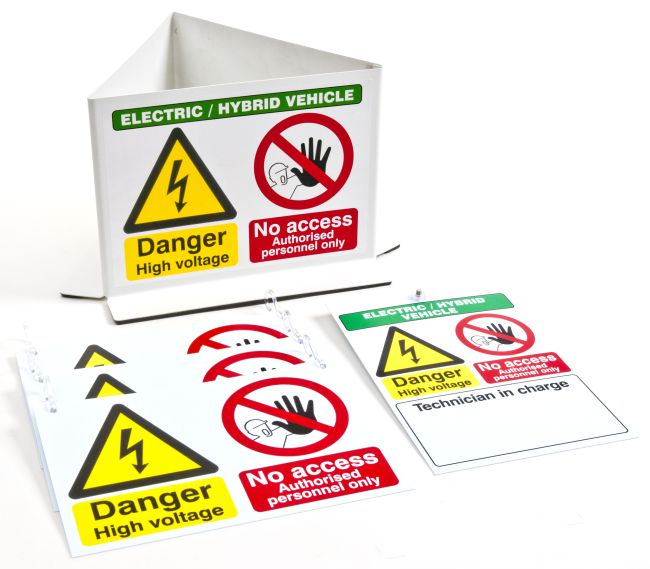

EHV Warning Sign Pack
Save over 10% when you purchase the EHV Warning Sign Pack. Contains:
- 1 x EVS7223 (Driver’s Door Window Sign)
- 1 x RTP7234 (Roof Top Warning Sign)
- 1 x BCS3277 (3 x Barrier Chain Signs).
