Educational petrol engine trainer with direct injection system (TSI) EURO 5 MVTSI01 AutoEDU

Fully functional system
4 cylinders in line, 1.4 TSI
Diagnosis through OBD 16 pole diagnostic socket
Open contacts for measuring system components and circuits
Fault code simulations

Price on Application

Technical specifications and function

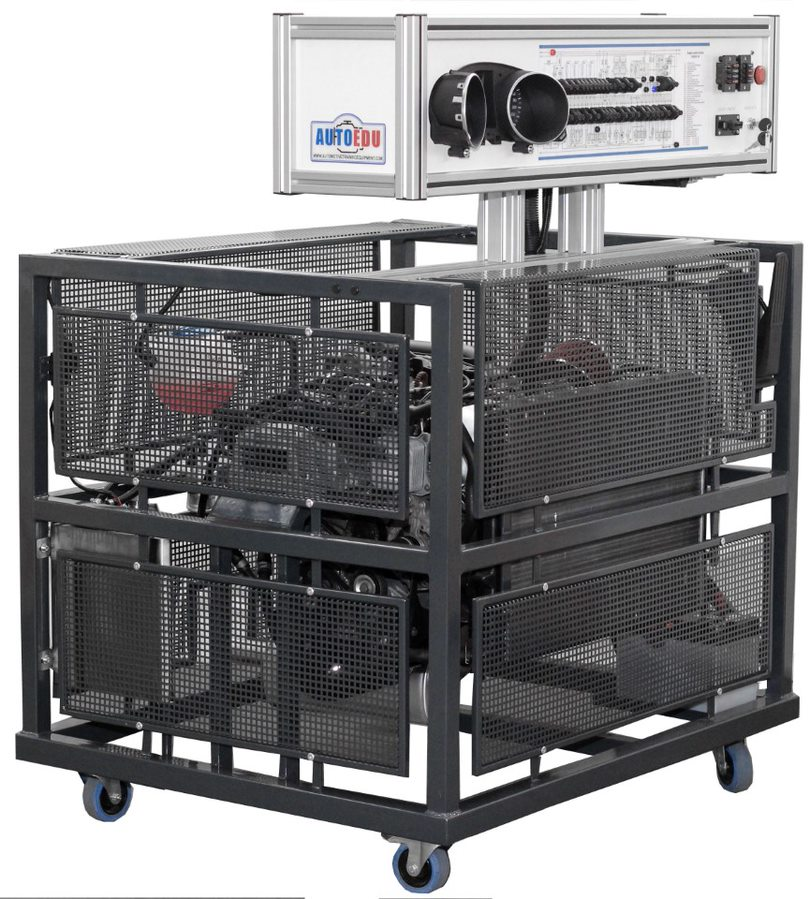

The educational functional engine model with direct petrol injection (TSI) system, instrument cluster, cooling system, power supply system, turbocharger, and the exhaust system;
Ability to measure the exhaust gas before and after the catalytic converter;
Completed with safety removable panels to protect against hot and rotating parts;
Electrical wiring diagram with built-in banana plug jumpers for measurements and simulation of system fault codes;
Ability to simulate more than 30 faults by disconnecting banana plug jumpers;
Engine with external components is clearly visible after removing safety panels. Easy access to the engine and its components for service and maintenance;
Integrated engine emergency stop button;
For technical and vocational automotive education and training;

Diagnostic and measurement

Oscillosope / multimeter

System’s parameters are measured by connecting to the banana connector;
Ability to measure electrical signal parameters of each system component (such as sensor or actuator);
Ability to measure high voltage circuit of the ignition system;

Control unit diagnosis

Diagnosis through OBD 16 – pin diagnostic connector
Electronic control unit (ECU) identification
Reading/erasing fault codes
Displaying the operating system parameters (live data)
Actuator test (depends on the control unit)
Throttle adaptation
Control unit coding/configuration

OTHER

The stand has a closed structure – internal wiring is not visible; Instrument cluster, measurement, and fault simulation panel is integrated into a closed aluminum frame construction
Dimensions approx. (HxLxW): 1550 x 1000 x 1200 mm
Nett weight approx.: 300 Kg
Made in EU
CE certificate
