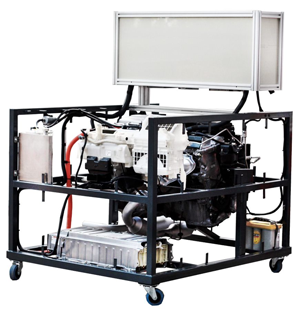

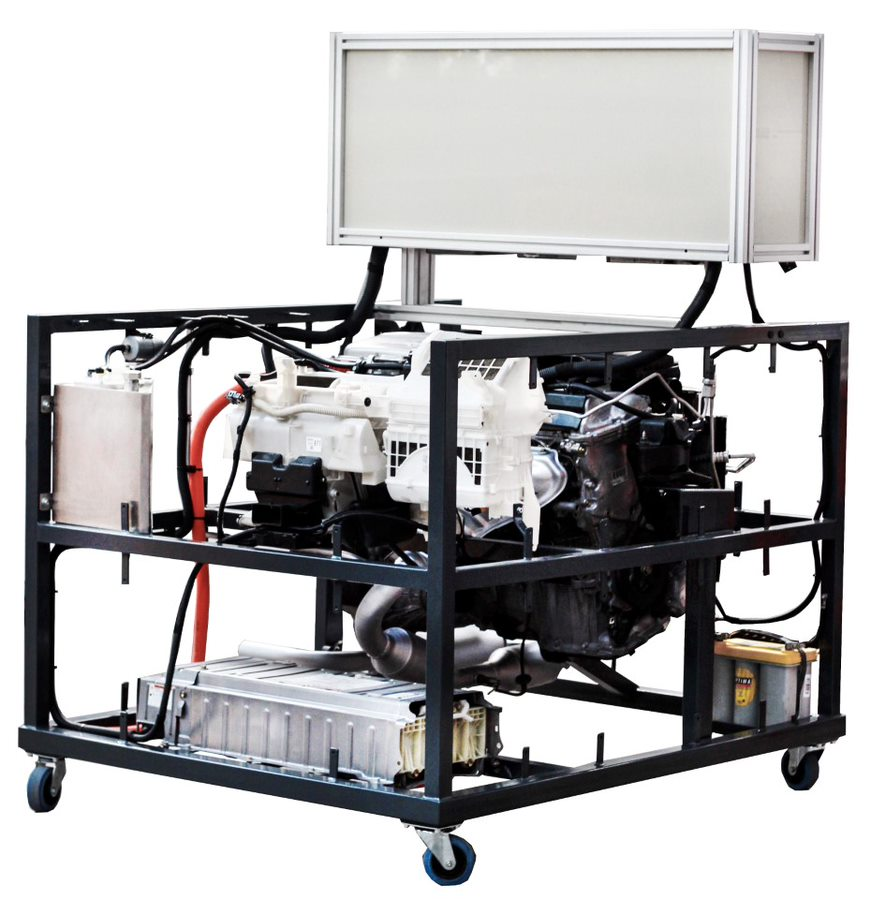

Educational hybrid engine trainer MVHY01 AutoEDU

Fully functional system
Diagnosis through OBD 16 pole diagnostic socket
Open contacts for measuring system components and circuits
Fault code simulations

Price on Application

Technical specifications and functions

The educational equipment, functional engine with petrol/electric TOYOTA HYBRID CONTROL SYSTEM – II (THS–II), automatic gearbox, climate control system, instrument cluster, cooling system, electric power supply system, CAN gateway network, exhaust system and etc.;
Electrical wiring diagram with built-in banana plug jumpers for measurements and simulation of system fault codes;
Ability to simulate, on didactic aid, more than 50 faults by disconnecting banana plug jumpers;
Ability to measure exhaust gas before and after the catalytic converter;
Completed with safety removable panels to protect against hot and rotating parts;
Engine with external components is clearly visible after removing safety panels. Easy access to the engine and its components for service and maintenance;
Fully functioning automatic climate control system with all most important components like electric AC compressor, R134a refrigerant, service couplers and etc.
Integrated emergency stop button;
Equipment for technical and vocational automotive education and training;

Diagnostic and measurement

Oscilloscope / Multimeter

System‘s parameters are measured by connecting to the banana plug jumpers;
Ability to measure electrical signal parameters of each system component (such as sensor or actuator);

Control Unit Diagnosis

Diagnosis through OBD (J1962) 16 – pin diagnostic connector;
Electronic control unit (ECU) identification;
Reading/erasing fault codes
Displaying the operating system parameters (live data)
Actuator test (depends on the control unit)
Control unit coding/configuration

The hybrid engine trainer contains these ECU’s which could be found and readout with the scan tool:

Hybrid Control System ECU
Power Source ECU
Engine ECU
Transmission Control ECU
Hybrid Vehicle Battery ECU
AC Climate Control ECU
Gateway ECU
Transponder Key ECU
Combination Meter ECU

OTHER

The educational equipment, hybrid engine trainer has a closed structure – internal wiring is not visible; Instrument cluster, measurement, and fault simulation panel is integrated into a closed aluminum frame construction
Dimensions approx. (HxLxW): 1750x1450x1200 mm
Nett weight approx.: 470 Kg
Made in EU
