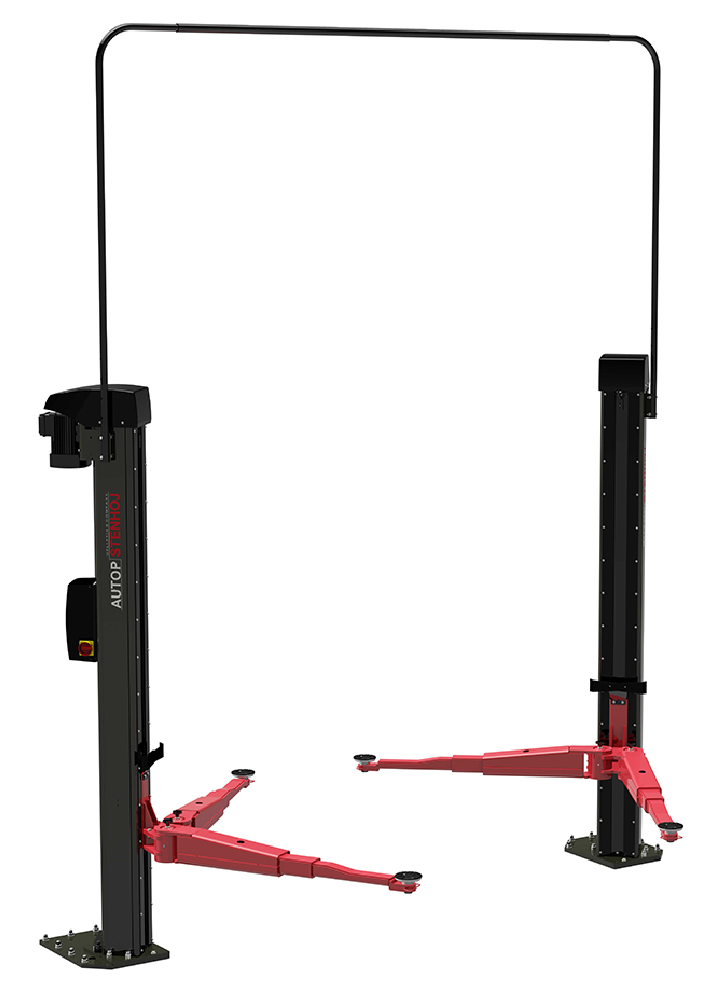

AutopStenhoj Maestro 2.32F – 2 Post Lift
AutopStenhoj Maestro 2.32F – 3.2 Tonne 2 Post Lift (Baseless)
The AUTOPSTENHOJ 099421 Maestro 2.32 F two post lift features asymmetrical posts which are very stable (welded not bent). Quality 3 phase motors power the screw and nut system contained within each post. An internal arm locking system on the arms ensures that 360 degree engagement is achieved.
This lift is suitable for all types of repair and maintenance work on small and large passenger cars, sports cars, 4×4 and vans (excl LWB).
ALL Stenhoj lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.
Stenhoj Lifts are manufactured in Denmark
Technical Specification
| Lifting capacity | 3.2 tonnes |
| Lifting / lowering time | 40 seconds / 40 seconds |
| Minimum height | 95 – 125mm |
| Maximum height | 1995mm – 2025mm |
| Front minimum / maximum arm length | 540mm / 850mm |
| Rear minimum / maximum arm length | 900mm / 1425mm |
| Motor size | 2 x 1.5kw |
| Power Requirements | 3 phase – 16a Isolator Required |
| Operation | Electro-mechanical |
Downloads
Call us now on 01823 328530 for more details
