Texa Axone 4 Mini Bike Package
Texa Axone 4 Mini Bike Package
The modern motorbike has equally complex electronic systems as today’s cars. Systems such as engine management, drivability and comfort systems all require quality diagnostic interrogation and fault location.

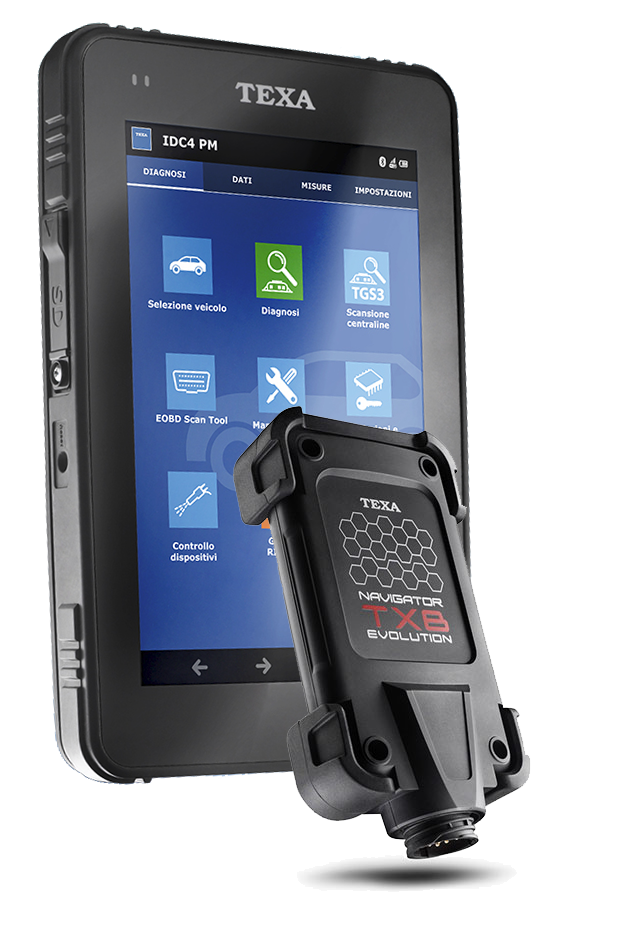

The Bike Mini Package comes complete with the standard cable, which connects to the well proven Navigator TXB Evolution interface, which in turn communicates to the Axone 4 Mini via Bluetooth.
The Axone 4 Mini has a 7” touch screen, robust and proven history which when used with the Texa IDC5 software to give a modern feel and easily navigated software platform.
Package Contents
- Axone 4 Mini Bike Including IDC5 Bike software
- Navigator TXBe vehicle interface
- Bike Main Cable (3151/AP01)
- Storage case
- 1st Year's Annual Bike Texpack
- 1st Year's Annual Bike Tex@Info
Note
Unit supplied with the standard cable only. Additional cables can be purchased by calling us on 01823 328531.
Texa Navigator TXB Evolution
NAVIGATOR TXB Evolution is the new tool that TEXA designed and developed specifically for the BIKE and MARINE diagnosis environments.
Its hardware features make it compatible with all the current protocols for both environments and its integrated 16-pin CPC connector allows the use of all the diagnostic cables. It is extremely powerful, equipped with a 16 MBit SRAM and an 8 GBit NAND FLASH storage memory; these are very important features as they allow the mechanic to manage the map files easily.
The supported CAN standards include the CAN single wire management and an extra CAN controller for the diagnosis on more than one network.
IDC5 Software - Full Speed Ahead
IDC5 is the latest generation of TEXA’s renowned operating system and another step forward to assist technicians. Thanks to major improvements in code, the new system is faster than ever and guarantees virtually instant communication with a vehicle’s control units.
The graphic interface of IDC5 is designed to resemble the latest consumer applications, simplifying and making the various steps in maintenance and repair procedures more intuitive.
The new “Interactive Wiring Diagrams” function lets you consult wiring diagrams using animations of a system’s devices and an interactive map generated to show signal flows to and from the control units. Another new function allows you to view and manage vehicle parameters.
These can be displayed in graphic form and can be filtered using text searches or by selecting those specifically required. Even the downloading of updates is faster in the new software.
Technical Specification
| Processor | CORTEX M3 STM32F103ZG 72 MHz, FLASH 1024 KBytes, SRAM 96 KBytes |
| SRAM Memory | 16 MBits organized in 1024K x 16 bits |
| NAND Flash memory | 8 GBit on an 8-bit bus |
| Vehicle Battery | 12 VDC and 24 VDC systems' management |
| External Power Supply | 8 ÷ 32 Volt |
| USB Communication | Virtual RS232 via USB 2.0 Device |
| Wireless Connection | Bluetooth class1 (30 m) |
| Electronic Switch | 2-way, 13 independent positions |
| Diagnostics Connector | 16-pin CPC |
| Visible Warnings | 1 green/red LED, 1 blue LED |
| Operating temperature | 0 ÷ 50 °C |
| Storage temperature | -20 ÷ 60 °C |
| Operating relative humidity | 10% ÷ 80% non-condensing |
| Weight | 215g |
| Protocols Supported |
|
| Standards |
|
Texa TXBe PC Bike Package
The TXBe PC Package enables customers to use their existing PC or laptop instead of the Axone Mini or Axone Nemo to control the IDC5 software.
Package Contents
- Navigator TXBe
- IDC5 plus bike software for PC
- Bike main cable
