Brain Bee AGC 9280 Automatic Gearbox Fluid Exchanger
Brain Bee AGC 9280 Automatic Gearbox Fluid Exchanger
With the increasing amount of Automatic transmission vehicles in the market the need to offer a professional service to exchange the gearbox oil is increasing dramatically. This presents a new opportunity for garages that want to offer a professional service and build an additional revenue stream.
The Brain Bee AGC range offers a sophisticated and accurate automated program with an automatic step by step procedure driven by a comprehensive vehicle database. The easy-to-use instructions guides you through the connections required and the procedure to complete using the adapters from the popular adapter kit.

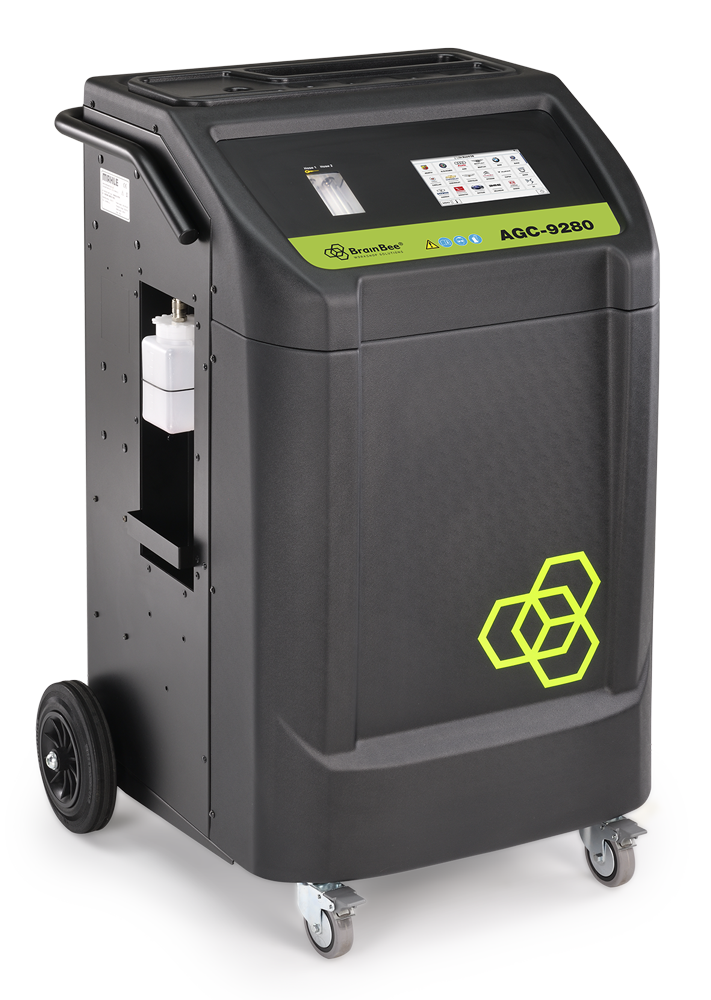

AGC-9280
New design for the Fluid Service AGC line, which thanks to the large Touch display and the adoption of a new graphical interface, allows the operator to make even easier and automatic any operation of the oil flow automatic transmission.
The database and the step-by-step process with images of connection points are integrated into the software.
The station allows the automatic detection of the direction of the oil flow in the transmission and prevents any damage to the system.
The WiFi connection allows constant updates and remote assistance (Re.Solve), as well as the ability to print the final report directly from your workshop PC (Nexus Print).
The Dipstick function allows to operate on sealed transmission systems, which can only be repaired via the oil filling hole. The ATF Remote Viewer App, the operator can check all the steps being executed. Interchangeable tank for quick replacement of oil types. Purity is guaranteed by the Zero-Cross contamination function (inner cleaning of circuitry and of external hoses).
Key Features
- Automated and manual procedures
- 7” colour touch screen display
- Comprehensive Vehicle database
- Powerful dual pump for max performance
- Step by step guided oil exchange procedure
- Oil change, flush and exchange programs
- Zero cross contamination
- Adapter kit 1 – 17 included.
Technical Data
| Control | Automatic, Software-assisted with 7“ Color Touch Display |
|---|---|
| New oil filter | 90µ mesh filter |
| Sight glasses | visual inspection of oil quality |
| Dipstick Function | Integrated with hoses ø6mm and ø10mm |
| Zero Cross Contamination | Circuit cleaning function after oil type change |
| Hoses | 2 x 3 m (service hoses), 1 x 1.5 m (for draining the waste oil) |
| BOOST function | Integrated |
| Service report print function | Via WiFi (NEXUS print) or USB export |
| Top grid | With A/T adapters tray |
| Oil pump | 2 X hydraulic oil pumps of 10 l/min each; PWM-controlled |
| Menu languages | 15 different languages |
| Power supply | 110/230 V, 50-60Hz |
| Service and Software Update | Via WiFi connection, Re.Solve function via WiFi |
| Smartphone App | ATF Remote Viewer |
| Dimensions/ weight (H x L x W) | 120 x 74 x 74 cm, 62 kg |
Brain Bee Adapter Kits
Kit 1 Adapters 1- 17 - Included with AGC
Contains the following adapters
| No. | Models | Variants | |
|---|---|---|---|
| 1 | BMW, VOLVO, MERCEDES-BENZ, AUDI, RENAULT, SAAB, FORD | Various Transmission Type |  |
| 2 | BMW, AUDI, RENAULT, SAAB, FORD, RANGE-ROVER, JAGUAR | Various Transmission Type |  |
| 3 | AUDI, VOLKSWAGEN, JEEP | Various Transmission Type |  |
| 4 | OPEL, SUBARU, MAZDA, CITROEN, RENAULT, ALFA ROMEO, LANCIA | Various Transmission Type |  |
| 5 | AUDI, BMW (8 SPEED), JAGUAR, LAND-ROVER, ALFA ROMEO, JEEP, IVECO | ZF |  |
| 5A | BMW (8 SPEED) D. 18mm | ZF |  |
| 6 | JEEP, FIAT, CHRYSLER, MERCEDES-BENZ, SUBARU | Various Transmission Type |  |
| 7 | AUDI, MERCEDES-BENZ, MITSUBISHI | Various Transmission Type |  |
| 8 | JAGUAR, MERCEDES BENZ, SSANGYONG | Various Transmission Type |  |
| 9 | JAGUAR, MERCEDES BENZ, MITSUBISHI, SSANGYONG | 5-SPEED |  |
| 10 | JAGUAR, FORD, MAZDA | 5-SPEED |  |
| 11 | VOLKSWAGEN, AUDI, MITSUBISHI | ZF |  |
| 12 | AUDI, VOLKSWAGEN, PORSCHE, LEXUS, MITSUBISHI | AISIN /ZF |  |
| 13 | VOLVO | Various Transmission Type |  |
| 14 | HYUNDAI, TOYOTA, KIA, MITSUBISHI, ISUZU | Various Transmission Type |  |
| 15 | PIPES FOR GENERAL USE Diameter 10 - 13 - 15 mm |  |
|
| 16 | AUDI, VOLKSWAGEN, SEAT, SKODA | DSG VW |  |
| 17 | JEEP, FIAT, ALFA ROMEO, OPEL, CITROEN | AISIN |  |
Kit 2 Adapters 18 - 33
Kit 2 is an optional accessory kit available to purchase separately.
Kit 2 contains the following adapters :
| No. | Models | Variants | |
|---|---|---|---|
| 18 | RENAULT, MITSUBISHI, NISSAN | Jatco / Multitronic |  |
| 19 | FIAT, JEEP, LAND-ROVER | ZF |  |
| 20 | TRANSMISSION DIPSTICK FORD, JEEP, DODGE |  |
|
| 21 | MERCEDES-BENZ, RENAULT | DSG Mercedes |  |
| 22 | FORD, RENAULT, PEUGEOT, VOLVO | POWERSHIFT |  |
| 23 | TOYOTA, SUZUKI, MAZDA | CVT |  |
| 24 | FIAT, CITROEN, PEUGEOT, RENAULT | 4-Speed |  |
| 25 | AUDI (Q7/A8), BMW | ZF / CVT |  |
| 26 | MITSUBISHI PAJERO | 4-Speed |  |
| 27 | AUDI | Various Transmission Type |  |
| 28 | GM | Various Transmission Type |  |
| 29 | JEEP, DODGE, OPEL, GM | 4-Speed |  |
| 30 | JEEP | 5-Speed |  |
| 31 | RENAULT | Various Transmission Type |  |
| 32 | QUICK COUPLER 90° (2 pcs) |  |
|
| 33 | Dipstick for MERCEDESBENZ, CHRYSLER |  |
Kit 3 Adapters 34 - 47
Kit 3 is an optional accessory kit available to purchase separately.
Kit 3 contains the following adapters :
| No. | Models | Variants | |
|---|---|---|---|
| 34 | JEEP, MITSUBISHI, MERCEDES GLK, GM, SUZUKI, TOYOTA | Various Transmission Type |  |
| 35 | VOLVO XC60, V60 | AISIN |  |
| 36 | MERCEDES-BENZ CLK, C, AMG | 5-Speed |  |
| 37 | CITROEN, PEUGEOT | Various Transmission Type |  |
| 38 | GM, FIAT, FORD, JEEP, CHRYSLER VOYAGER, SAAB, MERCEDES ML | Various Transmission Type |  |
| 39 | BMW-JAGUAR | Various Transmission Type |  |
| 40 | GM, DODGE RAM | Various Transmission Type |  |
| 41 | PEUGEOT, CITROEN, VW, FIAT DUCATO | ZF |  |
| 42 | VOLVO, MINI, BMW | AISIN |  |
| 43 | VOLVO | AISIN |  |
| 44 | MERCEDES, JEEP, FIAT | 9 Gtronic |  |
| 45 | PEUGEOT, CITROEN | AISIN |  |
| 46 | BMW X1 | Various Transmission Type |  |
| 47 | MERCEDES Level Tool | 9 Gtronic |  |
Kit 4 Adapters 48 - 60
Kit 4 is an optional accessory kit available to purchase separately.
Kit 4 contains the following adapters :
| No. | Models | Variants | |
|---|---|---|---|
| 48 | PEUGEOT | AISIN |  |
| 49 | JEEP FREEMONT | Various Transmission Type |  |
| 50 | RENAULT LAGUNA III, ESPACE IV | Various Transmission Type |  |
| 51 | AUDI | CVT |  |
| 52 | AUDI A8 | ZF |  |
| 53 | AUDI | DSG 7-Speed |  |
| 54 | MAZDA | 6-Speed |  |
| 55 | NISSAN JUKE (2011 - 2014) | CVT |  |
| 56 | NISSAN JUKE (2014 - 2019) | CVT |  |
| 57 | FIAT-CITROEN- PEUGEOT | AISIN |  |
| 58 | LAND ROVER-VOLVO | ZF |  |
| 59 | PEUGEOT-BMW-MINI | Various Transmission Type |  |
| 60 | PEUGEOT-VOLVO | AISIN |  |
